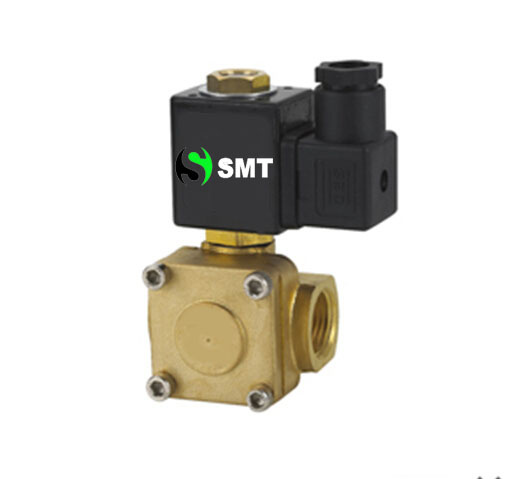

0927 Series diaphragm valve, G3 / 8 "~ G1" Details:
Suitable medium: Water, gas, oil
Medium temperature: -5 ~ 80 º C
Action by: Pilot
Working Pressure: Normally closed: 0.3 ~ 16kgf / cm2;
Body material: Brass (forging)
Diaphragm seals, diaphragm material: Nitrile rubber (NBR)
Coil Protection: IP65 plastic coil
| Model | 0927100 | 0927200 | 0927300 | 0927400 |
| Thread G | 3/8" | 1/2" | 3/4" | 1" |
| Orifice | mm | 15 | 15 | 25 | 25 |
| Cv Value | 4.5 | 4.5 | 14 | 14 |
| Length | mm | 54 | 54 | 88 | 88 |
| High | mm | 100 | 100 | 117 | 117 |
| Working Temperature | -5 ~80 |
| Working pressure | kgf/cm 2 | 0.3 ~16 |
| Rated Voltage | 220VAC/50HZ 12 VA; 110 VAC/50HZ 12VA; DC24 11 W; Voltage fluctuate : ± 10% other voltages can be customized |
Ningbo Hi-Tech Smart Pneumatic Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.
SMART PNEUMATIC take the lead in passing ISO9001 quality system certification and UKAS system certification in this industry and equip with a complete set equipment (CNC machine, data control lathe, and all kinds of testing machines) and checkout system. Under the joint effort of all our members, SMART PNEUMATIC has already established a strong foundation today.
SMART PNEUMATICS' Sprit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System. "
SMART PNEUMATIC believes our profession and efficiency will make your international business easier and quicker.
SMART PNEUMATIC hopes to work together with you, developing in parallel!
