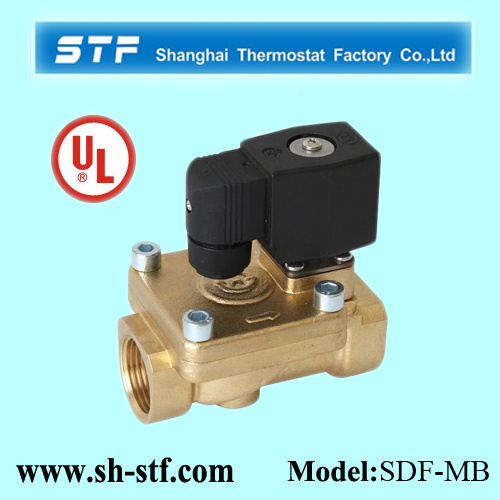

Home Valve Products 1 1/2" Electric Solenoid Water Valve

1 1/2" Electric Solenoid Water Valve

1 1/2
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union

Water Solenoid Valve
General Characteristics


Suitalbe for air, clean water, steam and <4E viscosity machine oil.
Coil type:
AC: 24V, 36V, 110V, 220V
DC: 12V, 24V
Temperature of medium -25ºC to 130ºC.
Max Working Pressure: 20bar.
Versions with UL/CUL approval can be supplied to order.

Model
Connection sizeOpening diff. pressure ( bar )Flow rate
Kv(m 3 /h)
Dimensions(mm)
LWH
SDF2DRc1/80 ~ 210.14313176
SDF3D0 ~ 160.21
SDF4D0 ~ 120.37313185
SDF2ZRc1/8,Rc1/4,Rc3/80 ~ 210.163030132
SDF3Z0 ~ 160.27
SDF8MRc1/40.3~161524589
SDF10MRc3/8,Rc1/21.8684587
SDF15MRc1/237952100
SDF20MRc3/458858105
SDF25MRc1910472116
SDF32MRc5/41412186129
SDF40MRc3/225152126158

Prod Model: SDF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Working Pressure: 20bar
Mopd: 16bar
Flow Rate: 9kv
Certificate: CE/UL/cUL/RoHS
Medium Temperature: -25-130 C
Coil Voltage: DC12V,24V; AC24V,36V,110V,220V
Dimension: 104*72*116
Connection Size: From 1/8 to 2 Inch
Water Solenoid Valve Type: Angle and Straight-Thru
Type: Pilot Operated
Connection Form: Thread
Valve Structure: Pilot Membrane Structure
Application: Household Usage
Power Supply: AC & DC
Shanghai Thermostat Factory Co., Ltd. is a professional manufacturer of refrigeration and air condition auto-control unit. We have more than 60 years history in this industry.

In 1985, STF cooperated with ALCO to produce T series expansion valves. We were the only Chinese company having the mixed infusing technology in expansion valve production. In 1993, Shanghai Johnson Controller Co., Ltd. Was established by us and Johnson to produce YK series controllers. In 1996, FDF-M diaphragm solenoid valve was certificated as National Grade New Product. As a high-tech enterprise, we get innovation fund from the government.

Our main products include solenoid valves, thermostatic expansion valves, sight glasses, filter dryers, pressure controls, pressure difference controls, temperature controls. We have gained approval for our quality control system in relation to international standard ISO9001: 2008. UL/cUL\CE & CQC approval can be supplied to order.

Products are widely used by Carrier, YORK, Trane, Dunhambush, McQuay, Mammoth, HANBELL, RefComp, Midea, Gree etc. And exported to America, Europe, Australia, Africa, Korea, Hong Kong, Philippine and Taiwan.

We stick to the development of specialization, give the best solution of localization and keep advanced in technology by continual innovation. We are always pursuing to be a leading enterprise in our area.
