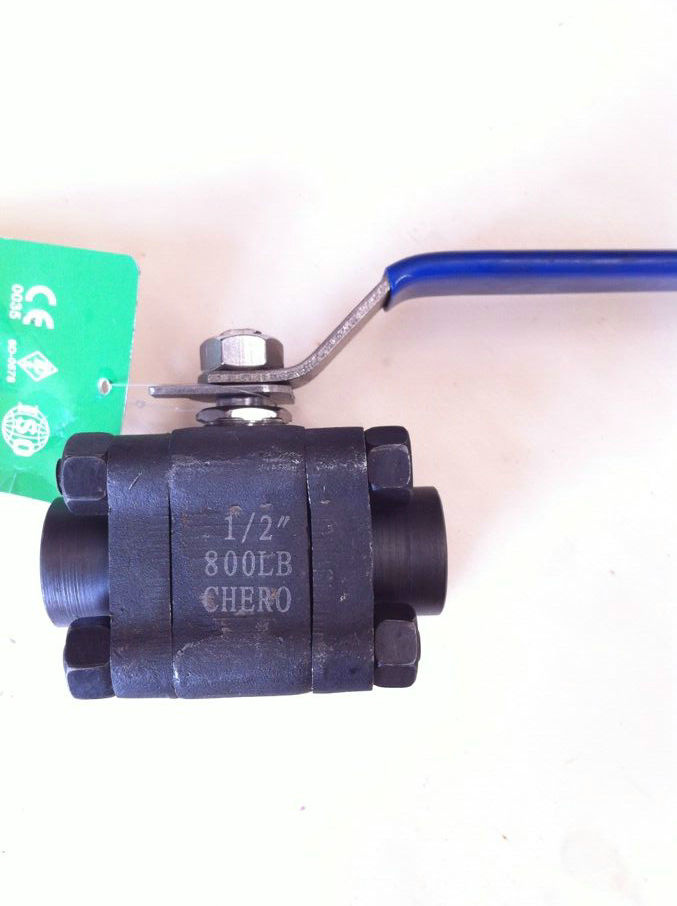

1/2" 800lb A105 Forged Steel Ball Valve (Q11F-800C-DN20)

1/2
Price: US $ 20/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
1/2" 800LB A105 Forged Steel Ball Valve(Q11F-800C-DN20)

Specifications
1. Size: 1/2"--4"
2. Pressure: 150LB--2500LB
3. Material: A105, LF2, F5, F11, F22, F304, F316, F304L, F316L, F347, F321, Monel

Designs
Full or reduced port design
Monoblock (barstock), two or three pieces split body design
Fire safe certification
Blowout-proof stem
Anti-static
Low emission control
Optional locking device
SO 5211 top flange
End Connections: RF, RTJ, BW, SW, NPT (2-pieces) - SW, NPT (3-pieces)

Dimensional Range
2-pieces: NPS 1/2''-4", pressure rating: 600~2500#
3-pieces: NPS 1/2''-2", pressure rating: 150~2500#

Other Information
For any valve inquiry, please specify the following infomation:
1. Valve type and design pressure/temperature
2. ANSI pressure class, Operating temperature, operating / differential pressure
3. Bore Size, pipe schedule ID / OD
4. Body and trim material
5. Medium, Flow rate Min. /Max.
6. Type of end connection
7. Actuation (manual, gear, actuator and type)
NameForged Steel Ball Valve
1. Size1/2--4"
2. Pressure150LB--2500LB
3. MaterialA105, LF2, F5, F11, F22, F304, F316, F304L, F316L, F347, F321, Monel
4. Design & Manufacture StandardBS5351: MSS SP-118
5. Inspection & TestAPI598; JB/T9092
6. Structure FeaturesBolted bonnet; three-pieces
7. MediaWater/ Oil/ Steam/ Gas, etc.
8.   End connectionNPT, SW, RF, RTJ, BW etc.
9.   OperationHandwheel, Gear, Electric, Manual, Pneumatic, Hydraulic

Prod Model: Q11F-800C-DN20
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/2''-4''
Media: Oil, Gas, Water, Steam, Acids
Pressure: Class 150-2500
Power: Manual or Actuated
Connection Form: Thread
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Application: Household Usage
Material: Forged Ball Valve
China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in NO. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.

The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.

The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
