Detailed Product Description
Connection End: | Ocket-Welding End, Threaded End, Flange End | Material: | A105 |
| Design And Manufacture: | API 602 | Type: | Forged |
| Port Size: | 1/2 -2" | Power: | Manual |
| Pressure: | High Pressure |

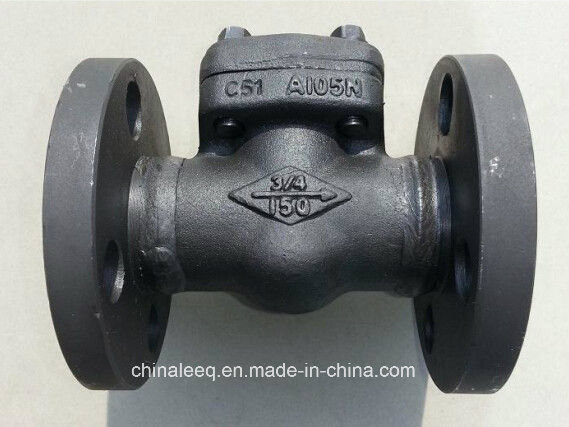

1/2 inch - 2 inch Forged Steel Check Valve , Class 150 / 800 / 900 / 1500
Quick Details
Standard:API, JIS, DIN, BS, GOST, ETC
Material: A105. LF2, F5, F11, F22, 304/L, 316/L, F347, F321 F51, Monel, Alloy 20etc
Port Size:1/2 -2"
Rating: Class15/800/900/1500
Connection:FLANGE, SW, NPT, BW, ETC.
Mediums:fresh water, sea water, air, steam, food, medicine, oils, sewage, etc
Standard or Nonstandard:Standard
Structure:Check
Connection :Flanged, BW, SW, ETC
Pressure:High Pressure
Power:Manual
Material:Forged
Temperature of Media:High Temperature
Customer Area:America, Europe, Africa, Asia, Middle East, and other overseas market.
Design Features
? Standard trim is API trim 8 for carbon steel valves, API trim 5 for chrome alloy valves, and API trim 10 for CF8M (T316) valves for optimal performance under normal conditions. Other trim materials are available on request.
? Seat faces lapped for smooth finish and superior sealing.
? Wall thickness per heavy wall API 600 requirements.
? Swivel disc for improved seat alignment and longer life.
? Each valve is shell and seat pressure tested per industry standard API 598.
? Check valves are suitable for service in horizontal line with cap vertical or in a vertical line with flow upward.
? Carrier Pin is confined within the body wall and is not accessible from the exterior, thus no side body penetrations, eliminating a common leak path, on classes 150 through 600.
? End Flanges have the following raised faces per ASME B16.5:
Classes 150-300: 1/16" (2mm).
Classes 600-1500: 1/4" (7mm).
? Each valve has a unique certification number that is traceable to the valve certification sheet which includes MTR data, pressure test, inspection result and certificate of conformance.
? Other available options as follows:
-Alternate valve materials such as chrome and stainless steel alloys
-Alternate trim materials
-Drain and other auxiliary connections
-NACE service
-Special cleaning for applications such as oxygen or chlorine
-Other options available as specified
Specification
Design & Manufacture Std.: API594, ANSIB16.34,API602, JISB2074-JISB2084, BS1868
Face to Face Std.:ASMEB16.10, API 602, JISB2002, DIN3202, EN558, BS2080
Test Standard: API598, API 602 JISB2003 ,BS 6755
Body Material :A105,F5,F11,F22,,304,304L,316,316L
Valve check and valve :API 598
Structural characteristic:B.B,liftcheck
Connection: RF/RTJ Flange, Butt Welded
1)Socket Weld End ANSI B16.11
2)Screwwd End ANSI B1.20.1
3)Flarge End ANSI B16.5
Main materials: WCB, low temperature steel, dual phase steel(F51F5), Titanium alloy, Aluminum bronze, INCONEL, SS304, 304L, 316, 316L, chrome-molybdenum steel, Monel (400/500), 20#alloy, Hayne's alloy etc. design standard:API594,API6D,BS1868 Face to face: API594,API6D,ASME 16.10 . Grade of pressure-temperature: ASNI 16.34 Test &inspection: API6D,API598 Flange: ASME 16.5, API605, ASME B 16.47.
Application:
Cold storage, chemical industry, petrochemical industry, machinery, urban construction, fire fighting, water treatment, metallurgy, electric power etc
To avoid any mistake and make a suit solution for your enquiry , please kindly specify the following informaiton:
Design standard.
Connection standard .
Bore Size, pipe schedule ID / OD
Body material .
Trim (Material for inside parts).
Connection End type.
Actuation (manual, gear, actuator and type)
Medium & Component. Flow rate Min./Max.
ANSI pressure class, Operating temperature, operating / differential pressure Ambient temperature range Corrosion considerations.
Bore Size, pipe schedule ID / OD
Application Descripetion.
Document requirement , such as : Mill certificate , Material Certificate ,Test Report ,etc...
Test & Inspection requirement , Such as : Hydraulic test , Material Analysis , Chemical compoent analysis ,etc
