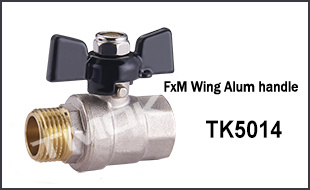

1/2 Inch Brass All Valve with High Pressure


Found in 1989,CHUNHONG GROUP is comprised of Taizhou Chunhong Cooper

Industry Co.,Ltd. and Yuhuan Oujia Valve Co.,Ltd. Our factory is located in Yuhuan

County,Zhejiang ,China,covering an area of  20000 square meters.We have

foucused on the manufacturer and R&D of Brass Valves &Pipe Fitting for more than

25 years. Our valves have been certified by GOST ,CE,ACS,WARS,ect.Our

products have been exported to EU,Russia,Middle East,Southeast Asia,North &

Latin America,ect. We are able to supply one stop ODM&OEM Service to global

customers .

TMOK is our registerated  brand for OBM Marketing;

TMOK has hundreads of agents in every province in China.

Due to our steady quality and service ,TMOK wins a global recognition.

Foreign Partners and Agents are under recruitment .

Welcome global friends to visit our factory and negotiate win-win cooperations

with TMOK TEAM.


Material composition table

Cu	Pb	Fe	Sn	Al	Ni	Mn	Si	Zn	Bi	Ag	Cr	As
57.5034	1.9242	0.7019	0.6057	0.3543	0.4397	0.0339	0.0923	38.2601	0.0004	0.031	0.0006	0.0021
Sb	Co	Mg	P	S
0.0398	0.0089	0.0006	0.0002	0.0011

Ball valve installation&application instruction
1.Range of application
The ball valve is mainly used for cutting off, distributing and changing the direction of the flow medium in the pipeline. To prolong the service life of the ball valve, full open and full close are highly suggested.

2.Main technical parameters of the product
1,we select high quality cooper material and apply hot forging process in the production process.
2,The main working medium are water,oil,gas,etc.
3.working temperature range from -10ºCto 120ºC
4.each nominal working pressure of our ball valve are 2.5Mpa,2.0Mpa and 1.6Mpa

3.Installation manual
1, For pipe thread connection type ball valve,we should make sure the pipe being vertical against the end surface of the valve body when tighten the connection part.our special warning is that we should only wrench the octagonal at the same end of body instead of the other side to avoid deformation so as to affect its normal open function.
2,For internal thread type ball valve,we should control the length of the external thread at the pipe end in case deformation of the valve body caused by the external thread's aqueezing the surface of the internal thread so as to affect leakproofness
3.When connecting the pipe thread type ball valve with pipe thread,the internal thread can be either tapered pipe thread or  cylindrical pipe thread,but the external thread must be tapered pipe thread,otherwise it will cause leakage due to loose  connection.
4.When installing the pipe thread type ball valve,the sealing material must be clean.
5.Such obstacles as wall,coupling nut and pipe should not be placed in the open/close range .
6.When the ball valve handle is parallel to the body,it is open,otherwise,it is close.
7.The working medium should not contain particles,corrosive gas or liquid
8.PP-R ball valve installation instruction:
1.Remove the coupling nut,PP-R pipe and O-ring from the valve body
2.Pull the coupling nut on the pipe in the original direction
3.join the PP-R flange with PP-R pipe with a hot fusion machine.Pull  the O-ring in the PP-R flange when it cooled down.Last,tighten the coupling nut with valve body.






























brass ball valve:

DN	SIZE	A	B	C	D
15	1/2"	52.5	46	87.5	15
20	3/4"	60.5	49	87.5	20
25	1"	69.5	58	104	25
32	1 1/4"	78	69.5	136	32
40	1 1/2"	91	76.5	150	37
50	2"	104	84.5	150	47
65	2 1/2"	123	115	210	57
80	3"	155	132	210	68
100	4"	178	148	290	84

                                         pressure and temperature limitations for PN rated valve
