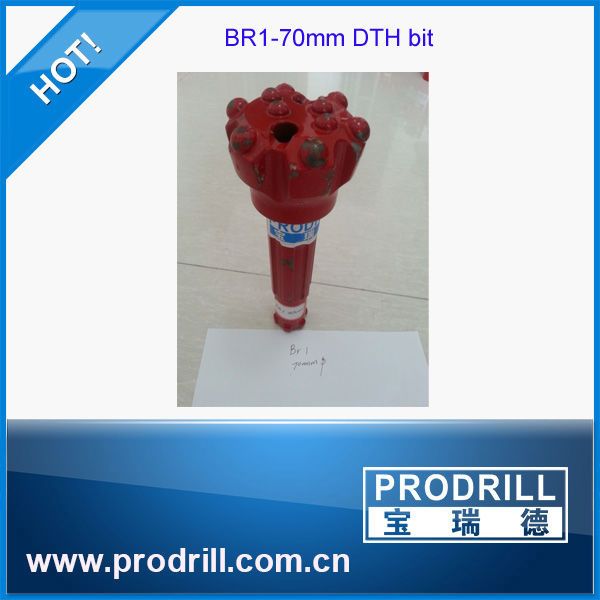

BR1, BR2, BR3 is low pressure and mdedium pressure hammer using BR series bits.
It is valveless hammer, especially suitable for quarrying.
BR1 hammer technical data:
Length(without bits): 880mm
Weight(without bits): 14.5kg
External diameter: 62mm
Shank: Bulroc BR2
Hole range: 70mm-90mm
Connection thread: RD50 BOX
Working pressure: 7-17.5 bar
Impact rate ar 14 bar: 25Hz
Recmmended rotation speed: 25-40r/min
Air consumption:
At 7 bar: 2.5m3/min
At 10 bar: 4m3/min
At 14 bar: 5m3/min
We can prodive DTH bits for BR2 hammer diameter: 70mm, 76mm, 80mm, 85mm, 90mm customers' design is avaible.
We export DTH hammer and bits for almost thirty years.
DTH Hammer
Designed to suit high pressure drilling rigs.
» Water well drilling
» Record breaking penetration.
» Bench drilling
» Exploring Civil Engineering Applications
» Lowest cost per foot drilled.
» Mining /Mineral Exploration
» Simple & robust design. Exploring Civil Engineering Applications
» Oil well drilling
» Foot Valve not required in the bit.
» Longer parts life.
Specification:
| 2 inches DTH hammer button bits |
| Shank style | Diameter in mm | Flushing holes No. | Gauge buttons | Face buttons | Approx weight |
BR2 | 76 | 3 | 6*13mm | 3*13mm | 3.6kg |
| 80 | 3 | 6*14mm | 3*13mm | 4.0kg |
| 90 | 3 | 6*14mm | 5*12mm | 4.2kg |
| 3 inches DTH hammer button bits |
| Shank style | Diameter in mm | Flushing holes No. | Gauge buttons | Face buttons | Approx. weight |
BR3 | 85 | 2 | 6*13mm | 4*12mm | 3.8kg |
| 90 | 2 | 7*13mm | 5*12mm | 4.0kg |
| 95 | 2 | 7*13mm | 6*12mm | 4.3kg |
| 100 | 2 | 7*13mm | 6*12mm | 4.8kg |
| 105 | 2 | 8*12mm | 7*12mm | 5.2kg |
