1/2" Pneumatic Diaphragm Valve Welded Connection

1/2
Price: US $ 48/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

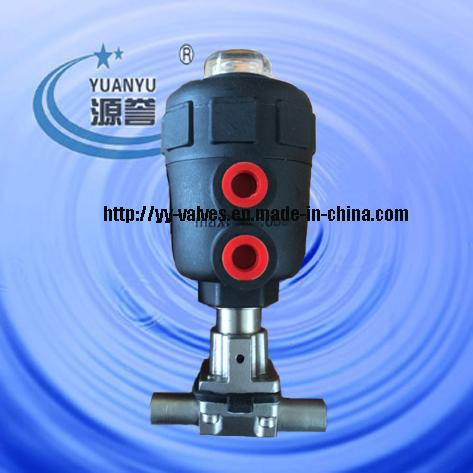

1/2" pneumatic diaphragm valve welded connection


1)Material quality: SUS316L, AISI316L
2)Working pressure: 10bar
3)Working temperature: 150 degree.
4)Standard: DIN, 3A, SMS, ISO/IDF, BS/RJT, ASME/BPE etc
5)Connection: Clamped, welded, flanged can be chosen.
6)Material of seal: EPDM+PTFE FDA: 177.26600/VMQ
7)Size: DN15-65 DN6-DN10 12.7MM
8)Power: Pneumatic actuator(plastic/stainless steel actuator)
9)Three drive forms: Normally closed, normally opened and opened & closed by two air flues separately.

10)Working principle: Remote-controlled operation by the driving gear or manual operation by the handle

CE Certificate can be provided.
Prod Model: YYDV-321
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:1/2": Material: 316L
Material: Stainless Steel
Structure: Through Way Diaphragm Valve
Connection: Welded Diaphragm Valve
Actuator: Pneumatic
Standard: DIN
Wenzhou Yuanyu Mechanical Co., Ltd. is the professional manufacturer that producing high-precision sanitary valves, pipe- fittings and fluid equipment. Such as stainless steel sanitary butterfly valve, check valve, diaphragm valve, ball valve, plug valve, pipe-fittings(elbow, tee, ferrule, clamp), stainer, cleaning ball, sanitary pump, and so on.

The products are widely applied in dairy, beer, food, Pharmaceutical, beverage, cosmetics and chemical industry etc areas.

All our products are made from stainless steel 304, 316L And by CNC machine, strictly according to DIN, SMS, ISO, IDF, 3A RJT, DS, BS, BPE industrial standard request.

Great quality and more than ten year experience get many domestic customers' Recognition. We have been supplier of Snowflake beer and Panda group for more than 5 years.

We have exported our products in the international market for 8 years.

In order to meet the demand of expanding market constantly and satisfy the requirements of customers"high quality, low price", yuanyu promotes its quality constantly based on the advanced management system, first-class quality and service, making "yuanyu"become a satisfactory cooperation partner domestically and internationally.
