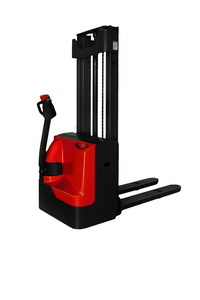

1.2t Side Type Electric Stacker
Safety:
1. Emergency plug mounted at up-right side on truck frame, all power can be cut off by simply pulling emergency plug and truck stops immediately.
2. Large and high strength bearing wheels, improves the truck stability and across ability.
3. Explosion-proof valve installed under lifting, prevent the mast go down quickly if the oil pipe broken.
4. Long hnadle, pedal preventing the operator's foot into the bottom of the truck, these can improve the safety of operation.
Characteristics:
1. Emergency reversing device.
2. Built-in pressure relief valve protects the trucks from overloads.
3. Emergency power disconnect.
4. Low speed switch in the handle.
5. Stepless speed control.
6. The rubber platform and safety guides increase operator safety and reduce fatigue, and they can be folded away when not in use
| Characteristics |
| 1.1 | Manufacturer |
| HYTGER |
| 1.2 | Model designation |
| ES12-12WA |
| 1.3 | Drive unit |
| Battery |
| 1.4 | Operator type |
| Walkie |
| 1.5 | Load capacity | Q (kg) | 1200 |
| 1.6 | Load center | c (mm) | 600 |
| 1.8 | Load distance | x (mm) | 700 |
| 1.9 | Wheelbase | y (mm) | 1225 |
| Weights |
| 2.1 | Service weight (Incl. battery) | kg | 1050 |
| 2.2 | Axle loading,laden operator/load side | kg | 750/1500 |
| 2.3 | Axle loading,unladen operator/load side | kg | 715/335 |
| Wheels, Chassis |
| 3.1 | Tyre type |
| PU/ PU |
| 3.2 | Tyre size, operator side | mm | 230× 75 |
| 3.3 | Tyre size, load side | mm | 85× 70 |
| 3.4 | Balance wheels (dimensions) | mm | 85× 50 |
| 3.5 | Wheels, number operator/load side (x=drive wheels) |
| 1x+ 1/ 2 |
| 3.6 | Tread, operator side | b10(mm) | 538 |
| 3.7 | Tread, load side | b11(mm) | 380 |
| Dimensions |
| 4.2 | Height, mast lowered | h1(mm) | 1970 |
| 4.3 | Free lift | h2(mm) | 100 |
| 4.4 | Lift height | h3(mm) | 3000 |
| 4.5 | Height, mast extended | h4(mm) | 3529 |
| 4.9 | Height of tiller arm in operating position, min/ max | h14(mm) | 825/ 1225 |
| 4.15 | Fork height, lowered | h13(mm) | 85 |
| 4.19 | Overall length | l1(mm) | 1826 |
| 4.20 | Length to face of forks | l2(mm) | 676 |
| 4.21 | Overall width | b1/ b2(mm) | 800 |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 60/ 170/ 1150 |
| 4.25 | Outside fork width, minimum/ maximum | b5(mm) | 550 |
| 4.32 | Ground clearance | m2(mm) | 30 |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 2370 |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2303 |
| 4.35 | Outer turning radius | Wa (mm) | 1463 |
| Performance |
| 5.1 | Travel speed, laden/ unladen | km/ h | 5.2/5.6 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.10/0.16 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.19/0.18 |
| 5.8 | Maximum gradeability, laden/ unladen S25 min. | % | 8/ 16 |
| 5.10 | Service brake |
| Electromagnetic |
| Drive |
| 6.1 | Drive motor rating S260 min. | kW | 1.1 |
| 6.2 | Lift motor rating at S315% | kW | 2.2 |
| 6.4 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/ 210 |
| 6.5 | Battery weight (with box) | kg | 200 |
| Battery compartment dimensions l/ w/ h | mm | 750/175/555 |
| Battery type |
| Industry battery |
| Others |
| 8.1 | Type of drive control |
| AC ZAPI |
| 8.4 | Sound level at operator's ear | dB (A) | 74 |
