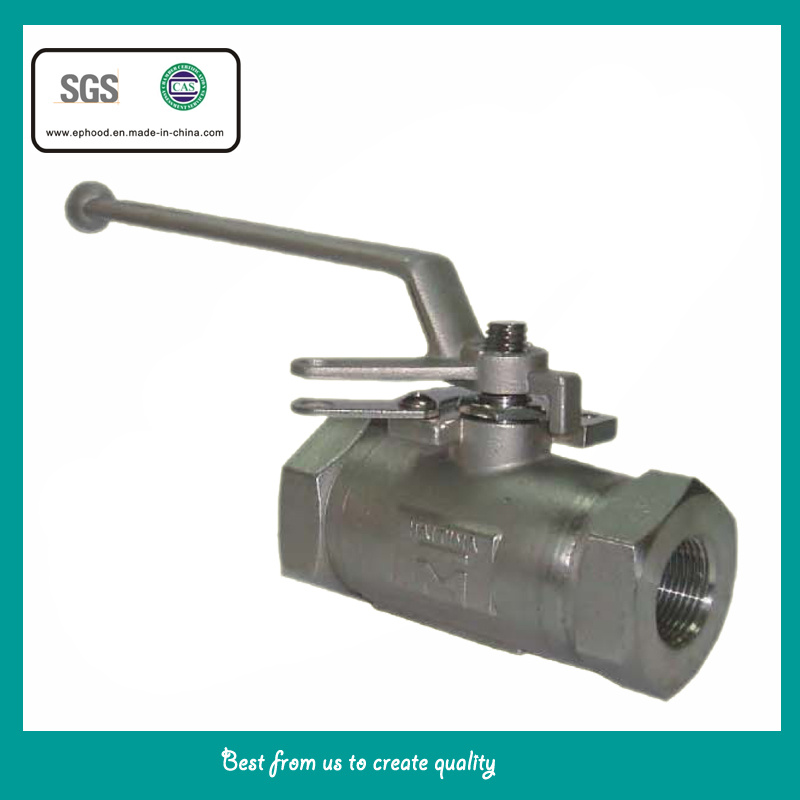

High puity ball valve:
Full port: 1/4" -2"
W. P.: 1000 WOG
W. T: - 20 centi degree - 200 centi degree
Investment casting
Blow- out proof stem
Live loading design
Anti- Static device (option)
Locking device
ISO 5211direct mounting pad
Seal weld ends
ASME B 16.34 Wall thickness
NACE MR0175
API607 fire safe approved
Thread type: ASME B 1.20.1 (NPT)
DIN 2999 & BS21
ISO 288 /1 & ISO 7/1
|
ITEM |
PART |
MATERIAL |
|
1 |
BODY |
ASTM A351-CF8M / ASTM A216 - WCB |
|
2 |
CAP |
|
3 |
BALL |
ASTM A351-CF8M |
|
4 |
STEM |
ASTM A276 - 316 |
|
5 |
GLAND NUT |
AISI 304 |
|
6 |
SEAT |
PEEK |
|
7 |
SEAL |
GRAPHITE |
|
8 |
PACKING |
GRAPHITE |
|
9 |
THRUST WASHER |
CIFE |
|
10 |
HANDLE |
AISI 304 |
|
11 |
LOCKING PAD |
AISI 304 |
We are valve manufacturer specialized in the industrial valves utilized in the server application environment against high temperature, high pressure, high corrosive and low temperature or cryogenic application ranging from petrochemical, offshore, chemical, gas, power plant, shipyard to long distance pipeline and pharmacy or other industries. Valve types vary from ball valve, globe valve, check valve, gate valve, butterfly valve to plug valve, and also from tank bottom valve, sampling valve, double block & bleed valve, strainer to sight glass.
Valve material are available from Titanium, Nickel alloy, Zirconium, Nickel-Aluminum-Bronze, (Super) Duplex to alloy 20#, 904L, 310S, 321, 347 or other anti-corrosive alloys. With emphasis on quality consistency and innovative design, we gradually turn to be reliable business partner for plenty engineering companies and end users all over the world.
