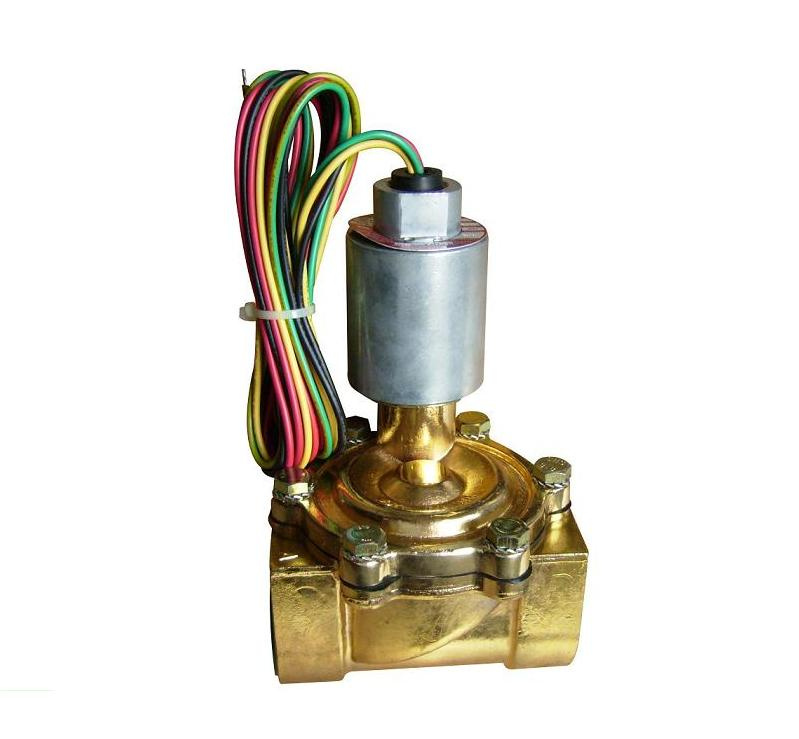

D40 1.5" explosion proof solenoid valve ( ATEx ) is mounted on fuel dispensers, the body of this electromagnetic valve is shaped by adopting brass forging, having the characteristics and use as follows:
(1). compact structure, beautiful appearance, leakage quantity is zero.
(2). having three grades of big flow, small flow and close, high precision of oil feeding quantity.
(3). there are six kinds of rated voltage, which is AC220V,AC230V,AC115V, AC110V, DC12V,DC24V.
(4). it's use in computerized dispenser.
Technical performance:
Medium: Gasoline,Kerosene, Diesel
Working Pressure : 0.035MPa~0.35MPa
Flow: 5~250L/min
Working Voltage: AC220V AC110V DC24V DC12V
Diameter 40mm 1.5"
| Technical performance: | |
| Medium | Gasoline, Kerosene, Diesel |
| Working Pressure | 0.035MPa ~ 0.35MPa |
| Flow | 5 ~ 250L /min |
| Working Voltage | AC220V AC110V DC24V DC12V |
| Diameter | 4 0mm 1.5 " |
| Prod Model: | D40 1.5" |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dia.: | 1.5" |
| Mat'l: | Brass |
| Pkgs: | 10PCS/CTN |
| Pkgs Dim.: | 750mm X 310mm X 280mm |
| Est.G.W.: | 38kg |
| Type: | Direct Acting |
| Connection Form: | Thread |
| Valve Structure: | Direct-Acting Piston Structure |
| Power Supply: | AC Solenoid Valve |
| Application: | Industrial Usage |
