SIZE:DN40-DN1200(1.5``~48``)
Medium:water,sewage,food,oil,gas and so on
Working pressure:10bar/16bar
Test pressure:
Shell:15bar/24bar
Seal:11bar/17.6bar
1.Small in size and light in weight, easy to install. It can be mounted wherever needed, suitable for various actuators.

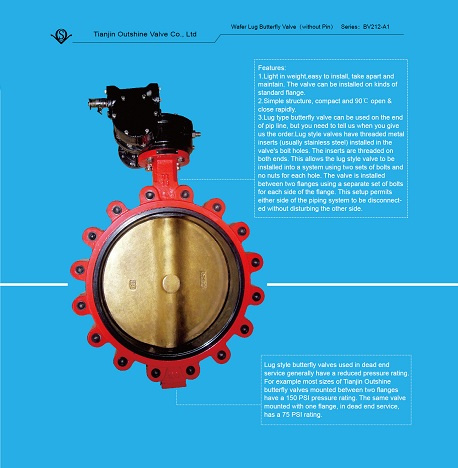

2.Lug type butterfly valve can be used on the end of the pipeline.
3.Lug type butterfly valve has threaded metal inserts(usually stainless steel) installed in the valve`s bolt holes.
4.The inserts are threaded on both ends,which allows this lug style valve to be installed into a system using two sets of bolts and no nuts for each hole.
5. The valve is installed between two flanges using a separate set of bolts for each side of the flange.
6.This setup permits either side fo the piping system to be disconnected without disturbing the other side.
7.When used in the end of pipeline service,it has a reduced pressure rating.E,g,it rates 150 PSI when mounted between two flanges,while it rates just 75 PSI when mounted in the end of pipeline service.
Tianjin Outshine Valve Co., Ltd. is located in the hometown of butterfly valve--Tianjin, China. We are specialized in designing and manufacturing Resilient seated Wafer butterfly valve. Dual plate wafer check valve, F4/F5 Gate valve, Knife gate valve. etc.
OSV is dedicated to designing, manufacturing and marketing valves and owns one stop service including molding. Casting. Machining, assembling, testing, packing and shipping. In this way, we can save cost and control the quality strictly and improve work efficiency. We started our valve business earlier in the year of 1997 and then have been growing towards mature.
OSV has obtained ISO9001 and CE certificates, our products have been well exported to North America, Eastern Europe, Middle East, France, Russia, Germany, Italy, Poland, Australia, etc.
We sincerely welcome you to visit our factory and welcome your suggestions and we are looking forward to building strategic partnership and create more economic values with you.
