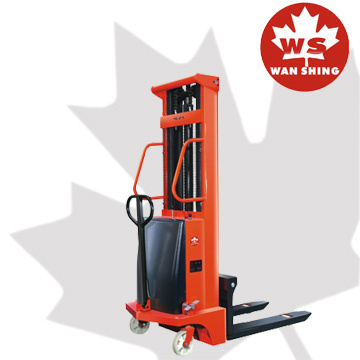

CTD Semi-electric stacker is an economical choice for a variety of basic material handling needs, which is a half electric forklift for load and unload and short- distance transportation. There is no noise and pollution. The malfunction rate is low.

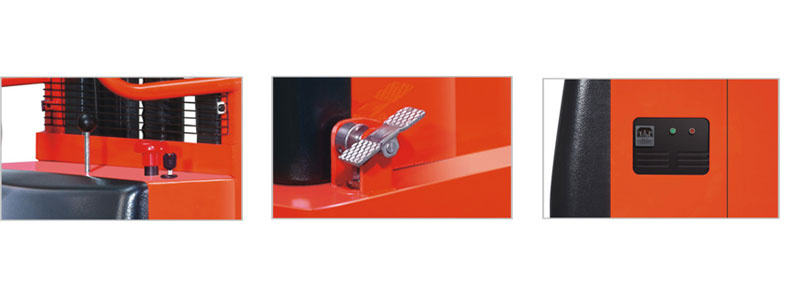

Simple,reliable hydraulics providing access to facilitate service of pump and battery.
Foot operated mechanical parking brake ensures safe parking in any situation.
The battery operated pump is mounted directly on the hydraulic tank.The lifting and lowering functions are controlled by a valve with built-in over pressure function, which prevents overload. A lowering brake valve ensures that the maximum lowering speed is not exceeded at full load.
|
Model |
|
CTD1016 |
CTD1020 |
CTD1025 |
|
Capacity |
kg |
1000 |
|
Max lifting height |
mm |
1600 |
2000 |
2500 |
|
Fork length |
mm |
1000 |
|
Min fork height |
mm |
900 |
|
Load center |
mm |
500 |
|
Voltage |
mm |
AC220V |
|
Motor power |
mm |
1.6kw |
|
Outer width of front legs |
mm |
635 |
|
Inner width of legs |
mm |
395 |
|
Adujstable width of fork |
mm |
360-690 |
|
Rear wheel size |
mm |
φ 180X50 |
|
Front wheel size |
mm |
φ 80X70 |
|
Self weight |
kg |
312 |
325 |
340 |
|
Extended height |
m |
2080 |
1580 |
1830 |
|
closed height |
mm |
2080 |
2500 |
3000 |
Wansheng Engineering Machinery & Equipment Co., Ltd. Are founded in 1997, located in Guangzhou. We are specialized in supplying material handling equipments and construction machinery.
Our main products include: 2-10T Diesel Forklift, 2-4T Gasoline/Natural Gas Forklift, 1-3.5T Electric Forklift, 1-2T Reach Electric Forklift; Hand Pallet Truck, Electric Pallet Truck, Hand Stacker, Electric Stacker, forklift parts.
Basing on insisting of the principle "Quality first and service foremost", our products are popular all over the world. Especially, to ensure the excellent performance and long life, we adopt Japanese technology and Japanese imported critical components, which greatly win us reliance and praise from clients.
We commit ourselves to provide our clients best solutions to improve material handing efficiency and reduce labour cost, "Quality First and Service Foremost "is our mission. We sincerely hope to cooperate with customers all over the world.
