Found in 1989,CHUNHONG GROUP is comprised of Taizhou Chunhong Cooper
Industry Co.,Ltd. and Yuhuan Oujia Valve Co.,Ltd. Our factory is located in Yuhuan
County,Zhejiang ,China,covering an area of 20000 square meters.We have
foucused on the manufacturer and R&D of Brass Valves &Pipe Fitting for more than
25 years. Our valves have been certified by GOST ,CE,ACS,WARS,ect.Our
products have been exported to EU,Russia,Middle East,Southeast Asia,North &
Latin America,ect. We are able to supply one stop ODM&OEM Service to global
customers .
TMOK is our registerated brand for OBM Marketing;
TMOK has hundreads of agents in every province in China.
Due to our steady quality and service ,TMOK wins a global recognition.
Foreign Partners and Agents are under recruitment .
Welcome global friends to visit our factory and negotiate win-win cooperations
with TMOK TEAM.
Material composition table
Cu | Pb | Fe | Sn | Al | Ni | Mn | Si | Zn | Bi | Ag | Cr | As |
57.5034 | 1.9242 | 0.7019 | 0.6057 | 0.3543 | 0.4397 | 0.0339 | 0.0923 | 38.2601 | 0.0004 | 0.031 | 0.0006 | 0.0021 |
Sb | Co | Mg | P | S | | | | | | | | |
0.0398 | 0.0089 | 0.0006 | 0.0002 | 0.0011 | | | | | | | | |
Ball valve installation&application instruction
1.Range of application
The ball valve is mainly used for cutting off, distributing and changing the direction of the flow medium in the pipeline. To prolong the service life of the ball valve, full open and full close are highly suggested.
2.Main technical parameters of the product
1,we select high quality cooper material and apply hot forging process in the production process.
2,The main working medium are water,oil,gas,etc.
3.working temperature range from -10ºCto 120ºC
4.each nominal working pressure of our ball valve are 2.5Mpa,2.0Mpa and 1.6Mpa
3.Installation manual
1, For pipe thread connection type ball valve,we should make sure the pipe being vertical against the end surface of the valve body when tighten the connection part.our special warning is that we should only wrench the octagonal at the same end of body instead of the other side to avoid deformation so as to affect its normal open function.
2,For internal thread type ball valve,we should control the length of the external thread at the pipe end in case deformation of the valve body caused by the external thread's aqueezing the surface of the internal thread so as to affect leakproofness
3.When connecting the pipe thread type ball valve with pipe thread,the internal thread can be either tapered pipe thread or cylindrical pipe thread,but the external thread must be tapered pipe thread,otherwise it will cause leakage due to loose connection.
4.When installing the pipe thread type ball valve,the sealing material must be clean.
5.Such obstacles as wall,coupling nut and pipe should not be placed in the open/close range .
6.When the ball valve handle is parallel to the body,it is open,otherwise,it is close.
7.The working medium should not contain particles,corrosive gas or liquid
8.PP-R ball valve installation instruction:
1.Remove the coupling nut,PP-R pipe and O-ring from the valve body
2.Pull the coupling nut on the pipe in the original direction
3.join the PP-R flange with PP-R pipe with a hot fusion machine.Pull the O-ring in the PP-R flange when it cooled down.Last,tighten the coupling nut with valve body.

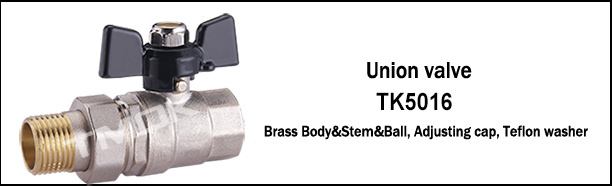

brass ball valve:
DN | SIZE | A | B | C | D |
15 | 1/2" | 52.5 | 46 | 87.5 | 15 |
20 | 3/4" | 60.5 | 49 | 87.5 | 20 |
25 | 1" | 69.5 | 58 | 104 | 25 |
32 | 1 1/4" | 78 | 69.5 | 136 | 32 |
40 | 1 1/2" | 91 | 76.5 | 150 | 37 |
50 | 2" | 104 | 84.5 | 150 | 47 |
65 | 2 1/2" | 123 | 115 | 210 | 57 |
80 | 3" | 155 | 132 | 210 | 68 |
100 | 4" | 178 | 148 | 290 | 84 |
pressure and temperature limitations for PN rated valve
Taizhou Chunhong Copper Industry Co., Ltd. Was founded in 1989, as an engineering company specialized in brass valve designing and manufacturing for Fluid control Industry. Now it has one new name that is YUHUAN OUJIA VALVE Co., Ltd.
Brass ball valve, brass gate valve, brass stop valve, brass bibcock, brass angle valve, brass check valve, brass filter valve, brass float valve, brass other valve, brass fitting, faucet and bath accessories are manufactured in our factory.
High quality goods production requires the right material selection, different forging techniques and precision machining with quality assurance. OUJIA has a complete line for all the processes, beginning back from the foundry or forging to the machining process, is performed by computer controlled machines. We strive to carve our own products through attractive designs, hard working and responsible employees and own mission to satisfy every customer.
Today, with continuing R&D to meet the ever-increasing expectations, OUJIA maintains its capacity and quality standards in the global market with a steady growth. And our products have won a good reputation both at home and abroad. QUALITY, JIT and SERVICES are strong points of our mission.
President Mr. Dai Shangjun sincerely wishes to cooperate with customers from all over the world. Experienced and succeed OUJIA is always ready to provide you the best products and service.
