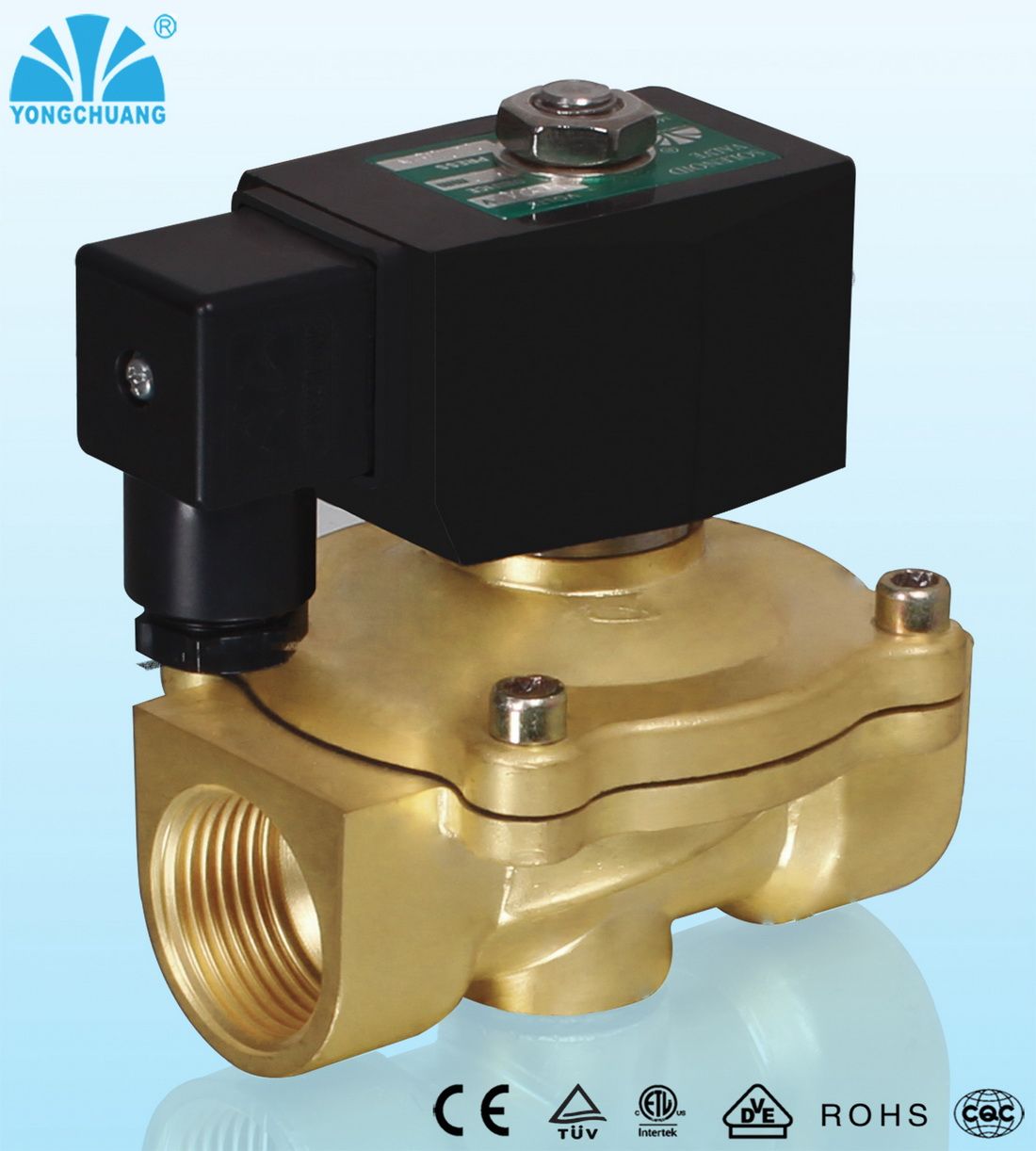

YCK21 Series
Vacuum Service
Normally closed
Characteristic: Low pressure solenoid valve with direct lifting diaphragm construction for
Vacuum use
Medium: Vacuum, Air
Temperature: NBR Seal: -10 to 80
EPDM Seal: - 10 to 120
VITON Seal: -10 to 150
Pressure: YCK21: 0.0MPa~ 1.0MPa
Port Size: 3/8'', 1/2'', 3/4'', 1''
Port Thread: BSPP, BSPT, NPT, FLANGE
Orifice(mm): 12, 15, 20, 25
Voltage: DC- 12V, 24V
AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Tolerance: +/-10%
Coins: S51B, 30VA(AC), 24W(DC), IP65, 100%ED
NASS COIL 0543 on request
Material: Body- Brass
Seal- NBR, EPDM, VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop - Stainless Steel 403F
Springs - SS304
Shading Rings - Stainless Steel304
EXAMPLE: YCK21 15GBV S51B1, YCK21 SERIES, N. C., 15MM ORIFICE, 1/2'G, BRASS BODY, VITON SEAL, COIL S51B, AC220V, DIN
. Our company name: YONGCHUANG SOLENOID VALVE Co., Ltd
. Our Address: NO. 65 Beixing Rd, Mazhu, Yuyao City, Zhejiang, China
. Our product line: Different kinds of solenoid valve have its own product line
. Our guarantee: One year guarantee
. Our services:
1)our advantage:
We are the manufacturer with 17 years experience in solenoid valve, Best service, price, and quality. Also, we can control the production status.
Yongchuang team with strong ability in designing and after sell service. Cooperation with Parker has improved our quality to a new level.
2), Terms of payment: L/C, T/T, western union
3). Shipment: Average 15-25 days after receiving deposit
4). Delivery: Ningbo /Shanghai by sea or air
5) Gurantee: One year since delivery
6)Inspection: 100% testing for all the valves
Name: Miss Vicky
Tel: +86- 13008989449, 0574-62507215
Welcome to choose YONGCHUANG, we are aiways ready!
Founded in 1998, Yuyao Yongchuang Solenoid Valve Co., Ltd. is a technical company specialized in designing and manufacturing solenoid valves, cylinders, flow meters, and heating air-conditioning control products. Our products have been widely applied in the automation of the fluid control.
We have three sales and service branches in Beijing, Guangzhou and Chengdu cities and our sales network covers more than 20 important cities. In 2000, our products merged into the North American market. Now, they have already expanded to different countries and regions in Europe, Southeast Asia and South America.
Since our establishment, we have been working with a clear aim ahead to provide high quality products and service to our clients. We have paid close attention to product development and innovation. From receipt of the firm order to release the items, we have serious procedure to control the quality, and offer the best service to our clients. There are specific persons in charge of providing technical expertise for quality problems and the quality control. There are procedures defining in process inspection and testing stages for the manufacturing process.
Concerning the global competition, we have import advanced equipment and invite many outstanding engineers to improve the product performance. According to the rough statistic, our total annual output is about 700, 000 valves. There are three production lines for industrial use valve, household appliances use valves and pneumatic cylinders.
Complied to ISO9001: 2000, we get the CE and TUV certificates and we can also offer high standard materials on the special request which conforms to our principles: Innovation, endless development; Individual solution for customer at best service; Attention to quality is one of our main guidelines.
We hope to develop the business of fluid control with more companies in the world, and we are convinced with our joint efforts the business will bring us a bright future.
