| Price: | US $ 2-10/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |

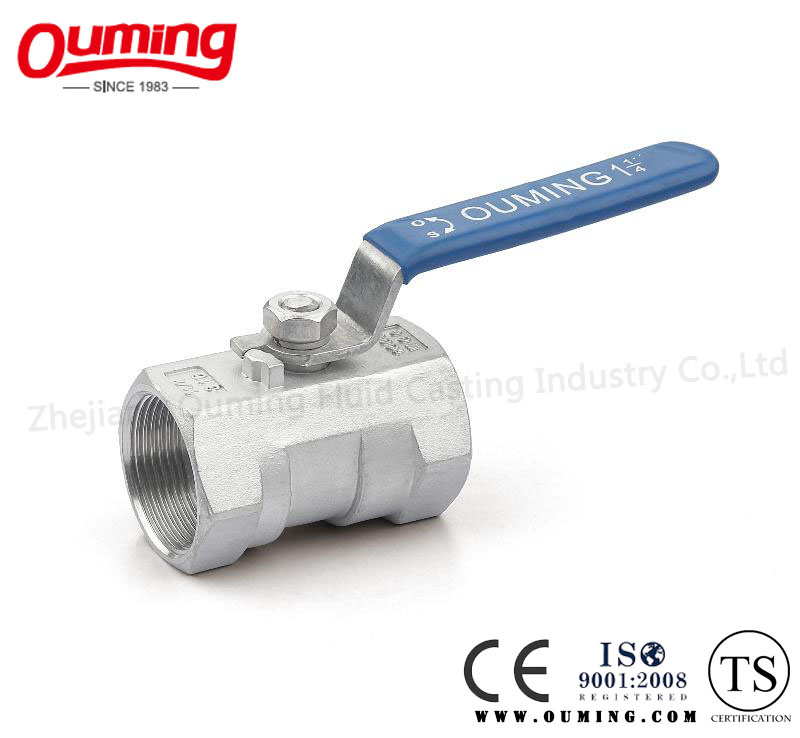

1PC Ball Valve, Reduced Bore, 1000W.O.G
Main Parts Materials:
| Item | Part Name | Material |
| 1 | Seat | PTEE |
| 2 | Ball | SS304/SS316 |
| 3 | Body | WCB/CF8/CF8M |
| 4 | Packing | PTFE |
| 5 | Stem | SS304/316 |
| 6 | Gland | SS304 |
| 7 | NUT | SS304 |
| 8 | Washer | PTFE |
| 9 | CAP | WCB/CF8/CF8M |
| 10 | Handle | SS201 |
Main Size:
| NPS(Inch) | DN(mm) | D | L | H | T |
| 1/4" | DN8 | 5.0 | 38.7 | 27.2 | 58 |
| 3/8" | DN10 | 7.0 | 44.2 | 29.0 | 70 |
| 1/2" | DN15 | 9.0 | 55.6 | 36.5 | 85 |
| 3/4" | DN20 | 12.5 | 62.1 | 39.8 | 85 |
| 1" | DN25 | 15.0 | 68.9 | 49.1 | 100 |
| 11/4" | DN32 | 20.0 | 78.2 | 53.5 | 100 |
| 11/2" | DN40 | 24.5 | 86.0 | 61.5 | 125 |
| 2" | DN50 | 32.0 | 102.7 | 67.6 | 125 |
We will give you a reply within 24 hours after receiving your inquiry
Features
1. Blow-out Proof Stem
2. Investment Casting Body
3. Pressure Balance Hole in Ball Slot
4. Anti-Static Device Upon Request
5. Various Connection End Standard Available
6. Locking Device Available
Specifications
1). Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
2). Material: 201/304/316/304L/316L/WCB/CF8/CF8M/CF3/CF3M
3). Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE (25% Carbon Fiber), PPL etc.
4). Pressure: 1000WOG/1000PSI, 1.6-6.4Mpa
5). Medium Temp.: -20° C~+180° C
6). Ambient Temp.: -20° C~+60° C
7). Availably Connection: NPT, BSP, BSPT, DIN259/2999, SW, BW, Clamp, Flanged
8). Port: Full Port, Reduced Port
9). Handle: Lever Handle, Locking Device Handle Upon Request.
10). ISO-5211 Mounting Pad for Actuator (option)
11). Operation: Manual, Pneumatic, Electric
12). Suitable Medium: Water, Oil, Air and Some Corrosive Liquid
13). Design Standard: ASME B16.34
14). Inspection and Testing: API 598
Packaging & Shipping:
| Prod Model: | OM-1PBV |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 1/2" ~2" |
| Material: | Stainless Steel |
| Connection Form: | Thread |
| Channel: | Straight Through Type |
| Structure: | Floating Ball Valve |
| Type: | Floating Ball Valve |
| Application: | Household Usage |
| Function: | Cut-off Valve |
