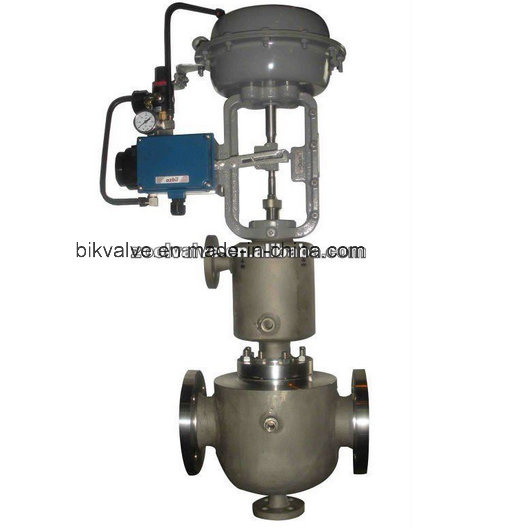

100s Diaphragm Actuator Steam Jacketed Single Seated Control Valve

100s Diaphragm Actuator Steam Jacketed Single Seated Control Valve
Price: US $ 10/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

Standard Specifications:
Series :100S
Body size:1/2"~8"(DN15~200)
Body ratings : ANSI 150#,300#,600#
                         JIS 10K,20K,30K,40K
                         JB/T79-94 PN1.6,PN4.0,PN6.3,PN10
Body Material :WCB,CF8,CF8M,etc.
Characteristics: Equal%, Linear
Rangeability: 50:1
Temperature :-5~+425°C
Leakage: ANSI CLASS IV,VI.

Characteristics:
1.Large Cv and large rangeability
2.Simpe Structure , Compact Size,Safty Performance,applied in a wide scope of liquid service as well as steam,gas service.
3.Unbalance Plug Type,allow lower pressure Drops.
4.Bonnet Type:
1)Bellow  Seal Type   -  No leakage
2)Steam jacketed Type -  Slurry material,Polymer and strongly viscous liquid
3)Fine-Extension Type  -  For Middle-High Temp.(230~565°C)
                                                 For Low Temp.(-45~-5°C)
   Long-Extension Type  -  For Low Temp(-196~-100°C)
   Extra-Long-Extension Type - For Low Temp(-100~-45°C)
Prod Model: J341Y
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard: Standard
Size: Dn15-200
Certificate: DIN, BS, ISO, ANSI, as, JIS
Delivery Time: in 45days
Warranty: 18months
Structure: Y-Global Globe Valve
Stem Thread Position: Inside Screw Stem Globe Valve
Standard: JIS
Sealing Form: Gland Packings Globe Valve
Application: Bellows Globe Valve
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.

We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
