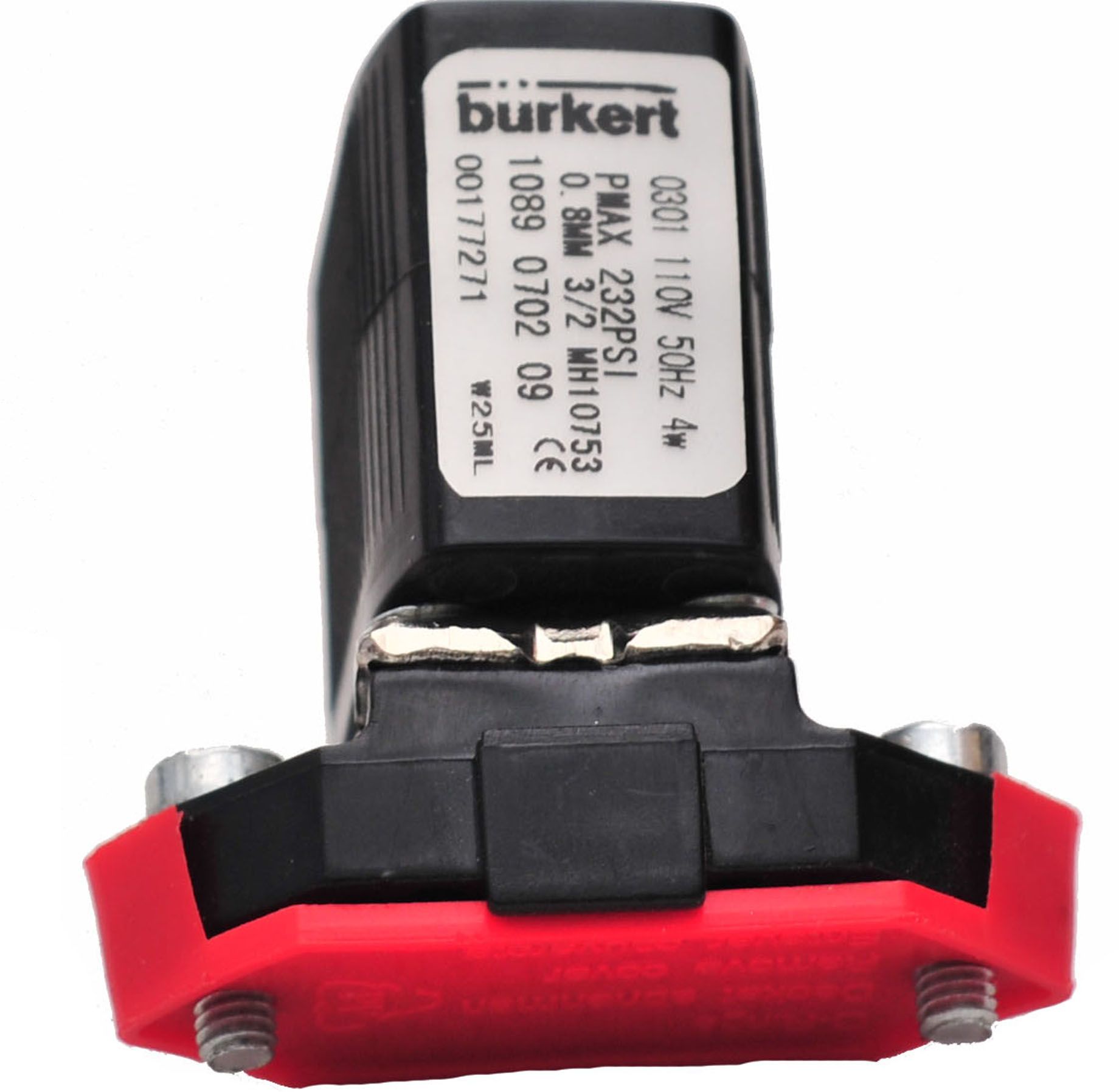

Atlas Copco 220V Burket Solenoid Valve Air Compressor Part
Compressor parts --- solenoid valve
220V solenoid valve atlas copco air compressor part
Products Name: solenoid valve
Apply : Screw air compressor
Part number: 2200599753/1089062157
| Characteristic | 1.Pilot operated diaphragm structure with less power comsumption for long time working |
| 2.Applied to pressure system opened from 0.03 Mpa |
| 3.Life span can be over 1 million times |
| Medium | Air, water etc. |
| Temperature | NBR:-10°C to 80 °C |
| EPDM:-10°C to 120 °C |
| VITON:-10°C to 150 °C |
| Pressure | 0.03-1.6Mpa |
| Port size | 3/8'-1' |
| Port thread | G.BSPT,BSP,NPT,PT |
| Orifice | 12,15,20,25mm |
| Voltage | DC-12V,24V |
| AC-24V,120V,240V/60HZ,110V,220V/50HZ |
| Tolerance | ±10% |
| Coils | SA11B,9VA(AC),6W(DC) IP 65,100% ED |
| S91B,22VA(AC),17W(DC) IP65,100% ED |
| Special coils | Latching coil:DC6-24V as requested |
| Material | Body- brass or stainless steel |
| Seal- NBR,EPDM,VITON |
| Amature tube-stainless steel 304 |
| Plunger-stainless steel430F |
| Stop-stainless steel 430F |
| Springs-SS304 |
| Shading rings- stainless steel 304 |
| Business scope |
Mechanical Seal :
| Temperature Sensor | Pressure Sensor
|
| Maintenance Kits | Solenoid Valve | Thermostatic Valve
|
| Air intake | Wheel Gear
| Pressure Maintaining Valve |
| Air Filter | Oil Separator | Oil Filter
|
| Oil Level Indicator | Circuit Board Master Control | Air intake valve |
| Used air compressor | Air-end | Oil level indicator |
| No. | Specification of Mechanical Seal | Type of the Lip | Coupling Sleeve | Model of the Machine |
| InnerΦ *OuterΦ*H(mm) | InnerΦ *OuterΦ*H(mm) |
|
|
| 1 | 37*51*10 | Double | 30*37*38 | Atlas 15HP2901056100 |
| 2 | 40*62*8 | Double | 35*40*20 | Rodcomp 15HP B60 |
| 3 | 40*62*8 | Single | Rodcomp20-30HP B101 |
| 4 | 50*72*8 | Double | 45*50*25 | Rodcomp50HP B170 |
| 5 | 70*90*10 | Double | 60*70*40 /30/28 | Rodcomp75HP B201 |
| 6 | 70*90*10 | Double | 60*70*40 | CompAir75HP |
| 7 | 70*90*10 | Single | CompAir75HP |
| 8 | 35*50*8 | Single | 30*35*30 | CF50G |
| 9 | 35*50*12 | Double | 30*35*30 | GHH15-20HP CE55 |
| 10 | 35*47*7 | Single |
| 11 | 45*65*12 | Double | 40*45*30 | GHH70 Handpiece(QS70) |
| 12 | 45*60*8 | Single |
| 13 | 68*100*12 | Double | 60*68*45 | GHH100HP(CF110/CF128J) |
| 14 | 68*90*10 | Single |
| 15 | 68*90*10 | Double | 60*68*45 | GHH100HP(CF128LG) |
| 16 | 60*80*8 | Single | 50*60*40 | Fusheng 30HP |
| 17 | 60*80*8 | Double | 50*60*40 |
| 18 | 65*90*10 | Single | 55*65*45 | Fusheng 50HP |
| 19 | 65*90*10 | Double | 55*65*45 |
| 20 | 68*90*10 | Single | 60*68*45 | Fusheng 75-100HP |
| 21 | 68*90*10 | Double | 60*68*45 |
| 22 | 100*120*10 | Single | 85*100*55 | Fusheng 150HP |
| 23 | 68*90*10 | Double | 60*68*45 | ECOAIR 100HP |
| 24 | 45*65*8 | Single | 40*45*20 | BOGE30HP |
| 25 | 50*65*8 | Single | 45*50*25 | BOGE50HP |
| NO | Model | Description | P/N |
| 1 | GA11-22 | Unloading valve kit | 2901000201 |
| 2 | Min pressure valve kit | 2901000600 |
| 3 | Drain valve kit | 2901071200 |
| 4 | GA30-37-45 | Drain valve kit | 2901021900 |
| 5 | Min pressure valve kit | 2901021800 |
| 6 | Check valve kit | 2901021200 |
| 7 | Oil stop valve kit | 2901021700 |
| 8 | Unloading valve kit | 2901021100 |
| 9 | Thermostat valve kit | 1619733300 |
| 10 | GA55-75-90C | Oil check valve kit | 2901007200 |
| 11 | Check valve kit | 2901007700 |
| 12 | Min pressure valve kit | 2901021800 |
| 13 | Unloading valve kit | 2901044800 |
| 14 | Thermostat valve kit | 2901007400 |
| 15 | Drain valve kit | 2901084500 |
| 16 | Drain valve kit | 2901007300 |
| 17 | Oil stop valve kit | 2901108400 |
| 18 | Unloading valve kit | 2901029900 |
| 19 | GA90-250 | Test valve kit | 2906009300 |
| 20 | Oil check valve kit | 2906009400 |
| 21 | Min pressure valve kit | 2906009600 |
| 22 | Regulating valve kit | 2906009100 |
| 23 | Thermostat valve kit | 1619756000 |
| 24 | Unloading valve kit | 2906056300 |
| 25 | Connector kit | 2906057100 |
| 26 | Drain valve kit | 2901074900 |
Hongkong Jiubei Industry Limited was established in 2000, located in Dongguan city Changan town - "China National Machinery and Hardware Mold town".
We are a Hi-Tech company specialized in research, development, manufacture and distribution of Air compressor spare parts. We provide used air compressor, used air compressor airend, air compressor valves, air compressor controllers, air compressor service kits, air compressor filters, air compressor coolers and so son, With our rich experience, professional technology and rigorous quality control, our products has been widely used in various brand air compressors, such as Atlas Copco, Hitachi, Sullair, Kobelco, Fusheng with good feedback and continuous orders from more than 2, 000 customers in domestic and oversea market.
Sticking on the principle of "Super quality, satisfactory service", we are striving hard to build the most complete variety platform of air compressors spares parts in China.
