10s Series Control Valve (unbalanced trim)

The 100 series control valve design features
Innovative packing structure design
The top guided structure design
Detachable structure design
Standard modular design
Reading tips
For detailed product information, product animation, please click "contact us",
Then visit the company's website, Download and reading Or contact us directly


Outline

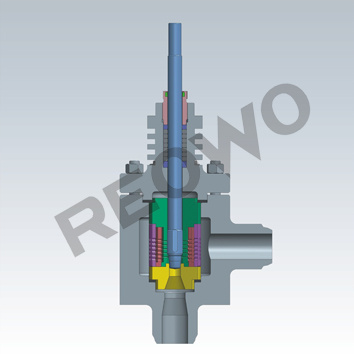

The 10S Series unbalanced multi-stage pressure drop control valve is suitable for applications with high differential pressure and applications t hat produce flash evaporation and cavitation. According to the requirements in different service conditions, it is designed with various multi-hole cages that form a multi-stage pressure drop that form a multi-stage pressure drop trim, so that the internal energy of high trim, so that the internal energy of high speed media is consumed and flow velocity is reduced from the time when the fluids contact the first cage. As it is composed of various cages, the pressure is gradually reduced so that the medium pressure is always above the saturated vapor pressure, and the occurrence of flash evaporation and caitation is eliminated. The standard configuration is the unbalanced single- seat plug and the plug and seat are subjected to hardening treatment to prolong the service life of the trim. The valves of large sizes can be designed with the balanced single-seat plug structure.
