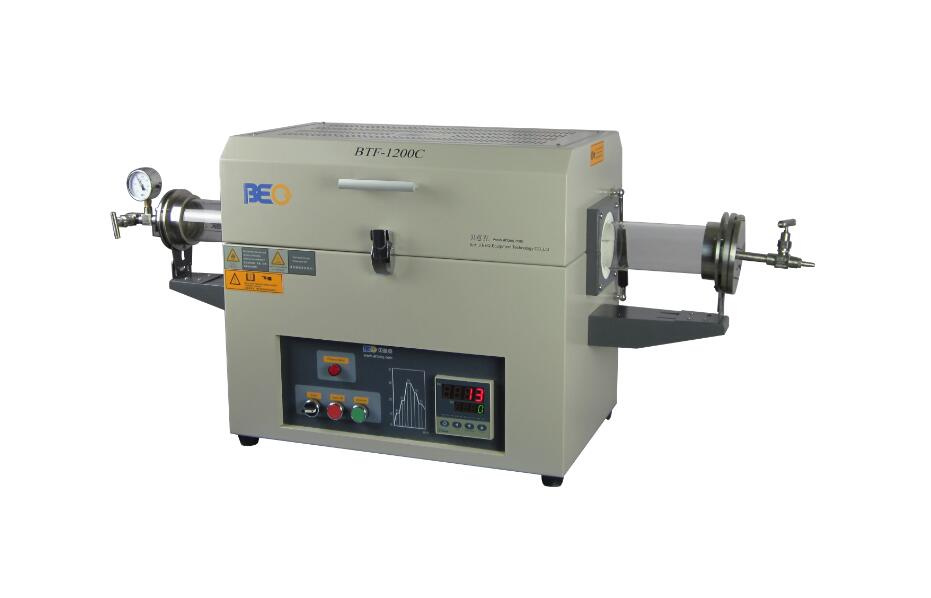

1200c Split Tube Furnace Btf-1200c

1200c Split Tube Furnace Btf-1200c
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Contact Supplier
ANHUI BEQ EQUIPMENT TECHNOLOGY CO., LTD.
Showroom Product Company Profile

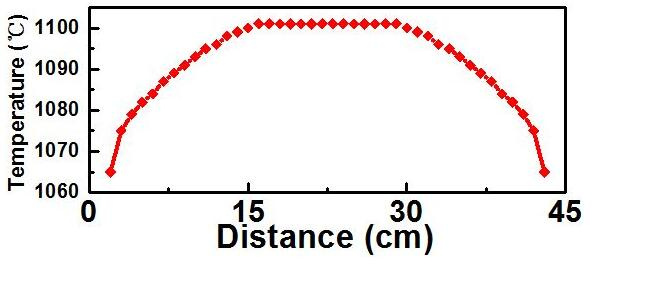

                                                   Temperature curve

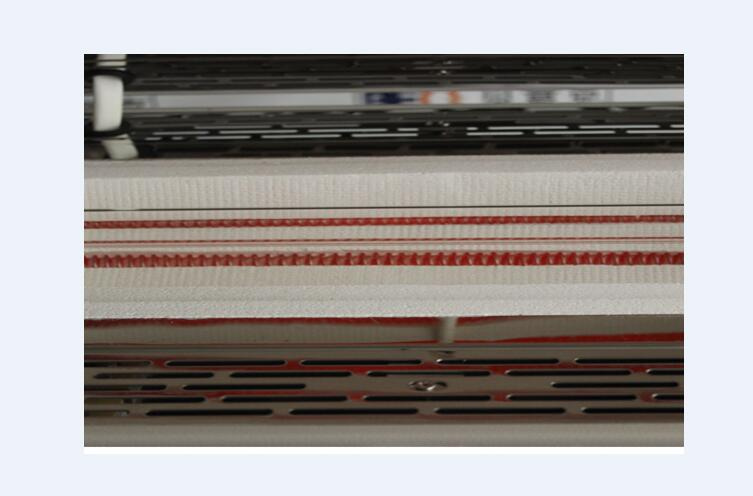

                                            Heating situation

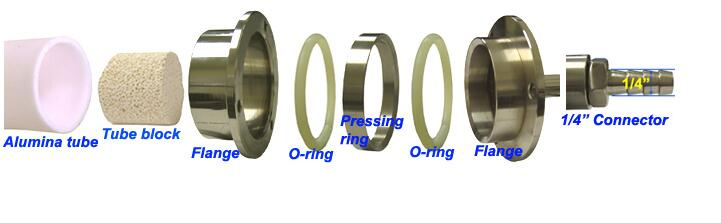

                                         Tube instalation


Main features:
BTF-1200C furnace is configurated to meet CE certificate standard. The furnace can adopt φ50,φ60,φ80 orφ100mm quartz tube and a pair of stainless steel vacuum sealing flanges with needle
valves & gauge allow heating samples under vacuum or gas flow conditions. The temperature of this
 tube furnace is controlled by a high precision digital controller which provides 30 programmable
 segments with +/- 1°C accuracy. The max. working temperature is 1200°C.

Specification
   Furnace structure

·Double layer steel structure.
· High purity Al2O3 fibrous insulation with Max. energy saving
High purity alumina coating on refractory ceramics for longer
service life


  Power
 		AC 208-240V single phase  50/60HZ

Working temperature
Max. temperature 1200ºC(1 hour)
Working temperature≤1100ºC
Heating rate≤15ºC/min


Tube size
Double layer quartz tube φ30*φ10*1200mm
(Optional tube:
Two fibrous ceramic tube blocks are included for blocking heat
 radiation generated from tube center.(Ceramic blocks must be
 fullyed inserted into the furnace chamber before heating )
Quartz blocks are ideal for cleaner processing environment and
higher vacuum efficiency.





Heating zone length
 		440mm
Constant zone length

 400mm




Temperature controller

*30 programmable segments for precise control of heating rate
 ,cooling rate and dwell time.
*Built in PID auto-tune function with overheating&brocken
 thermocouple brocken protection and over temperature protection
*Alarm allows for operation without attendants.
Optional:
The furnace maybe operated by PC by installing a control moudle.If you
order the PC control moudle with the furnace ,we will install and test it before.
The new version of PC is now compatible with Lab View 05/08/2014





 Accuracy
±1ºC


Vacuum flange
 25mm/50mm/60mm/80mm or 100mm flange has no thermocouple insert  will be
supplied.


Heating element
 		Resistance wire
Standard accessoryquartz tube 1 pcs,stainless steel sealing flange 1set,silicon sealing ring
2set,high temperature glove1pair,quartz block1 pcs.

Adopted accessory

quartz crucible 1pcs,quartz hook 1pcs,manual baffle valve 1pcs,corrugated
pipe 1 pcs,vacuum gauge 1set,resistance monometer 1pcs and crucible
hook 1pcs


Size

590mm(L) × 380mm(W) ×500mm(H)

Net weight
            		40kg

Shipping Package Size

1150mm(L) × 530mm(W) ×810mm(H)

Prod Model: BTF- 1200C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Precision: High Precision
Certification: ISO
Anhui BEQ EQuipment Technology Corporation is located in Hefei High-Tech Zone, Anhui Province.

Anhui BEQ Quipment Technology Corporation focuses on producing kinds of material prepsration equipment. As the requirement of customers, we combine research and produce together. Under the work of all BEQers, we are becoming a professional equipment supplier in this special field. We own a number of returnees and experts of the material field. Moreover we have 35 patents, among 8 patents is famous all over the world. We have more technology than other campanys in China. We are working to give out whole solutions for our customers.

Our main product is tube furnace, muffle furnaces, presses, mixers, dry boxes, glove boxes and other products. Theyare used in the new energy materials, metal materials, magnetic materials, semiconductor materials, ceramic materials, electrochemical, thinfilms, of CVD, of PECVD, graphene, silicon nanotubes, nanowires, sapphire (LEDs), optical materials, dental and other fields of study.

With special design, our products have the vantage of unique design, attention to detail, reliable quality and timely after-sales service.

It is a mission for us to provide the most appropriate and effective professional programs solutions for materials science researchers.

To provide full set of solutions is BEQer pursuit!
