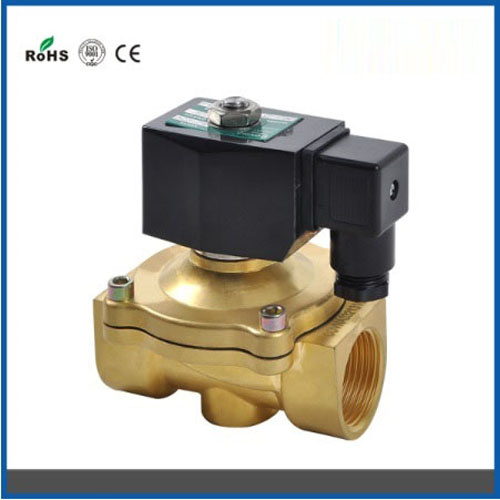

2W21 series 1/2'' diaphragm direct acting 24vdc solenoid valve
Specifications
Medium: Steam, hot water, air, oil (below 20cst)
Sealing material: NBR,EPDM,VITON
Body material: brass, strainless steel, PA
coil power: DC12V 24V 6V, 13W
protection: IP65, F
temperature: -5~80
working type: pilot operated
Charateristic | Direct lifting diaphragm construction |
Open from 0 bar for low pressrue systerm use |
High frequency of flying lead coil |
Medium: | Air, water, steam, oil |
Temperature | NBR seal:-10 to 80 degree |
EPDM seal:-10 to 120 degree |
VITON seal:-10 to 150 degree |
Pressure | 2W: 0.0Mpa to 1.0Mpa |
2W21: 0.0Mpa to 1.0Mpa |
2W31: 0.0Mpa to 1.0Mpa |
Port size | 1/8", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" |
Port thread | G, BSP, NPT, Flange |
Orifice(mm) | 12,15,20,25,32,40,50 |
Voltage | DC-12V, 24V |
AC-12V,120V,240V/60Hz, 110V, 220V/50Hz |
Tolerace | +/-10% |
Coils | S51B, 30VA(AC), 24W(DC), IP65, 100%ED |
S91B, 22VA(AC), 17W(DC), IP65, 100%ED |
SD01B, 28VA(AC), 36W(DC), IP65, 100%ED |
Y32B, 40VA(AC), 18W(DC), IP65, 100%ED |
Y42B, 50VA(AC), 20W(DC), IP65, 100%ED |
Material | Body: Brass or stainless steel |
Seal:VITON,NBR,EPDM |
Armature tube:Stainless steel 304 |
Plunger:Stainless Steel 430F |
Sopt:SS403F |
Springs:SS304 |
Shading Rings:Stainless steel 304 |
Model | connection | orifice size(mm) | CV value | length(mm) | height(mm) | working pressure(bar) |
2W21-10 | 3/8'' | 10 | 3.5 | 66 | 112 | 0.5~13 |
2W21-15 | 1/2'' | 15 | 4.5 | 66 | 112 |
2W21-20 | 3/4'' | 20 | 7.6 | 74 | 118 |
2W21-25 | 1'' | 25 | 12 | 92 | 125 |
2W21-32 | 11/4'' | 32 | 22 | 131 | 137 |
2W21-40 | 11/2'' | 40 | 30 | 139 | 150 |
2W21-50 | 2'' | 50 | 48 | 151 | 160 |
2W21-40S | 11/2'' | 40 | 30 | 170 | 173 | 0.5~7 |
2W21-50S | 2'' | 50 | 48 | 170 | 173 |
