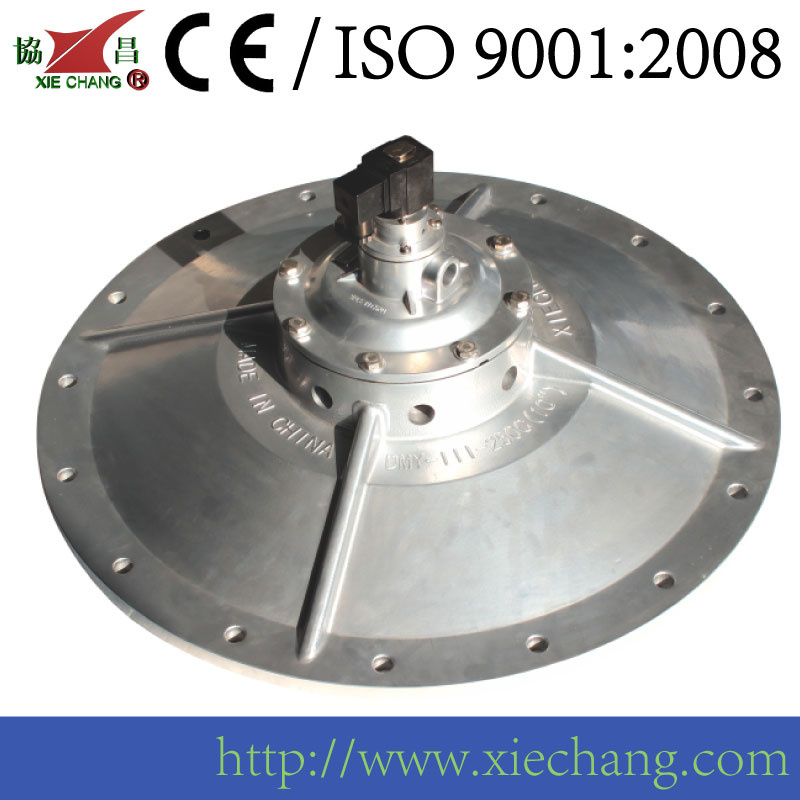

14inch Low Pressure Baghouse Filter

14inch Low Pressure Baghouse Filter
Price: US $ 2500/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Western Union
1. Pulse valve used for rotating cleaning low pressure baghouse
2. Garlock membrane used
3. ISO9001:2008/CE certified
4. World-class diaphragms


Pulse Valve Introduction
       With the standard of dust emission from the power industry being further enhanced, high-efficiency baghouse filter has been widely promoted and used in power plant industry.
       Presently, the long-arm rotating baghouse is polularly used in power industry, the feature of which is suitable for the dust wind with high air volume, small wokload of maintenance, high blow volume, low pressure and energy saving, etc. The heart part system of pulse valve is usually imported from abroad the 8" Pulse Valve while the most of Pulse Valve produced domestically is at most 3" which can not meet the requirement of high blow jetting volume. To satisfy the high speed development of APC requirement, we have developed 8", 10", 12", 14" and 16" low pressure pulse valve. After the experimental test, all the performance have reached the foreign standard. Welcome the users to select.
Working Principle
The low pressure large-orifice pulse valve stop working by the differential pressure between the both sides of diaphragm. The pilot head of Pulse Valve open the balancing holes with time of pulse duration ( 0.15-0.3s). The airflow in the high pressure area of diaphragm will be released so that the diaphragm will be holded up and the Pulse Valve start cleaning.

Technical Parameters
>Pulse Valve Working pressure:0.05~0.1Mpa
>Pulse Valve Working medium:clean air
>Pulse Valve Voltage:DC24V(AC220V/50Hz)
>Pulse Valve Current:0.8A(0.05A)
>Used environment:
Temperature:-40°C~130°C
The relative humidity of air is no more than 85%

Prod Model: DMY-III-350C
Type: Pilot Operated
Connection Form: Thread
Valve Structure: Pilot Membrane Structure
Power Supply: DC Solenoid Valve
Application: Industrial Usage
Usage: Dust Cleaning
Material: Aluminum
As a key enterprise in the environmental protection industry, Suzhou xiechang environmental protection technology Co., Ltd adheres to the policy of putting people first and giving priority to science & technology and devotes itself to the R&D and manufacture of bag type deduster.

Xiechang, formerly the Suzhou Xiechang Industrial Dedusting Equipment Factory, is a member of the Chinese Environmental Protection Industry Association and the Bag Type Dedusting Speciality Committee. Its bag type dedusting products are widely used in power\metallurgy\building materials\waste incineration\chemical industry, and so on. In the past ten years, our company's products and service have been recognized and approved by users all over the country.

In March 2005, it made an investment in building a new factory area of 2.5 hectares and building area of 20000 square meters in Suzhou Singapore Industry Park in cooperation with Hongkong businessman. Xiechang's modern factory is equipped with advanced processing equipment and a capable of machining parts with a high level. The company has adhered to ISO9001: 2008 quality management system certification, thereby improving the reliability of product quality.

The company has had more than ten patented technologies so far, and these patented technologies have been awarded certificates of environmental protection product certification by the State Environmental Protection Administration and several honorary certificates. Xiechang is at the forefront of the domestic counterparts both hardware and software.

The company always As a key enterprise in the environmental protection industry, Suzhou xiechang environmental protection science&technology Co., Ltd adheres to the policy of putting people first and giving priority to science & technology and devotes itself to the R&D and manufacture of bag type deduster.

Xiechang, formerly the Suzhou Xiechang Industrial Dedusting Equipment Factory, is a member of the Chinese Environmental Protection Industry Association and the Bag Type Dedusting Speciality Committee. Its bag type dedusting products are widely used in power\metallurgy\building materials\waste incineration\chemical industry, and so on. In the past ten years, our company's products and service have been recognized and approved by users all over the country.

In March 2005, it made an investment in building a new factory area of 2.5 hectares and building area of 20000 square meters in Suzhou Singapore Industry Park in cooperation with Hongkong businessman. Xiechang's modern factory is equipped with advanced processing equipment and a capable of machining parts with a high level. The company has adhered to ISO9001: 2008 quality management system certification, thereby improving the reliability of product quality.

The company has had more than ten patented technologies so far, and these patented technologies have been awarded certificates of environmental protection product certification by the State Environmental Protection Administration and several honorary certificates. Xiechang is at the forefront of the domestic counterparts both hardware and software.
