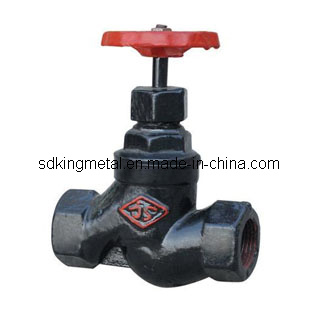

Usage
Turn on or rurn off the pipelines where the nominal pressure is less than 1.6MPa
Design
Manufacture according to GB/T12233-1989
Other
1.Delivery Time:25 days after order conformed.
2.Standard: EN,MSS,API,AWWA,BS
3.Operation: level operation
4.Body:cast iron,stainless steel 304/316,aluminum bronze
5.Painting:PTFE coating,nylon painting
6.Stem:CS,SS416,SS410,SS304,SS431
7.Seat:NBR,EPDM,PTFE
8.Pressure:PN10,PN16
9.Size:2''-24''
10.Packaging:export poly wooden cases, or as per customers' requirements
11.Payment:by L/C,T/T and D/P
Material of main parts |
Part name | Material |
Body bonnet | Cast iron |
Stem | Carbon steel |
Seal ring | Bronze |
Wheel | Cast iron |
Performance data |
Type | Nomial pressure (MPa) | Testing | Working temperature | Suitable |
Strength(water)(Mpa) | Sealing(water)(Mpa) |
J11T-16 | 1.8 | 2.4 | 1.8 | ≤200°C | Vapour water |
Outline and connection dimension |
Type | Nomianal DN(mm) | Pipe thread | Dimensions(mm) |
L | L1 | S | H | Φ |
J11T-16 J11W-16 | 15 | RC 1/2 | 90 | 14 | 30 | 109 | 60 |
20 | RC 3/4 | 100 | 18 | 36 | 109 | 60 |
25 | RC 1 | 120 | 18 | 46 | 125 | 75 |
32 | RP 11/4 | 140 | 20 | 55 | 128 | 75 |
40 | RP 1 1/2 | 170 | 22 | 62 | 145 | 100 |
50 | RP2 | 200 | 24 | 75 | 155 | 120 |
