*4V/3V Pneumatic Control and Solenoid Operated Directional Control Valve
*Aluminum material Body width 18mm,22mm,27mm,34mm
*Inner Pilot Operated
*Life cycle 10000000 times
*Pipe joint and Namur joint type for option
*Din connector and outlead wire connecting selectable
*Metal Manual Override ensure safety application
*IP65 class Electromagnetic Induction Coil
ORDERING CODE |
| 4V | 2 | 10 | 08 | B | AC220V | W |
| Type | Body Width | Function Type | Joint Port size | Connecting type and Initial State | Voltage | Electricity Connect Form |
| 4V: Two position Five Way Solenoid valve | 1:18mm | 10:Two Position Single Coil | M5:M5X0.8 | Blank:Pipe Joint type | AC220V:220VAC | Blank:Standard Connector |
| 2:22mm | 20:Two Position Double Coil | 06:1/8" | B:Namur Type | AC110V:110VAC | LD:Brown Din Connector with Light Indicator |
| 3V:Two Position Three Way Solenoid valve | 3:27mm | 30C:Three Position Double Coil Center Closed type | 08:1/4" | NC:Normally Closed type | DC24V:24VDC | LD1:White Din Connector With Light Indicator |
| 4:34mm | 30E:Three Position Double coil Center Exhausting type | 10:3/8" | NO:Normally Open type | AC24V:24VAC | W:Out-leading Wire |
| 30P:Three Position Double coil Center Pressuer Type | 15:1/2" | DC12V:12VDC |
| SPECIFICATION |
| Model no(18mm) | 4V110-M5 | 4V120-M5 | 4V130-M5 | 4V130E-M5 | 4V130P-M5 | 4V110-06 | 4V120-06 | 4V130C-06 | 4V130E-06 | 4V130P-06 | 3V110-M5 | 3V120-M5 | 3V110-06 | 3V120-06 |
| Position And Way Numbers | Two Position- Five Way | Three Position-Five Way | Two Position- Five Way | Three Position-Five Way | Two position Three way |
| Effective Sectional Area | 10mm²(CV=0.56) | 7mm²(CV=0.4) | 12mm²(CV=0.67) | 9mm²(CV=0.5) | 10mm²(CV=0.56) | 12mm²(CV=0.67) |
| Port Size | Inlet,Outlet,Exhausting M5x0.8 | Inlet,Outlet,Exhausting G1/8" | M5x0.8 | G1/8" |
| Model no(22mm) | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 | 3V210-06 | 3V220-06 | 3V210-08 | 3V220-08 |
| Position And Way Numbers | Two Position-Five Way | Three Position-Five Way | Two Position-Five Way | Three Position-Five Way | Two position Three way |
| Effective Sectional Area | 14mm²(CV=0.78) | 12mm²(CV=0.67) | 16mm²(CV=0.89) | 12mm²(CV=0.67) | 14mm²(CV=0.78) | 16mm²(CV=0.89) |
| Port Size | Inlet,Outlet,Exhausting G1/8" | Inlet,Outlet,Exhausting G1/4" | G1/8" | G1/4" |
| Model no(27mm) | 4V310-08 | 4V320-08 | 4V330C-08 | 4V330E-08 | 4V330P-08 | 4V310-10 | 4V320-10 | 4V330C-10 | 4V330E-10 | 4V330P-10 | 3V310-08 | 3V320-08 | 3V310-10 | 3V3210-10 |
| Position And Way Numbers | Two Position-Five Way | Three Position-Five Way | Two Position-Five Way | Three Position-Five Way | Two Position-Five Way |
| Effective Sectional Area | 25mm²(CV=1.4) | 18mm²(CV=1.00) | 30mm²(CV=1.68) | 18mm²(CV=1.00) | 25mm²(CV=1.4) | 30mm²(CV=1.68) |
| Port Size | Inlet,Outlet,Exhausting G1/4" | Inlet,Outlet G3/8 Exhuasting Port G1/4 | G1/4" | Exhuast G1/4 In and outG3/8 |
| Model no(34mm) | 4V410-15 | 4V420-15 | 4V430C-15 | 4V430E-15 | 4V430P-15 | 3V410-15 | 3V420-15 |
| Position And Way Numbers | Two Position-Five Way | Three Position-Five Way | Two Position-Five Way |
| Effective Sectional Area | 50mm²(CV=2.79) | 30mm²(CV=1.68) | 50mm²(CV=2.79) |
| Port Size | Inlet,Outlet,Exhausting G1/2" |
| Working Medium | Compressed 40 Micron Filtered Air |
| Motion Pattern | Inner Pilot |
| Working Pressure | 0.15~0.9MPa |
| Max.Pressure Resistance | 1.2MPa |
| Operating Temperature | 5~50ºC |
| Voltage Tolerance | ±10% |
| Power consumption | AC:4.5VA DC:3W |
| Insulation&Protection Class | F Class IP65 |
| Highest motion Frequency | 5 cycle/Sec |
| Minimum Activate Time | 0.05 Sec |

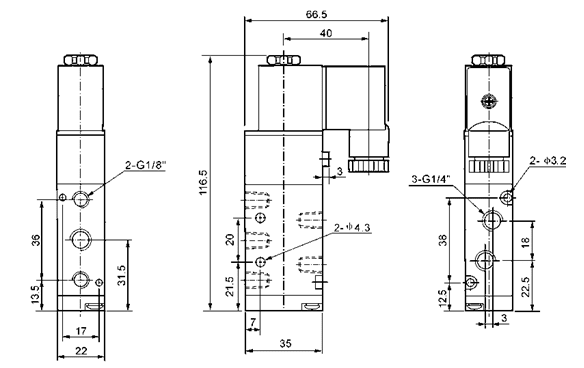

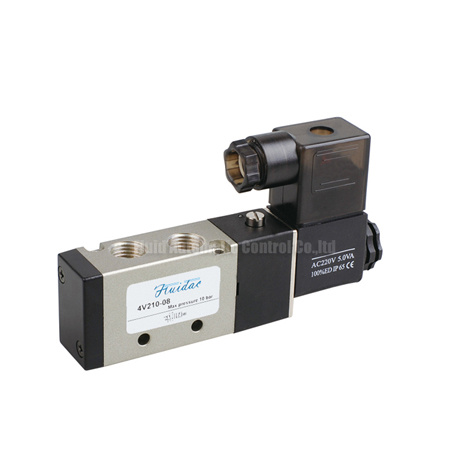

4V210-08

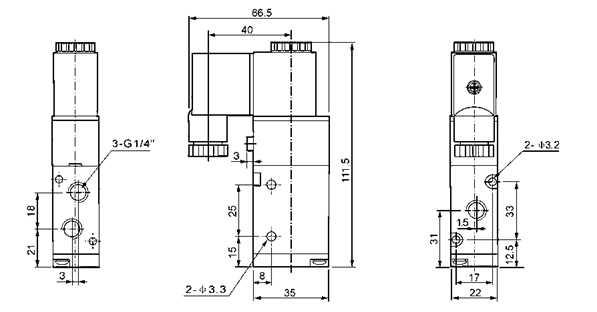

3V210-08

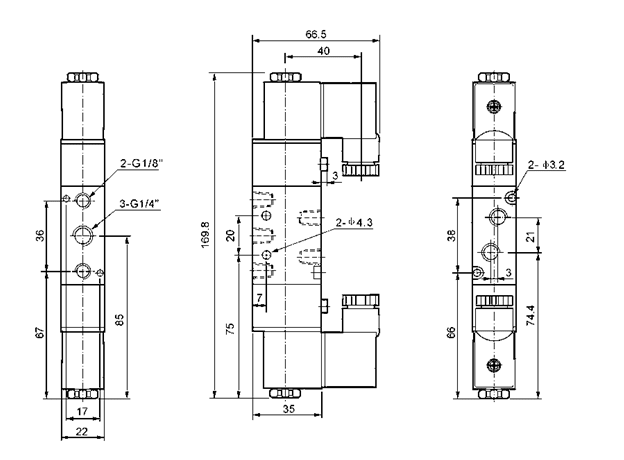

4V220-08
