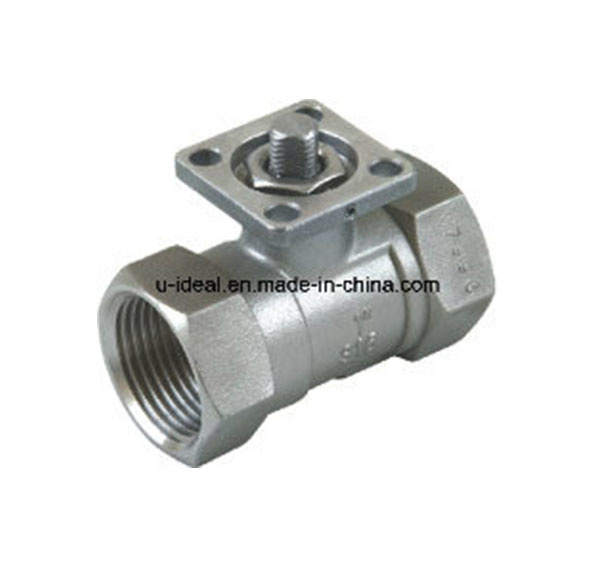

1PC Ball Valve (with Mounting Pad)
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
1pc ball valve WITH MOUNTING PAD FEATURES:
1000PSI/PN63
Reduce Port
Investment Casting
ISO5211 Mounting Pad
PED97/23/EC(CE 0035) Approved
Casting Approved AD2000-W0
Thread: ASME B1.20.1 BS21. DIN2999/259,
ISO228-1, JIS B 0203, ISO7/1
Inspection Testing: API598, EN12266
Product Description
Features:
1000PSI/PN63
Reduce port
Investment casting
Iso5211 mounting pad
Blow-out proof stem
PED97/23/EC(CE0035)approved
Casting approved AD2000-W0
Thread: ASME B1.20.1 BS21. DIN2999/259 ISO228-1 JIS B0203 ISO7/1
Inspection testing: API598 EN12266
Other
1. Delivery Time: 25 days after order conformed.
2. Standard: EN, MSS, API, AWWA, BS
3. Operation: Level operation
4. Body: WCB 304 316
5. Painting: Connection end, thread end, flange end
6. Pressure: 800WOG 1000WOG 2000WOG
7. Size: 1/4''-4''
8. Packaging: Export poly wooden cases, or as per customers' requirements
9. Payment: By L/C, T/T and D/P
Related products: Gate Valve Ball Valve Check Valve Globe Valve Butterfly Valve Knife Gate Valve Cryogenic Valve Water valve two or three ways valve hydraulic valve float valve pressure reducing valve.
DIMENSION TABLE
| ITEM SIZE | 3/8" | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" |
|
| A | 7 | 9.2 | 12.5 | 15 | 20 | 25 | 32 |
| B | 24 | 26 | 32 | 35 | 38 | 42 | 50 |
| C | 36 | 36 | 36 | 36 | 36 | 50 | 50 |
| H | 9 | 9 | 9 | 9 | 9 | 11 | 11 |
| D | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 7 | 7 |
| M | 36 | 36 | 36 | 36 | 36 | 50 | 50 |
| E | 9 | 9 | 9 | 9 | 9 | 11 | 11 |
| L | 45 | 50 | 60 | 73 | 78 | 89 | 100 |
MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | BODY | CF8/CF8M |
| 2 | BALL | CF8/CF8M |
| 3 | CAP | CF8/CF8M |
| 4 | BALL SEAT (A) | RPTFE |
| 5 | BALL SEAT (B) | RPTFE |
| 6 | THRUST WASHER | PTFE |
| 7 | STEM | SUS304 |
| 8 | STEM PACKING | PTFE |
| 9 | GLAND | SUS304 |
| 10 | BOLT | SUS304 |
| Prod Model: |
P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thread: |
Asme B1.20.1 BS21. DIN2999/259, |
| Inspection Testing: |
API598, En12266 |
| . Standard: |
En, Mss, API, Awwa, BS |
| . Size: |
1/4''-4'' |
| Packaging: |
Export Poly Wooden Cases, or as Per Customers' Req |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
