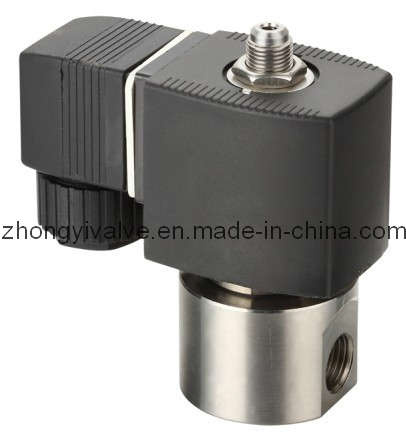

2/2 and 3/2 Solenoid Valve Direct Operated

2/2 and 3/2 Solenoid Valve Direct Operated
Price: Negotiable
Trade Terms: FOB
Min Order: 1 /Piece
Pay Type: T/T
Operated way: Direct operated
Control way: Nc(standard), no
Pipe size: G1/8~g1/4(standard)
Dn: Dn1~4mm
Pn: The highest pn: 4.0mpa
Medium: Neutral gas and liquid
Viscosity: ≤ 21mm2/s
Medium temperature: -10~+80centigrade(+180centigrade)
Circumstance temperature: -10~+50centigrade
Material: Stainless steel
Sealing material: NBR(standard)\FPM\ptee
Standard voltage: AC: 220V(50/60Hz) DC: 24V
Changeable of the voltage: ± 10%
Working period: Coil can work continuously
Connecting: Junction box(plug), IP65
Installation: Head is up straight
Standard:
Item no.
(2/2WAY)
DN
(mm)
PIPE SIZE
(G)
PN
(MPa)
Kv
(m3/h)
circumstance temperature medium temperature
2231001Cr 1 1/8~1/4 0~4.0 0.02 -10~+50 -10~+80
2231002Cr 2 1/8~1/4 0~2.5 0.08
2231003Cr 3 1/8~1/4 0~1.0 0.16
2231004Cr 4 1/8~1/4 0~0.6 0.16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Valve Structure: Direct-Acting Piston Structure
Power Supply: AC Solenoid Valve
Connection Form: Thread
Type: Direct Acting
