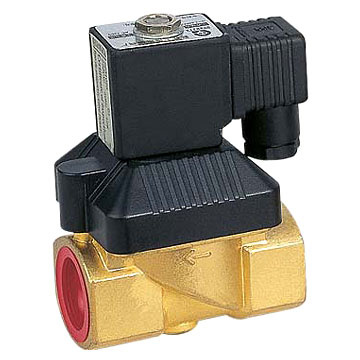

SB116 Series Two-position Two-way Solenoid valve
No-water Hammer impact ,Low noise ,stable working ,large flow ,long service life
Speciality :
Working at Zero Pressure and used below 90degree
It can be used in gas ,water ,oil ,weak acid ,alkali
Low Noise ,No-water hammer impact ,stable working ,large flow ,long service life
Coil Model : BD-A-3
Change to Ex-proof & suitable armature ,it can used as Ex-proof valve ,the coil made from thermosetting plastic encapsulating ,the protection class IP65 ,Plug confirms with ISO standard
Specification :
Media : Gas ,water ,oils ,weak acid .alkali
Working Type :Fake-Direct Action
Pattern :Normally Close
Orifice :10-20mm
Kv Value :2-4.8
Connection Port :G1/4'' ~ 1''
Working Pressure :0 ~1.0 Mpa
Protection Class :IP65
Power :AC : 14-17VA ,DC:8-20W
Insulation Class:F class
Valve Body Material :Aluminum / Brass / Stainless Steel
Seal Material :NBR /VITON
Response Time :0.05S
We are manufacturer for valve series ,such as ball valve ,butterfly valve .solenoid valve ,pulse valve etc.Our goods have been sold to the USA, Germany, Holand, Italy, France, Korea and other countries and regions. Our products, liquid valves, liquid gas check valve, liquid line solenoid valve, liquid relief valve, liquid crystal light valve, liquid solenoid valve, liquid level control valve, liquid flow control valve, liquid pressure relief valve,liquid nitrogen valve, liquid withdrawal valve, liquid injection valve, liquid line service valve, liquid propane valve, liquid dispensing valve, liquid sampling valve are produced according to the ISO9001:2000 standards. We hope that we will be your best partner in china.
The company is located at Xikou, Fenghua, Which is a state scenic spot. The company grew out of Xikou Shuangbo Electronic Element Factory. It is specialized in production of magnet coil and special solenoid valves and accessories of electric appliances with more than 10 years of experience from 1990. The company has excellent production facilities and testing devices, with strict delivery inspection. It has passed ISO9001 quality system certification. Part products have gained CE mark and safety mark. The products have been applied to several hundred pneumatic, hydraulic and electric appliances industries, and new items are developed for many companies. They are well received by cutomers.
The company takes science and technology as backbone and seeks development by quality and reputation. It will treat sincerely every old and new customers with its good quality products and reasonable prices and best services.
