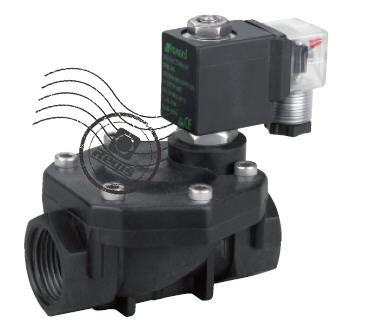

2WP series solenoid valve is ASCO type, the material is Rainforce Nylon, which the mould is fully developed by ourselves, and now it already accepted by most of the customers due to realible quality.
Specifications:
Model | 2WP-10 | 2WP-15 | 2WP-20 | 2WP-25 | 2WP-35 | 2WP-40 | 2WP-50 |
Port size | 3/8'' | 1/2'' | 3/4'' | 1'' | 1-1/4'' | 1-1/2'' | 2'' |
Working Medium | Air, Gas, Water, Hot Water, Liquid |
Type | Normal Close |
Orifice(mm) | 13 | 13 | 20 | 25 | 35 | 45 | 50 |
CV Value | 4.5 | 4.5 | 7.6 | 12 | 22 | 30 | 48 |
Working Pressure | 0.5-9.5bar |
Max. Pressure Resistance | 11bar |
Note | Seal Material: NBR/EPDM/VITON |
Environment Temperature:NBR: 80ºC; EPDM:130ºC;VITON:120ºC |
|
|
