Home Valve Products 2/2 Way Direct Acting, Normally Closed, Diaphragm Industrial Valve, 2 Inch Water Solenoid Valve

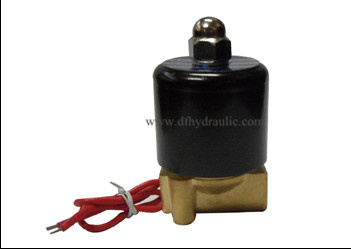

2/2 Way Direct Acting, Normally Closed, Diaphragm Industrial Valve, 2 Inch Water Solenoid Valve
Price: |
US $ 3.2-5.00/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
50/Piece |
Pay Type: |
L/C,T/T,Western Union |
SpecificationModel 2W-160-10 2W-160-15 2W-200-20 2W-250-25 2W-350-35 2W-400-40 2W-500-50Working Medium Air, Water, Oil, GasMotion Pattern Direct Drive TypeType Normal Close TypeAperture of Flow Rate mm 16 20 25 35 40 50CV Value 4.8 7.6 12 24 29 48Joint Pipe Bore 3/8" 1/2" 3/4" 1"11/4" 11/2" 2"Operation Fluid Viscosity 20CSTBelowWorking pressure Air: 0~1.0Mpa\ Water: 0~0.7Mpa\ Oil: 0~0.7MpaMax. Pressure Resistance 1.0MpaOperating Temperature -5~80 degreeVoltage Range: 10%Material of Body BrassMaterial of Oil Seal NBR or VITON Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
Working Medium | Air, Water, Oil, Gas |
Motion Pattern | Direct Drive Type |
Type | Normal Close Type |
Aperture of Flow Rate mm | 16 | 20 | 25 | 35 | 40 | 50 |
CV Value | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
Joint Pipe Bore | 3/8″ | 1/2″ | 3/4″ | 1″ | 1 1 /4″ | 1 1 /2″ | 2″ |
Operation Fluid Viscosity | 20CSTBelow |
Working -pressure | Air: 0~1.0Mpa. Water: 0~0.1Mpa. Oil: 0~0.1Mpa |
Max. Pressure Resistance | 1.0Mpa |
Operating Temperature | -5~80 degree |
Voltage Range | ±10% |
Material of Body | Brass |
Material of Oil Seal | NBR or VITON |
Prod Model: |
2W-025-06 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Port Size: 3/8",1/2",3/4",1"1-1/4",1-1/2: |
Thread Standard: NPT, BSPT, Bsp |
Connection Form: |
Thread |
Type: |
Direct Acting |
Valve Structure: |
Direct Action Diaphragm Structure |
Application: |
Household Usage |
Power Supply: |
AC and DC |
Yuyao DingFeng HyDraulic Co., Ltd. As a professional manufature and exporter, Yuyao Dingfeng Hydraulic Co., Ltd was established in 2007, located in the south bank of Hangzhou Gulf Bridge which is the longest bridge in the world, near the NingboBeilun Port, have convenient transportation.
We can produce all kinds of EATON and SAE standard fittings and adapters.
We specialized in exploiting, manufacturing and selling fluid flow systerm. Dingfeng products includes: All kinds of hydraulic hose fittings, adapters, hydraulic hose, high pressure hose assemblies and other metal parts, as well as the agent for related fluid joint products. We also provide OEM service.
These products are mainly used in aerospace, automotive, shipbuilding, medicine, chemicals, petroleum and other areas.
We are dedicating to manufacture good quality products and provide high level service to win the market and our customers' trust. Our products are very popular in American, Europe, Japan, Australia and so on. Welcome new and old customers, from home and abroad, to invest and cooperate with us.
With the belief of "keep improvement, pursue higher", we strive to create a splendent future with you by our excellent products and satisfy service!
