2/2 way direct acting, normally closed, diaphragm solenoid valve, for water, air, gas, oil,

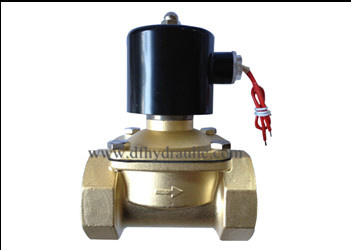

2/2 Way Direct Acting Solenoid Valve 2W500-50-AC380V
The valve body material: Brass
Using fluid: Air, water and oil
Style: Normally closed (turn on the electricity, the solenoid valve will start to work, turn off the electricity the solenoid valve will stop working. ).
Voltage: AC220V DC24V AC380V AC110V allow increase or decrease 10%
Pipe size: 1/8''-2''
Flow aperture: 2.5mm-50mm
Pressure: 0 ~ 1.0 MPa
Fluid temperature: 5 ~ 80 ° C
Note: DC24V please with 2A current power supply, so that the valve will normally running
Supply models for different port size(normally closed)
Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Body Material | Brass |
| Acting Type | Direct |
| Models | Normally closed or Open |
| Thread Standard | NPT, BSPT, BSP |
| Orifice Size | 16 | 16 | 20 | 25 | 35 | 40 | 50 |
| CV Value | 4.8 | 4.8 | 4.8 | 12 | 24 | 29 | 48 |
| Port Size | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1.5" | 2" |
| Fluid Viscosity | 20CST bellow |
| Fluid | Air, water, Gas, Oil |
| Sealing Material | NBR, EPDM or VITON |
| Fluid Mini Pressure | 0 |
| Fluid Max Pressure | Air: 0~0.7MPa, water: 0~0.6MPa |
Yuyao DingFeng HyDraulic Co., Ltd. As a professional manufature and exporter, Yuyao Dingfeng Hydraulic Co., Ltd was established in 2007, located in the south bank of Hangzhou Gulf Bridge which is the longest bridge in the world, near the NingboBeilun Port, have convenient transportation.
We can produce all kinds of EATON and SAE standard fittings and adapters.
We specialized in exploiting, manufacturing and selling fluid flow systerm. Dingfeng products includes: All kinds of hydraulic hose fittings, adapters, hydraulic hose, high pressure hose assemblies and other metal parts, as well as the agent for related fluid joint products. We also provide OEM service.
These products are mainly used in aerospace, automotive, shipbuilding, medicine, chemicals, petroleum and other areas.
We are dedicating to manufacture good quality products and provide high level service to win the market and our customers' trust. Our products are very popular in American, Europe, Japan, Australia and so on. Welcome new and old customers, from home and abroad, to invest and cooperate with us.
With the belief of "keep improvement, pursue higher", we strive to create a splendent future with you by our excellent products and satisfy service!
