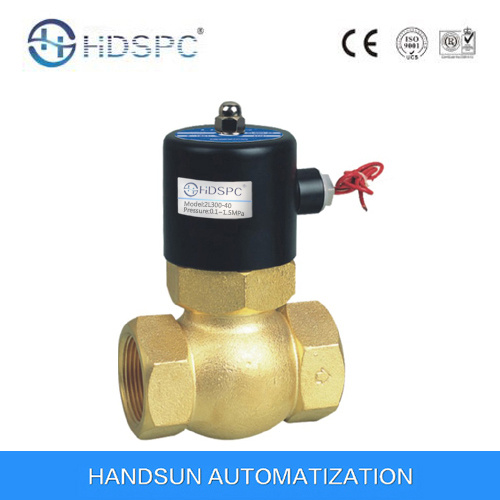

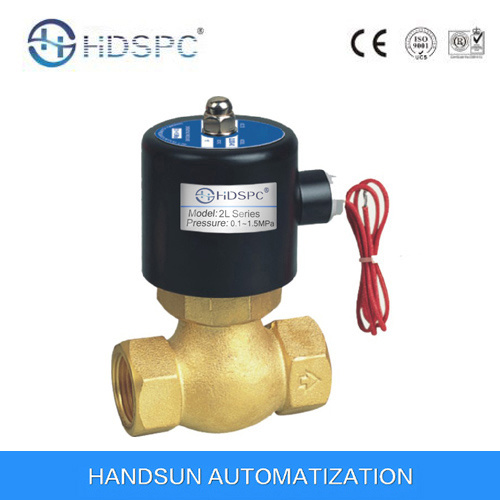

2/2 Way Pilot Operated High Temperature Steam Solenoid Valve (2L)
| Price: |
US $ 15-25/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
2/2 Way Pilot Operated High Temperature Steam Solenoid Valve (2L)
Product Description

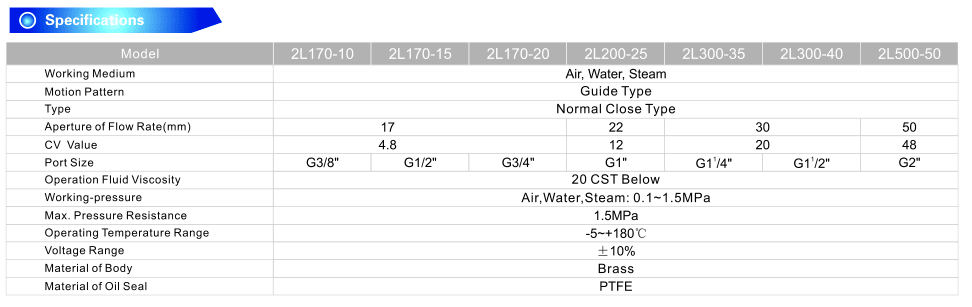

2/2 Way Pilot Operated high temperature Steam Solenoid ValvePackaging & DeliveryPackaging Detail: Neutral carton Size: 31*25*21cmDelivery Detail: Within 30 days after confirmationSpecifications
2way Steam solenoid valve in brass body, using high quality sealing materials and diaphragm to make sure stable quality. Steam solenoid valve 2LCharacteristic: 1. Pilot operated piston construction with low power consumption2. Seal serves longtime at steam ambient; 3. Used for long-time working in pipeline system. Medium: Steam and Hot Water, Oil, etc. Temperature: PTFE Seal: -4F to 250F, -20 to 180VITON Seal: 14F to 300F, -10 to 150Pressure: 2L: 0.03MPa ~ 1.6MPaPort Size: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"Port Thread: BSPP, BSPT, NPT, UNFOrifice (mm): 15, 20, 25, 32, 40, 50Voltage: DC - 12V, 24VAC - 24V, 120V, 240V@60Hz 110V, 220V@50HzTolerance: +/- 10%Coils: Y42B, 35VA(AC), 30W(DC), IP65, 100%EDMaterial: Body - BrassSeal -PTFE or VITONArmature Tube - Stainless Steel 304Plunger - Stainless Steel 430FStop -SS430FSprings - SS 304Shading Rings - Stainless Steel 304
| Prod Model: |
2L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Pilot Operated |
| Connection Form: |
Thread |
| Valve Structure: |
Pilot Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Water Industrial Usage |
