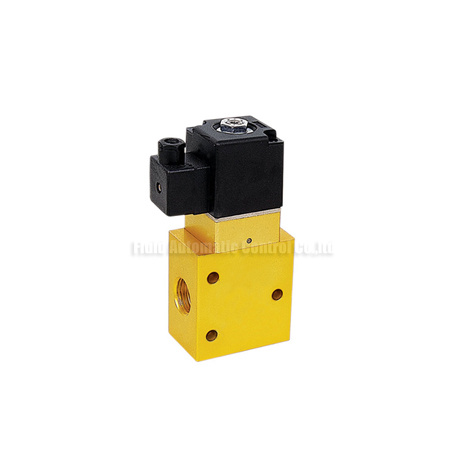

*HPV series high pressure directional control solenoid valve
*High pressure up to 2.4MPa
*Inner Pilot type and External Pilot for option
*Port size from G1/4 to G1/2,External Pilot connecting port size G1/8
*Stop type structure ensure High stability
*Two position Three way function pattern
ORDERING CODE |
| HPV | 23 | JD | 8 | AC220V | P2 |
| Type | Function Type | Structure type | Orifice Size | Voltage | Pliot Operated Pattern |
| HPV:HPV Series High Pressure Directional Control Valve | 23:Two Position Three Way | Electro-control Stop type | 08:G1/4" | AC220V:220VAC | Blank:Inner Pilot Operated |
| AC110V:110VAC |
| 15:G1/2" | DC24V:24VDC | P2:External Pilot Operated |
| DC12V:12VDC |
| AC24V:24VAC |
| SPECIFICATION |
| Model No | HPV-23-JD-08 | HPV-23-JD-08-P2 | HPV-23-JD-15 | HPV-23-JD-15-P2 |
| Position And Way Numbers | Two Position-Three Way |
| Working Medium | Compressed 40 Micron Filtered Air |
| Motion Pattern | Inner Pilot | External Pilot | Inner Pilot | External Pilot |
| Structure Type | Stop type |
| Working Pressure | 0.25~2.4MPa |
| Operating Temperature | 5~50ºC |
| Orifice Size (mm) DN | 8 | 15 |
| Port Size | G1/4" | G1/4", External Pilot connect G1/8" | G1/2" or G3/8” | G1/2"Or G3/8”, External Pilot connect G1/8" |
