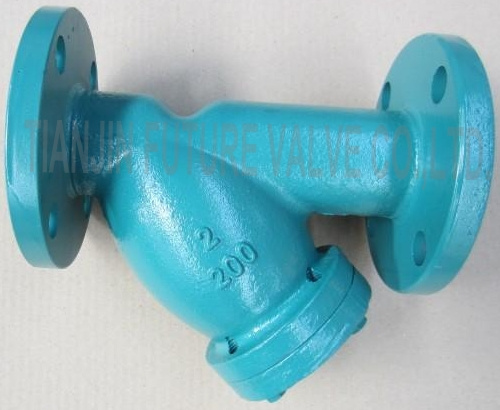

Future Valve - 2 Inch ANSI 125/150 Cast Iron Flanged Y Magnetic Strainerfilter
Detailed Product Description:
The Strainers carry out superficial sieving of the water, retaining those particles that are bigger than the screen holes. We have at your disposal Strainers in"Y" shape. Regarding their installation, the Strainers can be either equipped with flanges fitted on their ends or with internal threads.
Main parts materials
1) Screen: Stainless Steel SS304/SS201.
2) Bolt and Plug: Carbon Steel or Stainless Steel.
3) Gasket: NBR/EPDM/Synthetic Fiber ( Asbestos Free).
4) Body and Cover: Cast iron/ductile iron/CI/DI/GG25/GGG40/GGG50/HT200/QT450.
Specifications
1. Suitable media: Water, oil.
2. Nominal diameter: DN15-DN600(1/2"-24").
3. Working temperature: -20 to 200 centigrade.
4. Tightness check: API 598/ISO 5208/EN12226-1.
5. Flange: DIN2501/EN1092-2 PN10/16/25 or ANSI B16.10.
6. Standard: DIN3202 F1, ANSI CLASS 125, BS4504 PN16.
7. Face-to-face conform to DIN3352/DIN3202 F1(ISO5752)/EN558-1.
8. Working pressure: PN10/PN16/PN25 or 10Bar/16Bar/25Bar or class 125lbs-150lbs.
9. Body coating: Fusion bonded epoxy coating or Bitumen coating at customers' request.
Packaging & Delivery
Packaging Detail: Plywood case.
Delivery Detail: General within 30 days or according to the order quantity.
(Other details, pls contact us freely)
Origin China
Brand Name FV
Material Casting
Media Water
Pressure Medium Pressure
Standard or Nonstandard Standard
Structure strainer
Temperature of Media Normal Temperature
ANSI 125/150 Cast Iron Flanged Y Magnetic StrainerFilter
Related Keywords: Strainer, y strainer, flanged y strainer, pn16 y strainer
Price Condition FOB Tianjin
Packaging plywood wooden cases
Delivery lead time 7-30 days
Minimum order 10 PCS
Supply ability 200 Tons/Month
Tianjin Future Valve Co., Ltd. is specialized in research, development, production and sale of butterfly valve, check valve, gate valve for years. With professional staff, scientific management system, strong production capacity, strict quality control, on-time delivery, quick response service and individual approach to every customer, we have confidence that we could establish long-term, win-win partnership with you!
