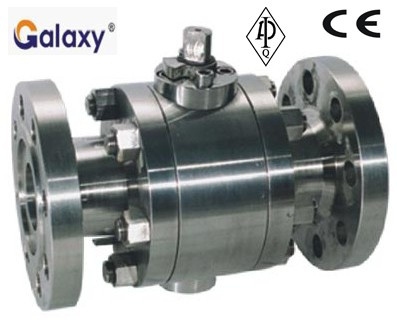

Galaxy series ball valves featuring forged steel split body side entry design. Specially designed for high pressure service so as to replace traditional trunnion mounted design to save cost. Upon special request, this series of valve can also designd to have cryogenic or high temperature service.
Design Standard:
Basic design: BS 5351
Test: API 598, BS 6755, API 607
Product Range:
Size: 1/2"~4"
Rating: ANSI 600LB~2500LB
Body material: Forged carbon steel, stainless steel
Trim: A105+ENP, 13Cr, F304, F316
Operation: Handwheel, gear, pneumatic operator
Design Feature:
Full port or reduced port
Fire safe certified
Blowout-proof stem
Anti-static
Low emission control
ISO 5211 top flange
Optional locking device
Application:
Refinery
Chemical
Petrochemical
Power plant
Pharmaceutical
|
Parts Name |
Carbon Steel |
Low Temp. Steel |
Stainless Steel |
|
Body |
ASTM A105 |
ASTM A350 LF2 |
ASTM A182 F316 |
|
O-ring |
VITON |
VITON |
VITON |
|
Bonnet |
ASTM A105 |
ASTM A350 LF2 |
ASTM A182 F316 |
|
Nut |
ASTM A194 2H/2HM |
ASTM A194 4 |
ASTM A194 2HM/8 |
|
Stud |
ASTM A193 B7/B7M |
ASTM A320 L7 |
ASTM A193 B7M/B8 |
|
Seat |
RPTFE |
RPTFE |
RPTFE |
|
Ball |
ASTM A105+ENP |
ASTM A350 LF2+ENP |
ASTM A182 F316 |
|
Stem |
ASTM A182 F6a |
ASTM A182 F6a |
ASTM A182 F316 |
|
Stem washer |
304+PTFE |
304+PTFE |
304+PTFE |
|
O-ring |
VITON |
VITON |
VITON |
|
Packing |
PTFE/Graphite |
PTFE/Graphite |
PTFE/Graphite |
|
Packing Gland |
Carbon Steel |
Carbon Steel |
Stainless Steel |
|
Nut |
ASTM A194 2H/2HM |
ASTM A194 4 |
ASTM A194 2HM/8 |
|
Stopper plate |
Carbon Steel |
Carbon Steel |
Stainless Steel |
|
Lever |
Carbon Steel |
Carbon Steel |
Stainless Steel |
Zhejiang Galaxy Machinery Manufacture Co., Ltd., which is established in 1987, mainly deals in manufacturing and exporting of various kinds of petroleum machinery equipments and valves. We have 2 big workshops, one is especially for petroleum machinery equipements for manufacturing air-eliminator dispenser vane pumps, emergency shut-off valves, automatic nozzles; The other one is especially for valves, such as ball valves, gate valves, globe valves, check valves, and plug valves.
We are the ISO9001 certificated factory. All our production process are accord with the international quality standard. Allour products passed CE, and API. High quality and excellent after-sales service have made our products getting good market nearly in every part of the world, such as the USA, Australia, Africa, Germany, Singapore, India, Norway, Saudi Arabia, Kuwait, and Lebanon. With years of export experience, for valves we are good at manufacturing at such standards as GB, DIN, ANSI, BS, AS, JIS, ISO, and API. We can make orders as per clients' special requirements.
OEM/ODM is available for us.
"Galaxy's quality, forever guarantee", we welcome all clients visit our Co. And cooperate with us, we wish to achieve the win-win cooperation by joint efforts. Welcome to our factory any time at your convenience.
