2 PC Split Body Flanged End Ball Valve
| Price: |
US $ 35000-45000/Ton |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Description:
Features
1. Materials: Stainless steel
2. Process: Investment casting /lost wax casting/precision casting/Metal casting
3. Standard: DIN, ASME, ASTM, AISI, GB, BS, JIS
4. Customers' drawings, sample and OEM service Available
5. ISO-5211 Mounting Pad for Actuator Available
6. The advantages of adopted production technology:
(1) It is applicable to various types, various kinds of castings.
(2) Casting size with high accuracy.
(3) Casting surface is with high fineness.
(4) It can produce the shape-complex and close dimensional castings.
(5) Competitive price & timely delivery
(6) Excellent quality & long using time
| Size | 1/4"-4" |
| Material | 304/316/304L/316L/WCB/CF8/CF8M/CF3/CF3M |
| Pressure | 1000WOG/1000PSI, 1.6-6.4Mpa |
| Medium Temp | -20° C ~ +180° C |
| Ambient Temp | -20° C ~ +60° C |
| Availably Connection | Flanged |
| Port | Full Port, Reduced Port |
| Suitable Medium | Water, Oil, Air and Some Corrosive Liquid |
| Design Standard | ASME B16.34 |
| Inspection and Testing | API 598 |
We will give you a reply within 24 hours after receiving your inquiry.Packaging & Shipping:Packaging: Wooden Package
Shipping: 30 working days after comfirm the order.Company Information:Zhejiang Ouming Fluid Casting Industry Co.,Ltd was founded in 1983,the head office is located in valves and pumps capital-Wenzhou.It has more than 150 staffs and covers an area of 15000 square meters.
We professionally manufacture valves, pipe fittings, castings and other fluid system equipments, including ball valves, gate valves, globe valves, check valves, diaphragm valves, Plug valves, sanitary butterfly valve, elbows, tees, union and other pipe fittings. All Products Strictly meet the GB, ANSI, JIS, DIN, BS, ISO ,etc.
We commit to provide supreme quality of products and 100% customer satisfaction service , based on the principle of honesty and trustworthiness, we focus on controlling quality ,improving management and contentiously developing new market and enlarging our product range. Welcome to contact and join us for the promising business.
| Prod Model: |
OM-2PSFBV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/4"-4" |
| Casting Dimension: |
According to Drawing |
| Pressure: |
1000wog/1000psi, 1.6-6.4MPa |
| Medium Temp: |
-20° C~+180° C |
| Ambient Temp: |
-20° C~+60° C |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |

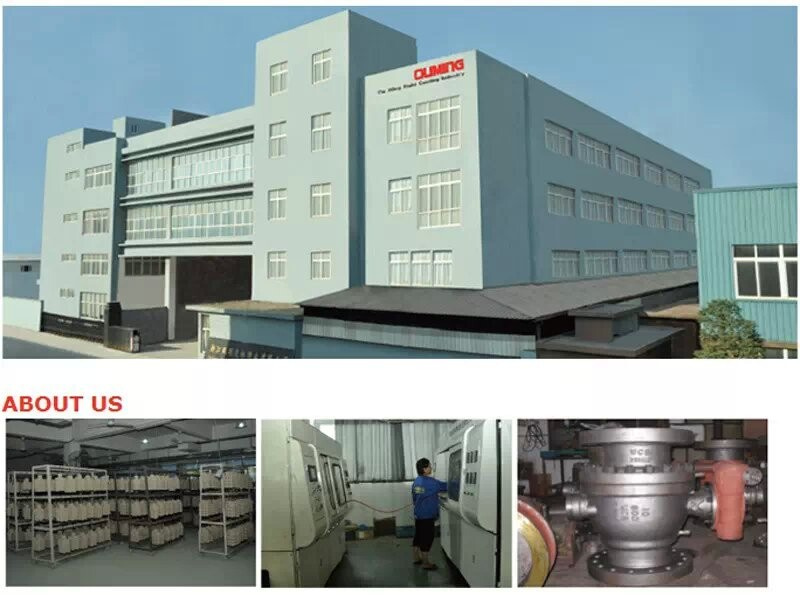

Zhejiang Ouming Fluid Casting Industry Co., Ltd was founded in 1983, the head office is located in valves and pumps capital-Wenzhou. It has more than 150 staffs and covers an area of 15000 square meters
We professionally manufacture valves, pipe fittings, castings and other fluid system equipments, including ball valves, gate valves, globe valves, check valves, diaphragm valves, Plug valves, sanitary butterfly valve, elbows, tees, union and other pipe fittings. All Products Strictly meet the GB, ANSI, JIS, DIN, BS, ISO, etc. They are widely used in Petrochemicals, Chemical, LNG& Cryogenics, Pulp & paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc. Besides, they have been exported to Europe, North America, Middle East, Southeast Asia regions, etc.
We are a modern manufacturer in valve, pipe fitting and casting with the silica sol investment casting process. We own modern high-precision casting equipment and advanced machining equipment and testing equipment. Eg, CNC machining centers, CNC lathes, Spectrometer, Ultrasonic Tester, Magnetic Particle Testing, etc. These equipments ensure the product's good quality and we are approved by ISO9001, CE and TS, etc.
We commit to provide supreme quality of products and 100% customer satisfaction service, based on the principle of honesty and trustworthiness, we focus on controlling quality, improving management and contentiously developing new market and enlarging our product range. Welcome to contact and join us for the promising business.
