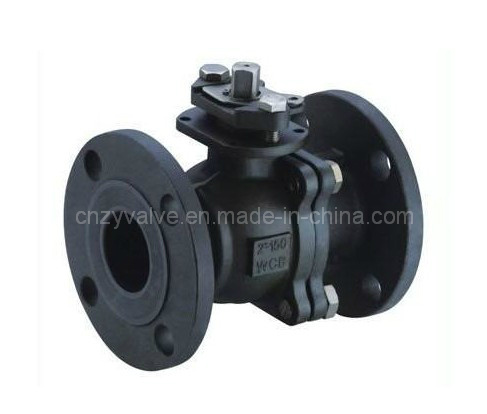

2 PCS 150lb Forged Steel Flanged Ball Valve Ball Valve
Price: |
US $ 1-1000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Specifications
Two-Piece Floating Ball Valve
1. Design: ASME B16.34
2. Material: A351-CF8; CF8M; CF3; CF3M; A216-WCB
3. Flange End, JIS 10K/20K
Two-Piece Floating Ball valve
Features:
1. 1/2"-12", Two-Piece
2. Carbon Steel / Stainless Steel
3. Solf / Metal Seated
4. Full Bore / Reduced Bore
5. SW / NPT / RF / RTJ / BW ends
6. ISO Mounting Pad
7. Blowout-Proof Stem
8. Anti-Static Device
9. Locking Device
10. Operation: Gear, Handwheel, Lever Operated or Pnumetic Actuator
Part Names | Part Materials |
Body | WCB/A105 | LCB/LF2 | WC6/F22 | CF8/F304 | CF8M/F316 | CF3/F304L | CF3M/F316L |
Bonnet | WCB/A105 | LCB/LF2 | WC6/F22 | CF8/F304 | CF8M/F316 | CF3/F304L | CF3M/F316L |
Ball | A105+ENP | SS304 | F22 | SS304 | SS316 | SS304L | SS316L |
Stem | A105 | F304 | F6a | F304 | F316 | F304L | F316L |
Seat/Seat Ring | 13%Cr | SS304 | 13%Cr | SS304 | SS316 | SS304L | SS316L |
Packing | Graphite/PTFE |
Gasket | SS304+Graphite/SS304+Graphite |
Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M |
Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. |
Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C |
Standards:
1. Basic Design: ASME B16.34
2. Inspection & Testing: API 598
3. Face to Face: ASME B16.10
4. Flange Dimensions: ASME B16.5
5. Body Material: A351-CF8; CF8M; CF3; CF3M; A216 WCB
Prod Model: |
Q41F-150lb-NPS2'' |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Connection Form: |
Flange |
Channel: |
Straight Through Type |
Structure: |
Floating Ball Valve |
Type: |
Floating Ball Valve |
Application: |
Household Usage |
Material: |
Forged Steel |
China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in NO. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.
The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.
The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
