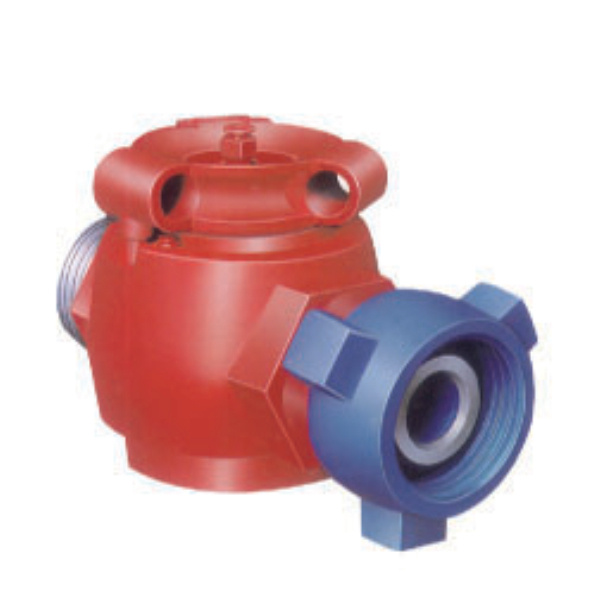

Plug valves
Plug valve is an indispensable important part used to connect high pressure manifold when well cementing and fracturing operation are carried out in oil field. With a compact structure and low torque, it can be maintained easily and opened quickly. So easy to operate that it is the most ideal valve among cementing and fracturing manifolds right now.
Plug valve is mainly composed of valve body, handwheel and plunger piston.
The inlet and outlet of plug valve are connected with 1502 unions (can be customized according to customer demand), valve body and bowl matched to the cylinder, and sealing element is inlaid through the bowl.
Between bowl and plunger piston is cylindrical mental sealing element, and its feature is that fit precision is high and sealing is reliable.
Remarks: Valve can also be opened or closed easily under 10000psi.
| Rated Working Pressure | 2000PSI-20000PSI |
| Rated Working Temperature | -46Deg.-121Deg. |
| Working Medium | Oil, gas, mud and water |
| Material Class | AA-FF |
| Product Specification Level | PSL1-3 |
| Performance Requirement Level | PR1 |
Jianhu jielin petrochemical machinery Co., Ltd. is located in jianhu private industrial park, jiangsu province, known as a land flowing with milk and honey. It is a modern large-sized enterprise specialized in researching and developing, manufacturing and selling various oilfield machines and spare parts. Our company has been authorized by China classification society for application of ship products and accessories as well as certificates of API-6A, 16A and 16c, etc. We mainly produces API 6A high and middle pressure valves, with the technical performance being that nominal working pressure is pn2.5-105MPa and nominal diameter is dn3-1000mm; In addition, our company also manufactures API 6A wellhead equipment for oil (gas) extraction, choke and kill manifold, mud manifold, drilling accessories and blowout preventer, etc.
With advanced technological equipment and a strong technical strength, our products in accordance with international standard ISO/df, u. S. ANSI and API, national standard GB and other professional standards. Also our products are widely used in oilfield, chemical, shipbuilding, metallurgic and power station, etc., besides, special products can also be provided according to user demand.
Our company always adheres to the concept of "management enhancement, quality emphasis, market exploitation and brand establishmen". With quality products, favorable prices and premium services, we sincerely seek cooperation with friends from home and abroad.
