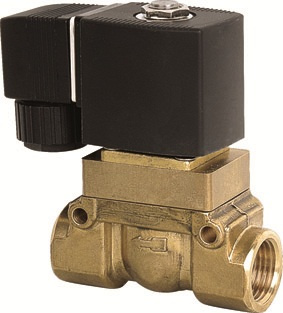

Media temperature may reach 180 Degree.
Piston type structure, long life. Low min working pressure.
Can be for steam, hot air and other hot medium with viscosity≤ 1mm2/s.
Coil: BD-A-3
Thermosetting plastic encapsulating Plug conforms with ISO standard.
IP65 protection class with plug.
Change to ex-proof coil & suitable armature, Can be used as ex- proof valve.
Model |
Orifice (mm) |
Connection Port |
Working Pressure (MPa) |
Ambient Temperature |
Medium Temperature |
Kv Value (m3/h) |
Power Consumption |
Response Frequency (Hz) |
Power Voltage |
|
AC(VA) |
DC(W) |
|
BT116-5008 |
8 |
G1/4 |
0.05~1.6 |
-20~+55 |
0~+180 |
3.6 |
14 |
12 |
≥1 |
AC(V)50Hz
24\36\
110\220\
380
DC(V)24\12 |
|
BT116-5010 |
10 |
G3/8 |
3.6 |
≥1 |
|
BT116-5015 |
13 |
G1/2 |
3.6 |
≥1 |
|
BT116-5020 |
25 |
G3/4 |
11 |
≥1 |
|
BT116-5025 |
25 |
G1 |
11 |
≥0.5 |
Ningbo Bojat Mechanical Technology Co., Ltd. is in the top list of the domestic market. It has professional employees in R&D, manufacture, sales and relative service of the products such as solenoid valves and pneumatic cylinders. Its headquarters locates in Xikou town of Ningbo city, one of the national AAAAA spots which has the profound historical civilization.
Bojat develops from an Auto parts company, which had provided the parts and accessories for Zhengzhou Yutong, Xiamen Golden Dragon, Suzhou Jinlong and other well known auto manufacturers. The company spent several billion yuan to set up Ningbo Bojat Mechanical Technology Co., Ltd. in 2003. It covers an area over 10000 square meters and has 100 employees. We have the most advanced international numerical controlling lathe and working center, which gives a new standard for the pneumatic industry.
Bojat has passed the quality certification of ISO9001: 2000 and keeps improving in the material choosing. Its core accessories such as seal and electromagnetic loop are both imported from abroad with the best quality. First-class talents, advanced equipment, strict quality control system, all provide a solid foundation for the production of high quality pneumatic products. We have received many awards from the national pneumatic association and have been put in the list of the best supplier for many large industrial enterprises.
