Home Valve Products 2 Way 1 Inches Electric Actuator Water Ball Valve with Feedback Signal (T25-S2-B)

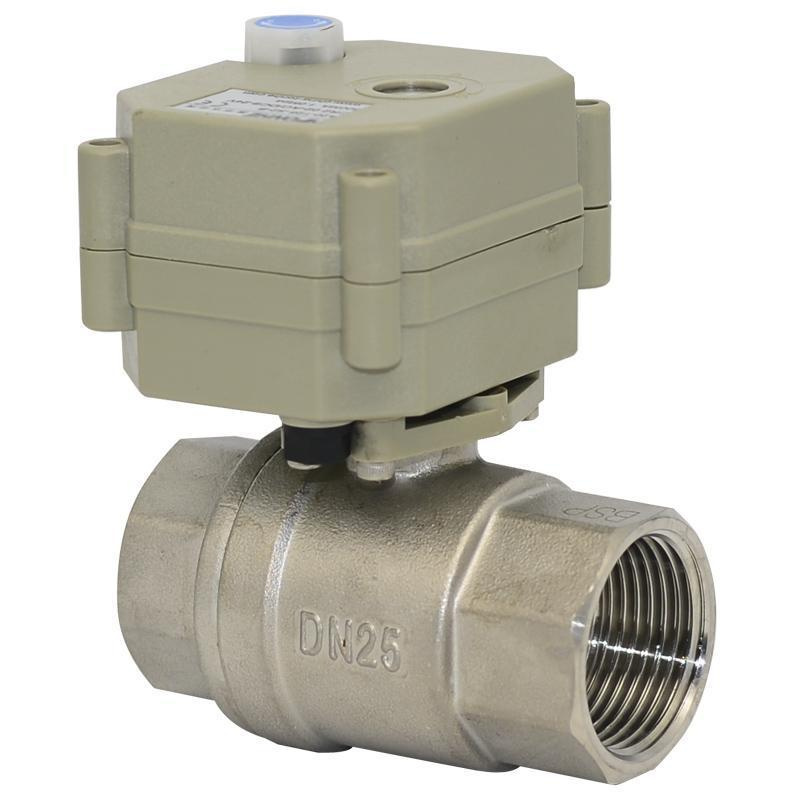

2 Way 1 Inches Electric Actuator Water Ball Valve with Feedback Signal (T25-S2-B)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Tonhe Mini electric actuated water ball valve 1/4''-2'', different wiring, different working voltage :DC5V/12V/DC24V/AC/DC9-35V,IP67,NSF61, 1.3MpaDesign feature
1 All-copper gear design, high accuracy output torque, especially for multi-channel scaling system.
2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing.
4 Good sealing performance
For occasions
1 IC card water meter, heat meter.
2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, small-scale industrial automation equipment, environmental protection.
Detail description
size: 1''
Medium pressure: ≤ 1.3MPa
Internal diameter: 23mm
Circulation medium: Fluid
Rated voltage: DC5V/DC12V/DC24V/DC/AC9-35V
Working current: ≤ 50mA
Open/close time: ≤ 5S
Extra long time: 100000 times
Body material: SS
Actuator material: Alloy ABS
Airtight: Pressure 0.20PA, pressure maintaining 15s, Spillage≤ 0.122ml/s
Actuator rotation: 90°
Environment temperature: -10ºC~55ºC
Liquid temperature: 2ºC~90ºC
Manual override: YES
Line Control: CR201/CR202/CR301/CR302/CR303/CR501/CR502
Prod Model: |
T25-S2-B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Valve Size: |
1/2''-2'' |
Working Life: |
100000 Cycles |
Protection Classs: |
IP67 |
Certfication: |
CE, NSF61 |
Actuator Power: |
Motor/Electric Power Valve |
Material: |
Stainless Steel |
Connection Form: |
Thread |
Channel: |
Straight Through Type |
Structure: |
Floating Ball Valve |
Type: |
Floating Ball Valve |
Application: |
Household Usage |
Nominal Pressure: |
1.0MPa |
Function: |
Drive |
TaizhouTonhe Flow Control Equipment Co., Ltd. is a professional manufacturer and exporter of electric control valves from 2008, We always pay high attention to the quality control and new products R&D. Specialized in motorized valves, electric fluid control valves, electric actuator, with intelligent design, manufacture, sales and technical service.
Our main products are Tonhe series straight-through motorized valve, Has compact size with smart shape, Perform reliably, with long life time, intelligent control, high torque actuators, low noise, no leak, and many other features. They are widely used in automatic water pump tanks, automatic watering, heat meter, central air conditioning fan coil, fire sprinkler, water treatment, water efficiency, solar instrument, Agriculture Irrigation equipment, industrial automatic control equipment, and so on.
All along, the research unit, institute strong support and concerted efforts of all colleagues, continually improved products, innovation, and a number of products for thentility model patents, and we will always maintain the idea that the pursuit of perfection to develop more products for the world to intelligent control fluid. Mechanized production lines in operation, to secure stability and excellent product quality to meet customer requirements.
Personnel training, stability, is an important strategy of company' growth and development, we take the talent as our company greatest wealth.
Talent is the fundamental driving force of enterprise development, enterprise is also the cradle of talent, In order to make personal pursuit and enterprise development to be harmonious, we establish long term cooperation with the School of Continuing Education of Tsinghua University, Taiwan Jian-feng MBA Group, and other Group, Every year, we select a number of staff to go to training, learning, in order to achieve growth of employees and enterprise together.
We will uphold the "customer first, forge ahead" business philosophy, adhere to the "customer first" principle, to establish a positive corporate image, enhance corporate cohesion, with a view to alliance with the community to reach a long-term cooperative relations of mutual trust and seeking common development, create brilliant.
