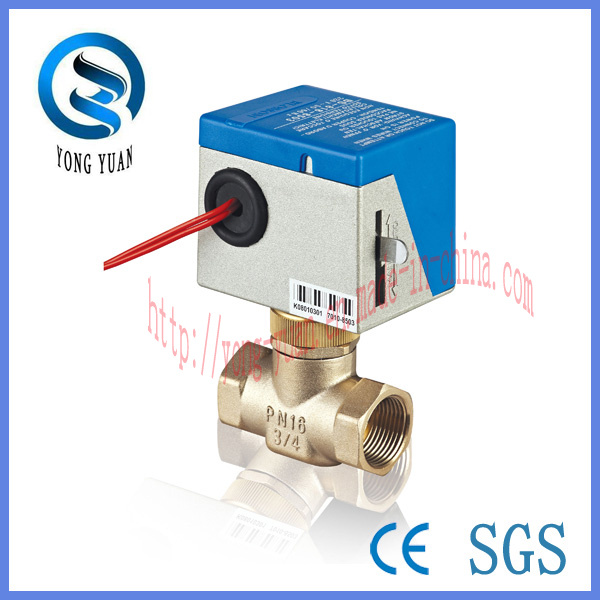

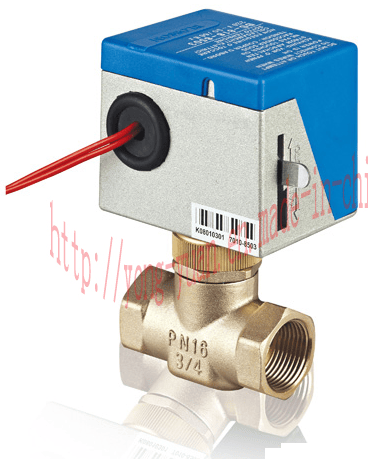

2-Way / 3-Way Brass Electric Control Motorised Ball Valve (BS-818)
Price: |
US $ 14.6-15.6/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
100/Piece |
Pay Type: |
T/T,Paypal,Money Gram,Western Union |
Product description BS-818-20 series motorized valve is used to control the cool/heat water flow through the fan coil unit, When thermostat sends the controlling signal to the motorized valve, the valve is opened , when the signal disappears, the valve returns back to its original place to close the valve,so as to control room temperature indirectly. Product featuresValve Body: Forged brass;Valve Stem: Stainless steel(AISI302);Sealing material: fluorine rubber;Drive base: die cast aluminum alloy;Drive cover: ABS flame retardant.Technical parameters
| BS818-15 | BS818-20 | BS818-25 | BS818-15S | BS818-20S | BS818-25S |
Port Size | 1/2" | 3/4" | 1" | 1/2" | 3/4" | 1" |
Flow coefficient (Kv) | 1.5 | 2.5 | 4.8 | 1.5 | 2.5 | 4.8 |
Shut off pressure (Mpa) | 0.1 | 0.08 | 0.08 | 0.1 | 0.08 | 0.08 |
Valve form | 2-way ; | 3-way ; |
Power Supply | 110-240VAC±10% 50/60HZ, 24VAC 50/60HZ |
Pressure | PN16(1.6MPa) |
Power consumption | <7W |
Grade of Protection | IP55 |
Body material | Forged brass |
Temperature of Media | 1-95ºC |
Work medium | Chilled/hot Water |
Ambient temperature | 5~60ºC,10%~95%RH No dew |
Nominal Pressure: | 2.5 |
Prod Model: |
BS-818 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Grade Of Protection: |
IP55 |
Material: |
Brass |
Connection Form: |
Thread |
Channel: |
Tee Type |
Structure: |
Flexible Ball Valve |
Application: |
Household Usage |
Nominal Pressure: |
1.6MPa |
Ningbo Yong Yuan Energy-Saving Technology Co., Ltd established in 2014 years and located in NINGBO CITY, China. Factory is located in Lanxi Zhejiang Jiangnan Industrial Park. We are specialized in manufacturing wide range of Air conditioning fittings, such as thermostat, motorized valve, valve actuator, valve actuator motor, etc.
We have got the China Center CQC(CCC) certificate and EU CE certification, etc.
We guaranteed products at a competitive price and high quality. Our products are very good sold in China for more than 10 years, Now it is starting to develop the international market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
Warmly welcome old or new customers' Call or email to make the long business together!
