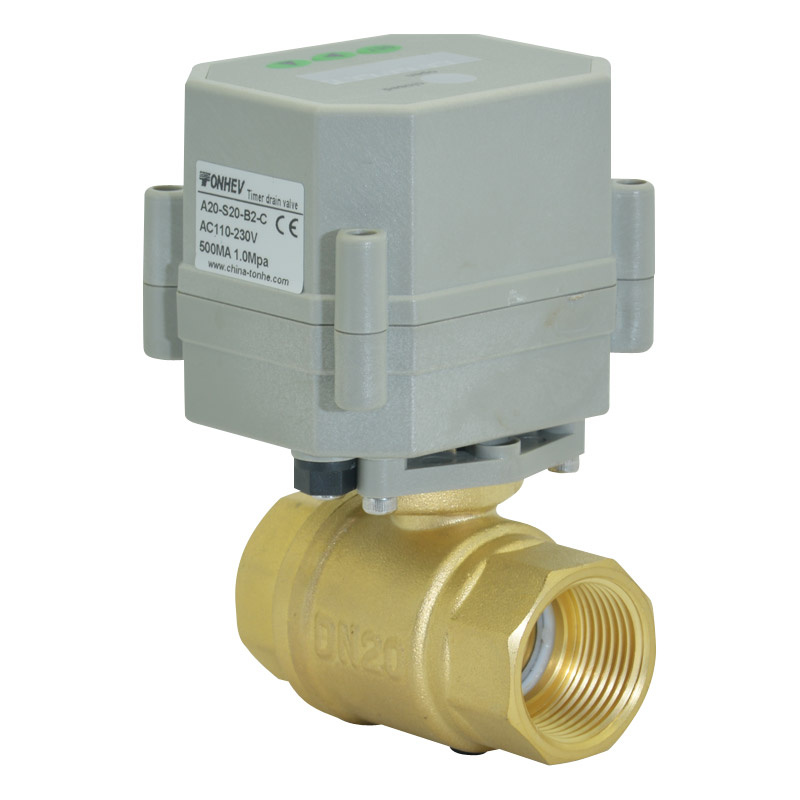

Product characteristics:
1. Mini size and perform reliably for small equipment
2. Easy to install
3. All metal gear
4. Long life time - 70000-100000 circles
5. Floating seal structure, good sealing, protection class IP67
6. Low working current, suitable for battery supply set
7. Manual override is safe and convenient
8. Passed CE certification and NSF61-G certification
Tonhe Timer Instruction
1.Parameter specifies:
Working voltage :110~230V, 9-24V
The time for keeping valve open :0 H : 0M :0S --99 H 59 M 59 S
The time for keeping valve closed : 0 H : 0M :0S --99 H 59 M 59 S
2.Technical Parameters:
| Product size | NPT/BSP 1/2"' NPT/BSP 3/4'' NPT/BSP 1" (Optional ) |
| Maximum working pressure | 1.0 MPa |
| Circulation medium | Fluid, air |
| Rated voltage | DC12V DC24V AC110-230V (optional) |
| Working current | ≤500MA |
| Life time | 70000 times |
| Valve Body material | Brass Nickel plated Brass 304 Stainless steel (Optional) |
| Actuator material | Engineering Plastics |
| Sealing material | EPDM & PTFE |
| Actuator rotation | 90° |
| Max. torque force | 2 N.m |
| Cable Length | 0.5m,1.5m,7m (Optional) |
| Environment temperature | -15ºC~50ºC |
| Liquid temperature | 2ºC~90ºC |
| Manual override | No |
| Indicator | Yes |
| Protection class | IP67 |
3.Parameter function control table:
| Function code | Content | Value | Unit | Remarks |
| t on | valve keeping open time | 00:00:00 - 99:59:59 | H:M:S | |
| toFF | valve keeping closed time | 00:00:00 - 99:59:59 | H:M:S | |
| PonS | Power -on Action | On/off | | |
| Prot | Stall current setting | 0-599 | MA | When the current is bigger than the setting value 1.6S, the motor will stop working , and the display will show Err. |
4 Stalling protection function
When the actuator is detected stalling, it will run in reverse direction .when reach to the open or closed position , and do the close or open action again , meanwhile displaying flashed 0000-0001 on screen ( indicating the current retrying times ) . If it fail at third retrying , the valve will stop running and display ERRL on the screen .
Suitable conditions:
1. IC card, water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture irrigation equipment
5. Drinking water equipment, water heater, washing machine etc.
