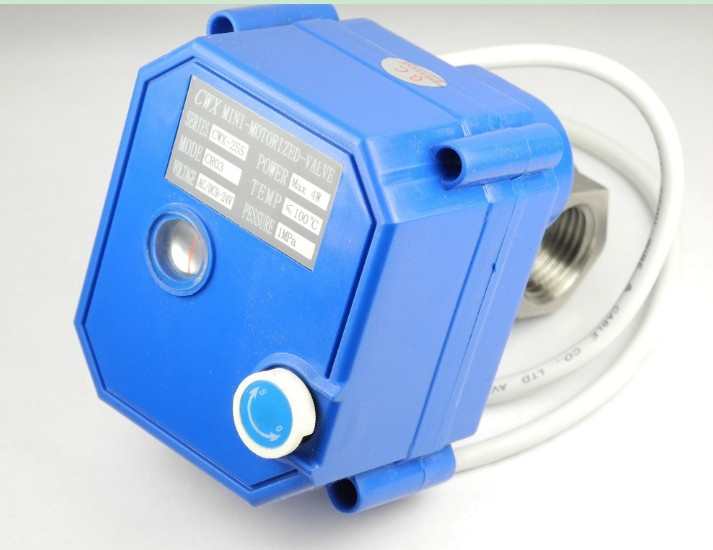

2-Way Motorized Ball Valve with Manual Override (CWX-25S)

Specifications:
Model: CWX-15Q/N
Size: DN8-25 (1/4, 1/2, 3/4, and 1 inch)
Material: Stainless, Brass,
Voltage: DC3-6V, DC12V, DC24V, AC/DC 9-24V, DC5V, AC85-265V, DC3-6V
Rated Current: 45-100 Ma, Power: Max 4W
Output Torque: 1.5-2Nm, Opening/closing time: 3-5 seconds.
Wiring: 2~5 wires,
IP65 Enclosure
Working pressure: 1.0Mpa( 150 Psi)
Medium temperature: 0-90 Centigrade
BSP or NPT thread
Manual override is easy and convenient


Advantage:
Small/compact dimension and light weight, only 1/4 of traditional actuators(around 3 inches tall&wide), can be suitable for small equipment.
Floating seal construction, no leakage, big flow capacity, at least 3 times bigger than normal,
Anti-water hammer slow close function,
Failsafe operation(auto return) can be avialable, the valve will normally closed when power cut off, and it only requires 2 wires to power it.
Extra long life- Min 100, 000 times, the Lower price while mainting excellent working performance as the valves are directly sold from our factory
Mounted any attitude, easy to install and replacement.

Application:
Will complement your existing solenoid valve as it will also suitable for dirty or contaminated water, viscous fluids, gravity feed application, rain water switch over units, some corrosive fluides or low power/solar/battery operate circuits. Such as:

Different Water control system
Centre heating system
Automated Leak Detection & Water Shut-off System
Electric Brewing system
Campus IC Card system
Water saving system
Water heater&boiler system
Sprinkle system
Automatic irrigation and water purification&filtration ststen
HVAC
