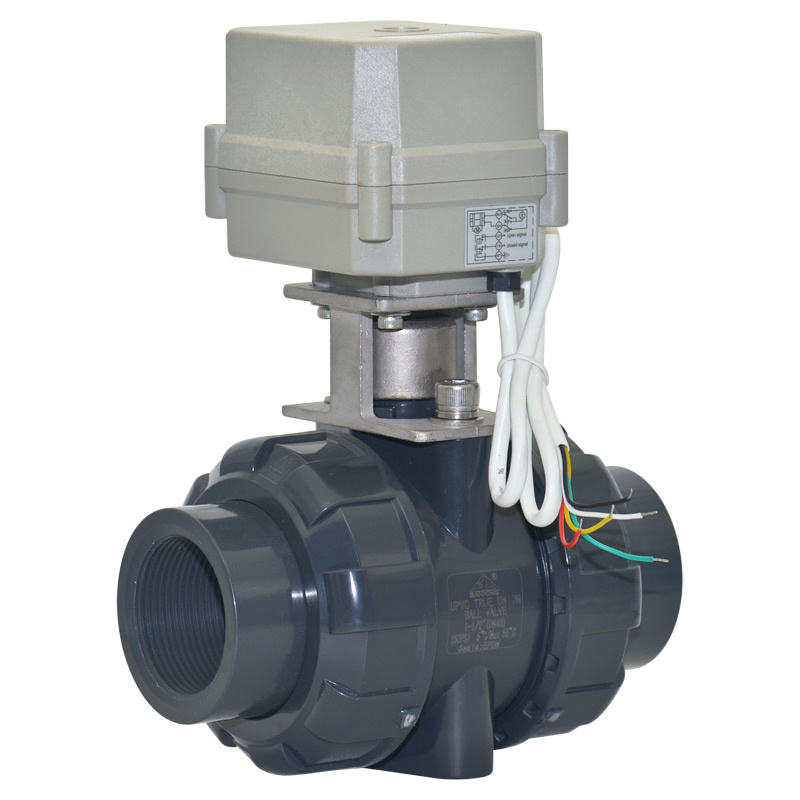

2 way pvc electric actuated water ball valve, different wiring control, DC12V/24V/AC/DC110V-230V, IP67, 1.5 Mpa ,CE , NSF61,
Design feature:
1 All-copper gear design, high accuracy output torque, especially for multi-channel scaling system.
2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback Signal in place for computer intelligence unit testing.
4 Good sealing performance
For occasions:
1 IC card water meter, heat meter.
2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, smallscale industrial automation equipment, environ-metal protection.
Product specifications | 3/4' ' |
| Medium pressure | ≤ 1.3 MPa |
| Internal diameter: | 15mm |
| Circulation medium | fluid |
| Rated voltage | 110v-230VAC/DC12V/DC24V( for selection) |
| Working current | ≤ 500MA |
| Open/close time | ≤ 15 S |
| Extra long time | 50000 times |
| Body material | 304 stainless steel |
| Actuator material | Engineering Plastics |
| Airtight | Pressure 0.20Pa, pressure maintaining 15s, Spillage≤ 0.122ml/s |
| Actuator rotation | 90° |
| Environment temperature | -15centidegree-50 centidegree |
| Liquid temperature | 2 centidegree-90 centidegree |
| Manual override | No |
| Wiring Control | CR2 02 /CR3 03/CR4 01 |
Electronic power controll water ball valve , motorized power actuator water ball valve , motor actuator control water valve
TaizhouTonhe Flow Control Equipment Co., Ltd. is a professional manufacturer and exporter of electric control valves from 2008, We always pay high attention to the quality control and new products R&D. Specialized in motorized valves, electric fluid control valves, electric actuator, with intelligent design, manufacture, sales and technical service.
Our main products are Tonhe series straight-through motorized valve, Has compact size with smart shape, Perform reliably, with long life time, intelligent control, high torque actuators, low noise, no leak, and many other features. They are widely used in automatic water pump tanks, automatic watering, heat meter, central air conditioning fan coil, fire sprinkler, water treatment, water efficiency, solar instrument, Agriculture Irrigation equipment, industrial automatic control equipment, and so on.
All along, the research unit, institute strong support and concerted efforts of all colleagues, continually improved products, innovation, and a number of products for thentility model patents, and we will always maintain the idea that the pursuit of perfection to develop more products for the world to intelligent control fluid. Mechanized production lines in operation, to secure stability and excellent product quality to meet customer requirements.
Personnel training, stability, is an important strategy of company' growth and development, we take the talent as our company greatest wealth.
Talent is the fundamental driving force of enterprise development, enterprise is also the cradle of talent, In order to make personal pursuit and enterprise development to be harmonious, we establish long term cooperation with the School of Continuing Education of Tsinghua University, Taiwan Jian-feng MBA Group, and other Group, Every year, we select a number of staff to go to training, learning, in order to achieve growth of employees and enterprise together.
We will uphold the "customer first, forge ahead" business philosophy, adhere to the "customer first" principle, to establish a positive corporate image, enhance corporate cohesion, with a view to alliance with the community to reach a long-term cooperative relations of mutual trust and seeking common development, create brilliant.
