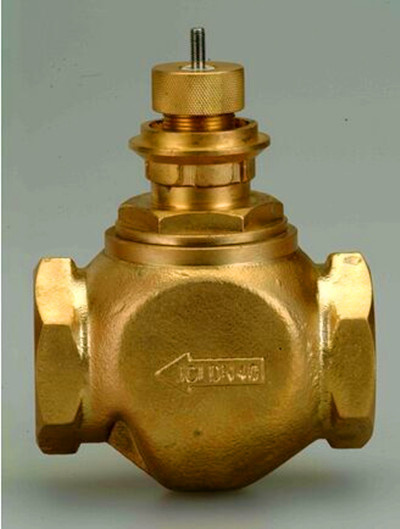

2 Ways/3 Ways Brass Water Heater Electric Regulating Valves (CV0503)
Price: |
US $ 56-56.12/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
50/Piece |
Pay Type: |
T/T,Western Union |
2 Ways/3 Ways Brass Water Heater Electric Regulating Valves (CV0503)1. Product Summary: CV series of cast copper regulating valves are suited to use together with CK30 series of actuators to adjust the cool water, hot water or steam of the pipe system, and adjust the liquid of the heating supply system, air-conditioning system or ventilation cleaning system. 2. Technical Parameter: Nominal Pressure: 1.6MpaConnection way: Tube screw thread GMedium Temperature: Normal temperature (0~90 º C)The direction of water flow: According to the direction of the arrow (2-way); Diffluence, confluence(3-way)Medium: Cold water, hot water or 50% glycol water liquor. Leakage Capacity: ≤ 0.05%Kvs (within the stated pressure difference).Model | DN(mm) | Kv(m 3 /h) | Journey (mm) | Closing D. P. (Kpa) | Main Dimension |
L | H0 | H1 | Weight(Kg) |
CV0252 | DN25 | 8 | 20 | 1000 | 104 | 135.5 | 52.5 | 3.5 |
CV0322 | DN32 | 16 | 20 | 750 | 110 | 138 | 57.5 | 3.7 |
CV0402 | DN40 | 25 | 20 | 500 | 120 | 144.5 | 63 | 4.4 |
CV0502 | DN50 | 40 | 20 | 300 | 134 | 143.5 | 63 | 5.7 |
Prod Model: |
CV0503 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Voltage: |
230VAC 24VAC 110VAC |
Ways: |
2 Ways ,3 Ways |
Dn: |
15,20,25 |
Material: |
Brass |
Connection Form: |
Thread |
Channel: |
Straight Through Type |
Structure: |
Floating Ball Valve |
Type: |
Floating Ball Valve |
Application: |
Household Usage |
