Swimming pool heat pump with high efficiently compressor and R410A.
Swimming pool heat pump with reverse cycle valve.
Swimming pool heat pump with quiet operation
Swimming pool heat pump with intelligent controller and adjustments by quickmind microprocess
Swimming pool heat pump with water side equipped with coil exchanger.
Swimming pool heat pump with thermostatic expansion valve.
Swimming pool heat pump for swimming pool or SPA, or hotel, easy to installation, low noise level.

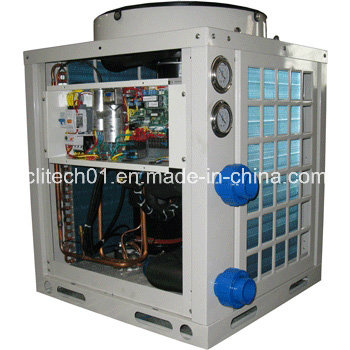

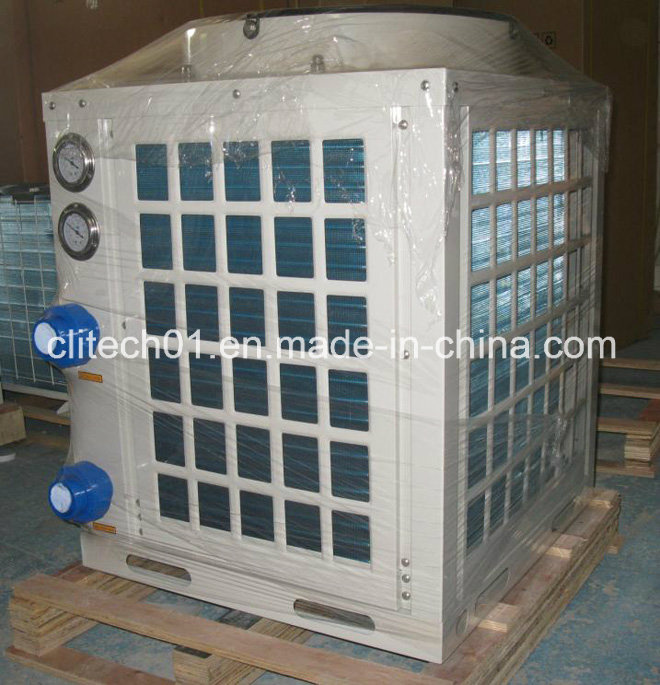

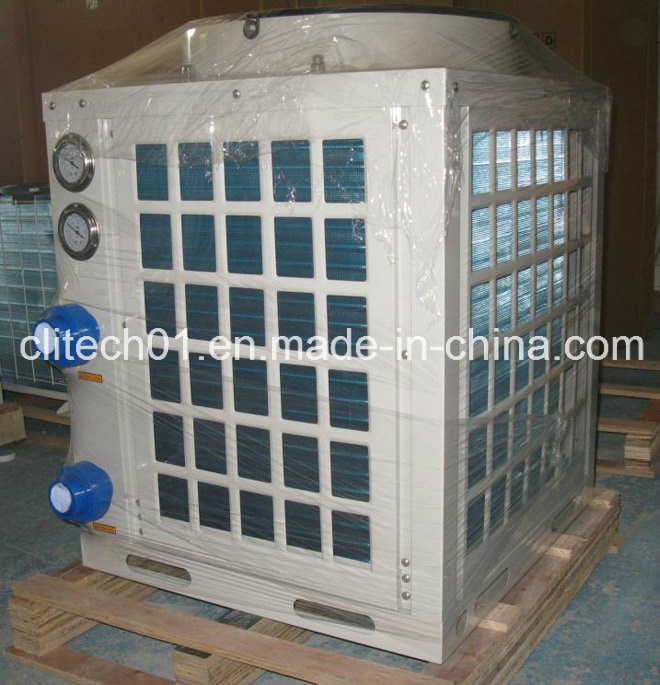

This swimming pool heat pump with 19.6KW heating capacity.
| Foshan Clitech Air-conditioning Equipment Co., Ltd(Foshan) |
| swimming pool heat pump |
| Model | unit | CAR-20GB |
| Rated heating capacity | kW | 19.6 |
| BTU/h | 5743 |
| rated input power | kW | 3.70 |
| rated running current | A | 6.70 |
| COP | kW/kW | 5.3 |
| max running current | A | 12.00 |
| power supply |
| 380V/50Hz |
| noise level | dB(A) | 53 |
| dimention | width | mm | 810 |
| depth | mm | 780 |
| height | mm | 1050 |
| unit weight | kg | 135 |
| Throttle type |
| Electronic expansion valves/thermal expansion valves |
| refrigerant | type |
| R410A |
| compressor | type |
| rotary/scroll |
| qty | piece | 1 |
| heat source side | heat exchange type |
| Efficient finned tube exchanger |
| water resistance | kW | 0.3 |
| hot water side | heat exchanger type |
| High titanium tube heat exchanger |
| water flow | m 3 /h | 4.21 |
| water pressure drop | kPa | 25 |
| connect pipe size | inch | 2 |
| water size max work pressure | kPa | 600 |
| Rated hot water working condition: air-source air inlet dry bulb temp is 24º C, wet bulb temp is 19º C Water side inlet temp is 28º C, outlet temp is 32º C |
Clitech factory established in 2008 years in foshan city, Guangdong province. Now we already developed stable and being the main export heat pump manufacture in China. Every year we will focus new technology heat pumps, and developed more good quality and more stable heat pump to our customers. Our heat pumps certificated ISO, 3C and CE, which have been sold to more than 90 countried and areas all over the world. Our good quaity, high technology and nice service is high praised by our customers.
Our main product fosuc on heat pump, which including air source hot water heat pump 5-100KW heating capacity; Air source heat pump for heating and cooling range from 8kw to 530kw; DC Inverter air source hot water heat pump 11-18KW; Ground source hot water heat pump 8-350KW heating capacity; Water source heat pump for heating and cooling range from 10KW to 290kw; High temp air source heat pump with 70 degree outlet water temp range from 12kw to 80kw; And swimming pool air source heat pump range from 8kw to 100kw, and multi-functional air source heat pump for heating, cooling and hot water from 12ke to 100kw; Multi-functional water source heat pump for heating, cooling and hot water range from 8kw to 48kw and EVI air source heat pump water heater range from 12kw to 80kw. Our heat pump can apply for small and big projects also in domestic and abroad marketing. OEM service can afford too.
Our heat pumps apply for domestic and commercial projects, hospital, office building, domestic home, factory, hotels and restaurant, swimming pools or SPA pools, holiday villages, schools or university and so on, its most for the necessary areas for heating, cooling or hot water. Our heat pumps can connect with solar, fan or floor heating. Its can save lots of energy everyday, its good for the development all over the world...Also saft in our life.
