Specifications
200X flange type water Pressure Reduce Valve
1. High Quality
2. Low Price
3. Fast Delivery.

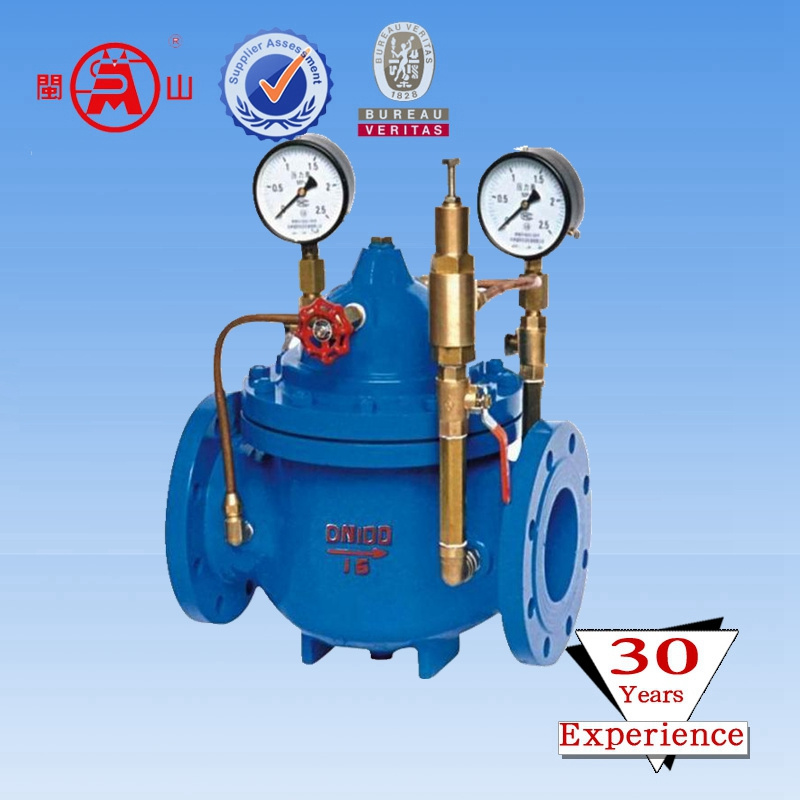

200X flange type water Pressure Reduce Valve
1. Pressure reduce valves overview
The valve maintains a preset downstream pressure, regardless of upstream pressure or flow fluctuation. The main valve is controlled by a pilot valve, which makes the main valve modulating to maintain the downstream pressure.
The main valve comprises valve body, diaphragm, stem assembly, and seat. The valve is separated by diaphragm into two chambers, up and down. The upper chamber is control chamber, and down chamber is flow through chamber. The valve stem is driven by diaphragm up and down, and driven force comes from the differential pressure taken by two sides of diaphragm.
2. Main features
The 200X pressure reducing valve is an intelligent valve that uses the self energy of the medium to regulate and control the pressure in pipes. The 200X pressure reducing valve can be used in domestic water supply, fire fighting water supply and other industrial water supply systems. The outlet pressure of the main valve can be regulated through the adjustment of the pressure reducing valve; The outlet pressure does not vary along with the inlet pressure and inlet flow. Accordingly, the outlet pressure can be safely and reliably maintained at a preset value and the preset value can be adjusted according to actual needs to obtain your pressure reducing goal. This valve is precise in pressure reduction, stable in performance, safe, reliable, easy, convenient to install and adjust and offers a long service life.
3. Advantage
1. We can promise the quality;
2. If you want, you can have your own logo on the product;
3. We offer the non-standard valve, according to customer requirments;
4. Export to maninly market: Russia/Ukraine/Belarus/Uzbekistan/Tajikistan/St. Peterburg /The European market and other countries.
Structure |
Diaphragm |
Working Temperature : |
120°C |
Working pressure |
16bar 1.6MPa |
Power |
Manual |
Tubes |
Copper |
Bolts/Nuts |
Stainless steel |
Painting: |
Deep Blue Epoxy power coating t=250μm |
Body/Cover Material |
Ductile iron |
Temperature of Media |
Normal Temperature |
Media |
Water |
Port Size |
DN 32-600 |
Place of Origin |
Hebei, China (Mainland) |
Model Number |
200X |
Brand Name |
YAXING |
Fujian Minshan Fire-Fighting Co., Ltd. Was founded in 1982. Our company is one of the largest manufacturers producing the best quality and the most complete product lines of fire equipment in Fujian Province, China. The "Minshan" brand has won numerous national awards: "Top Ten Well-Known Brand of Chinese Fire Equipment Enterprises", "Top Ten Brand Customer Satisfaction of Chinese Fire Fighting Equipment Industry", "The Most Influential Brand of Fire Fighting Industry", "Fujian Famous Trademark", "Top Ten Commercial Credit Enterprise", "Top Ten National Enterprise", etc.
Our company has been the provincial advanced company continuously developing modern industrial facilities and office buildings since 1982. Our plant covers an area of 80, 000 square meters and we have more than 600 employees in our factory and subsidiaries. Our company integrates the R&D, quality, production and market as a large-scale system. Especially, we pay great attention to R&D and quality and our company has more than 60 technical engineers handling the strong technical strength, advanced production lines and complete inspection instruments.
With more than 30 years of professional manufacture experience, our product line now extends to the series as follows:
Hydrant:
-Indoor regular and Rotary Fire Hydrant;
-Indoor and Outdoor Pressure Reducing & Steady Fire Hydrant;
-Outdoor Fire Hydrant (Landing Fire Hydrant and Underground Fire Hydrant);
-Landing Dash-against Fire Hydrant;
-Aqueous Film-Forming Foam Hydrant;
Nozzle:
-Fire Nozzle (Euro and US Fire Nozzle);
Coupling:
-Fire Coupling (Fire Hose, Screw, Reducing Coupling);
Hose:
-Lined Fire Hose;
-Fire Hose Reel;
Adaptor:
-Fire Pump Adaptor (Types Include Landing, Underground, Sidewall, Multipurpose);
Cabinet Set:
-Fire Hydrant Cabinet;
-Fire Extinguishing Cabinet;
Automatic Series:
-Automatic Fire Extinguishing System (all series of fire, early suppression fast response, extended coverage and window sprinkler; Water curtain and water mist nozzle; Wet valve, dry and deluge alarm valve, signals gate valve, butterfly valve, globe valve; Pre-action system, water flow detector, fire pressure switch, etc. );
-Gas Automatic Fire Extinguishing System
-Fire Alarm Buttons and Escape Device Series, etc.
Today, our domestic market covers over 20 provinces in China and our products sell in many foreign areas like South Asia, the Middle East and North America. The annual production capacity is over 900, 000 sets. We implement our quality management system strictly for our every single product and conduct the following national standards: China Compulsory Product Certification (CCC Certificate) by CCCF and Certificate of Product Type Approval by Ministry of Public Security of People's Republic of China. We have passed ISO9001 certification and can meet many specified standard requirements from the worldwide markets.
We wish to cooperate with friends from all over the world to make a better future together!
