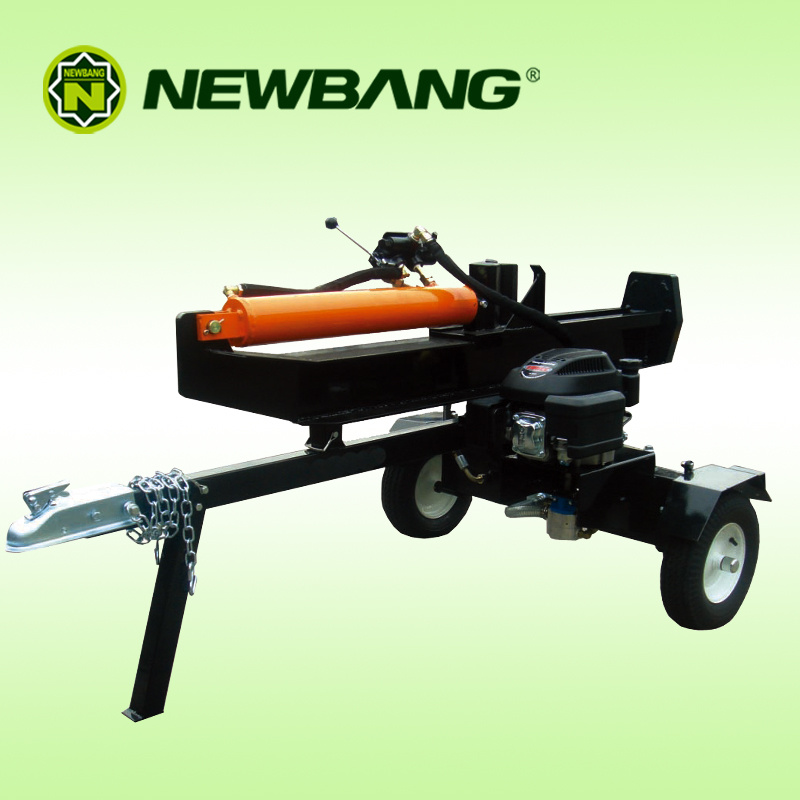

Pedal Log Splitter Model: LS-20T
1. 20 tons splitting force
2. Operation at horizontal position only
3. Gasoline engine: 6.5HP, 8GPM, 2 stage gear pump
4. Auto return valve
5. Hitch tongue for easy to tow behind the ATV or tractor
6. 3500PSI Max. Pressure
7. Splits up to 26"(660mm) long and 12" (300mm) diameter
8. 25-Second cycle time
We can supply the high quality foot pedal log splitter, manual log splitter, electric log splitters, gasoline log splitters and diesel log splitter.
Specifications:
Model No. | LS-20 |
Capacity | 20 Ton |
Operation at horizontal position only |
Engine | 6.5HP, 8GPSM, 2stage gear pump |
3500PSI max. pressure |
Cylinder | 4-3/8' ' *24' ' (110*610MM) |
Splits up to 26' ' (660mm) long and 12' ' (300mm) diameter |
Hardsteel wedge | 7' ' (180mm) |
25-second cycle time |
Pneumatic wheel | 16' ' (4.80/4.00-8)d. o. t. for highway hauline |
Coupler size | 2' ' ball for easy towing |
Oil capacity | 12.5L |
Max. towing speed | 30MPH |
accessories | Cross wedge |
Package size | 75.2' ' *22.05' ' *27.95' ' /191*56*71CM |
G. W. | 515.42LB/234KGS |
N. W. | 440.53LB/200KGS |
40' container | 63pcs |
Yancheng Newbang Machinery Co., Ltd. Located in yancheng city, Jiangsu, China is a professional manufacturer and exporter of tractor and agriculture machine. Newbang company focus on improvement of quality control system and scientific management. Under control ISO 9001: 2000, now our many product carry CE, EPA. Now our products are exported to the American, Europe, Australian, South American, South African, the Middle East and Southeast Asian markets. Obviously, we have built long term business relationships with customers from all over the world.
Our products range: Rotary tiller, backhoe, mower, post hole digger, wood chipper, log splitter, box blade with rippers and so on (30 series and more than 200 models).
We believe that Quality products, Excellent Service, Competitive price and Prompt delivery can satisfy your requirement.
For more detailed information, pls view our website, If you are interested in any of our products, pls feel free to contact us for more information, we will try our best to meet your requirements for mutual and long-term benefits.
