Compressor parts --- solenoid valve

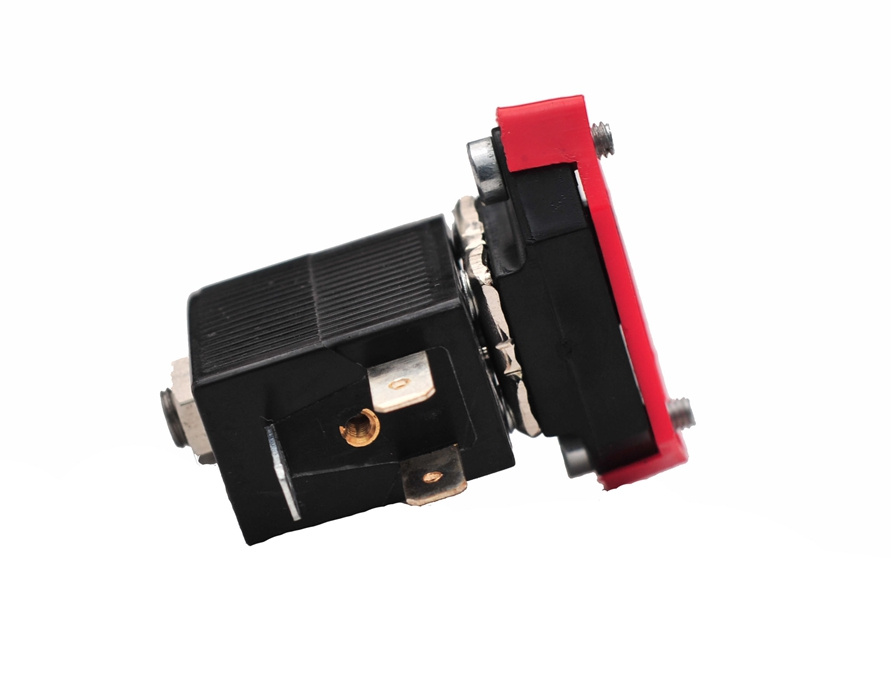

220V solenoid valve atlas copco air compressor part
Products Name: solenoid valve
Apply : Screw air compressor
Part number: 2200599753/1089062157
| Characteristic | 1.Pilot operated diaphragm structure with less power comsumption for long time working |
| 2.Applied to pressure system opened from 0.03 Mpa |
| 3.Life span can be over 1 million times |
| Medium | Air, water etc. |
| Temperature | NBR:-10°C to 80 °C |
| EPDM:-10°C to 120 °C |
| VITON:-10°C to 150 °C |
| Pressure | 0.03-1.6Mpa |
| Port size | 3/8'-1' |
| Port thread | G.BSPT,BSP,NPT,PT |
| Orifice | 12,15,20,25mm |
| Voltage | DC-12V,24V |
| AC-24V,120V,240V/60HZ,110V,220V/50HZ |
| Tolerance | ±10% |
| Coils | SA11B,9VA(AC),6W(DC) IP 65,100% ED |
| S91B,22VA(AC),17W(DC) IP65,100% ED |
| Special coils | Latching coil:DC6-24V as requested |
| Material | Body- brass or stainless steel |
| Seal- NBR,EPDM,VITON |
| Amature tube-stainless steel 304 |
| Plunger-stainless steel430F |
| Stop-stainless steel 430F |
| Springs-SS304 |
| Shading rings- stainless steel 304 |
| Business scope |
Mechanical Seal :
| Temperature Sensor | Pressure Sensor
|
| Maintenance Kits | Solenoid Valve | Thermostatic Valve
|
| Air intake | Wheel Gear
| Pressure Maintaining Valve |
| Air Filter | Oil Separator | Oil Filter
|
| Oil Level Indicator | Circuit Board Master Control | Air intake valve |
| Used air compressor | Air-end | Oil level indicator |
Company Profile-----Jiubei
Jiubei Industry Co., Ltd was established in 2000. We are a Hi-Techcompany .
specialized in research, development, manufacture and distribution of Air compressor spare parts.
Expect produceing air compressor replacement spare parts , we also supply the maintemance of air compressor ,
We have a very professional air compressor maintenance team, They service for most of our local factory and
has a wealth of experience on air compressor .
If you have any problems of air compressor, expect the compressor spare parts , we also could supply the maintenance
advise for free, Try our best to help you solve your problems.
All the compressor parts have a warranty for at least half a year.
Full quotation as your required will be reply in within 24 hours.
Service 24 hours a day, 7 days a week.
Accept specific order and special requirement.
Could provide free maintenance advise for your compressor
|
| Main type | Screw air compressor | Oil-free Compressor |
| Piston air compressor | Protable air compressor |
|
| Main brand: | Atlas Copco | Liutech |
| Sullair | Hitachi |
| Fusheng | Kaeser |
| Boge | compare |
|
| Main products: | Air intake Valve | Thermostat Valve |
| Solenoid Valve | Blow off Valve |
| Drain Valve | Minimum Pressure Valve |
| Temperature Sensor | Pressure Sensor |
| Unloading Valve Kits | Stop Oil Valve Kits |
| Check Valve kits | Oil-free Service Kits |
| Controller | Gear Wheel |
| Coupling | Hose & Elbow |
| Air Filter | Oil Filter |
| Oil Separator | Oil Level Indicator |
| Air-end | Used Air Compressor |
Package each product as international packaging standard.
Your design package request also acceptable
Controller Panel P.N
1900070001 1900070003 1900070004 1900070005 1900070007 1900070008
1900071101 1900071102 1900071103 1900071001 1900071011 1900071012
1900071002 1900071281 1900071292 1900071031 1900071032 1900520012
1900520011 1900520001 1900070105 1900071001 1900071011 1900071012
1900071002 1900071281 1900071292 1900071031 1900071032 1900070125
1900070122 1900070102 1900070103 23009848 39825815 92948884
39842786 22136444 23748593
Gear Set P.N
1622002300/2400 1622002500/2600 1622002700/2800 1622003500/3600
1622311067 & 1622311068 1622311025 & 1622311026 1622311027/28
1622311029/30 1622311033/34 1622311035/36 1622311037 1622311041/42
1622311043/44 1622311045/46 1622311049/50 1622311053/54 1622311055/56 /1622311059/60 1622311063/64 1622311065/66 1614933000/1614933100
1614930000/1614930100 1614930800/0900 1614931000/1100 1614931200/1300/ 1614932200/2300 1614932400/2500 1614932600/2700 1614933000/3100
1614933200/3300 1614933600/3700 1614933400/ 1614933500 1622077023/24
1622077027/28 1613965000/5100 1613817400/818000 161389800/8100
1613898200/8300
Pressure Sensor P.N
1089958001 1089057511 1089057551 1089057541 1089057533 1089057573
1089057565 1089057535 1089057574 1089057564 1089057544 1089057578
1089057528 1089057520 1089057530 1089057554 1089057543 39413307
39428305 39875539 39877618 39929435 39853791 39853809 42852483
39883186 39921713 39853775 39853775 39853783 39875539
Cooler P.N
1613830901 1621700202 1621700302 39893003 54365945 1202973900
1613782202 1613782203
Air Filter P.N
1621054699 /1621574300 / 1614874700 /1613610500 /16147273 00/1622314200 /162365200 /1621054699 /1621574300/1621054700/ 1621574200/1030097900/2906009200/2914931000/1613800400/1613740700/2914930600/2903101200/2903101200......
Oil Filter P.N
1202626301/1202626301/1202626302/1202626203/1202626204/1202627302
1617703909/1617704111/1617704203/1617704201/1617704303/1617704301
1617704305/1617704104/2900058200/1619622700/2901196100/2901196300
89295976/42855429/42888214/39588470/39588777/99273906/39750732
Oil Separator P.N
2901194402/ 1622035101/1613901400/1612386900/1613750200/1622007900
1622051600/1613243300/1613688000/1613839700/1613839702/1622314000
2252631300/1614905400/1614642300/1622365600/54595442/39831888
39751391/92754688/39894597/42841247/39863865/39890660
Repair Kit PN
2901050300/2901021200/2901007700/2901050301/2901006800/1613235600
1619733300/1622375980/2901146400/1622375981/2901021100/1613814482
1613814400/250018-262/250019-444/250018-456/250018-262/2250116-697
Orther Valve P.N
1089062110/ 1089070202/1619733300/1619756000/ 1622369480/ 1202586903/
81335509/ 250017-280/ 22516025/ 22516025/ 39312905 /250038-666/250038-755/8829009-775/88290001-006/ 88290006-775/39141944
Hongkong Jiubei Industry Limited was established in 2000, located in Dongguan city Changan town - "China National Machinery and Hardware Mold town".
We are a Hi-Tech company specialized in research, development, manufacture and distribution of Air compressor spare parts. We provide used air compressor, used air compressor airend, air compressor valves, air compressor controllers, air compressor service kits, air compressor filters, air compressor coolers and so son, With our rich experience, professional technology and rigorous quality control, our products has been widely used in various brand air compressors, such as Atlas Copco, Hitachi, Sullair, Kobelco, Fusheng with good feedback and continuous orders from more than 2, 000 customers in domestic and oversea market.
Sticking on the principle of "Super quality, satisfactory service", we are striving hard to build the most complete variety platform of air compressors spares parts in China.
