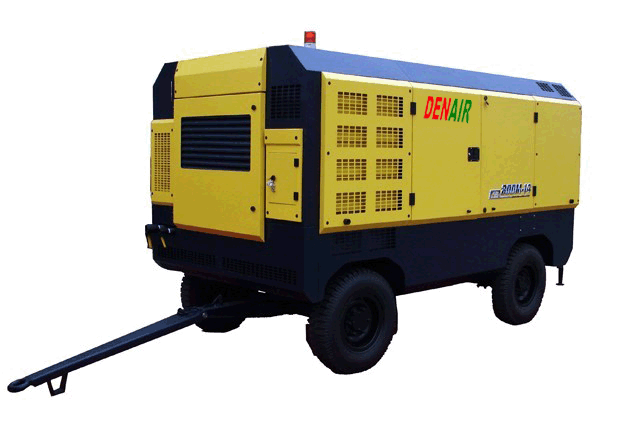

264kw Diesel Engine Driven Air compressor
1. Famous brand Cummins Diesel Engine
2. Imported German Screw Air End
3. Light weight and compact design, easy to transport
4. All control instruments are on the same side of machine, easy to operation.
5. Competitive price in the world
---High reliability, good adaptability
Configuration of Dongfeng Cummins diesel engine, the latest displacement and power of the reasonable adjustment, which can meet the most severe overloading use and Harsh environment of the field and lowering the fuel consumption and the operation cost.
---Easy operation and maintenance
Various instruments and security system configuration and the operation panel for valve, all of them are on the same side of the machine, easy operation. All more lights state clearly and also equipped with automatic stop and alarm lamp.
---Humanized design
Suit different traction equipment
Lift stem greatly reduce assignment strength
Handle and feet are convenient maintenance
---Appearance and corrosion resistance
The shutter was covered; Make the equipment has better ventilation cooling and beautiful appearance.
|
Model |
DACY-25.5/20 |
|
Air compressor |
style |
|
Screw compressor oil cooled |
|
Air delivery |
m3/min |
25.5 |
|
Working pressure |
bar |
20 |
|
Drive way |
|
Coupling direct connection Diesel driven |
|
Oil and gas storage capacity |
L |
173 |
|
Lubrication oil capacity |
L |
137 |
|
Engine |
Manufactory |
|
Cummins |
|
Model No. |
|
6LTAA8.9 |
|
Style |
|
Water-cooling four-cycle, direct spray |
|
Numbers of cylinders |
|
6 |
|
Cylinder diameter |
mm |
114 |
|
stoke |
mm |
145 |
|
Rated Power |
kw |
264 |
|
rated speed |
rpm |
2200 |
|
no-load speed |
rpm |
1400 |
|
Lube capacity |
L |
24 |
|
cooling capacity |
L |
55 |
|
Storage battery |
|
6-QW-200Ah× 2 |
|
Fuel tank capacity |
L |
380 |
|
Unit |
Length (whole machine) |
mm |
4300 |
|
Width |
mm |
2100 |
|
Height |
mm |
2700 |
|
N. W |
Kg |
5500 |
|
vent valve exit |
|
1-G2" , 1-G1" |
