Ordering Code:
2P - 025 - 06 - AC110V - W

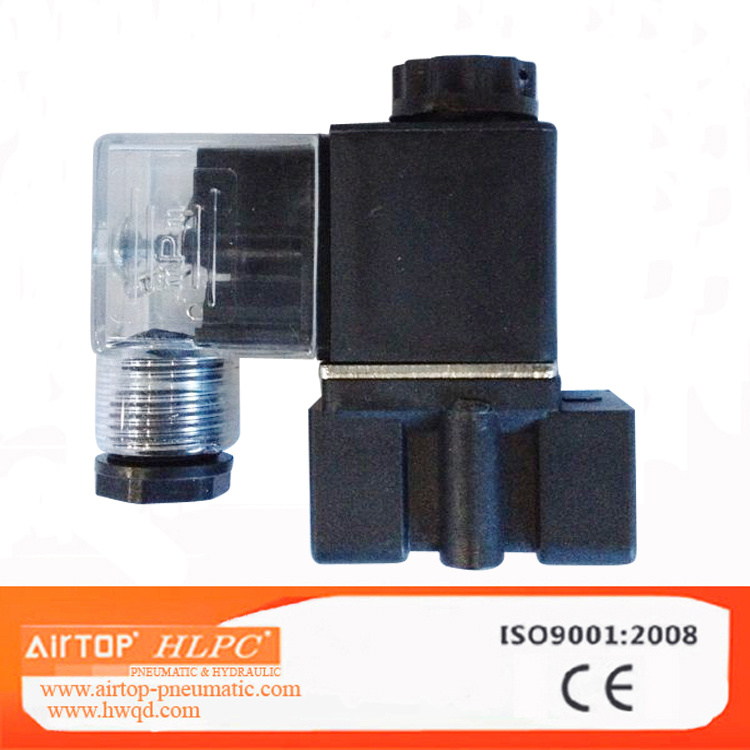

2P: Specification Code 2P: Two position two way solenoid valve (Reinforced plastic steel type);
025: Aperture of Flow Rate 025: 2.5mm;
06: Joint Pipe Bore 06: G1/8 08: G1/4;
AC110V: Standard Voltage DC12V DC24V AC24V 50HZ/60HZ AC36V 50HZ/60HZ AC110V 50HZ/60HZ AC220V 50HZ/60HZ AC380V 50HZ/60HZ;
Model: 2P025-06 2P025-08 2P025-06A 2P025-08A;
Working Medium: Air, Water, Oil;
Motion Pattern: Direct Drive Type
Type: Normal Close Type;
Aperture of Flow Rate (mm): 2.5;
CV Value: 0.23;
Joint Pipe Bore: G1/8 G1/4;
Operation Fluid Viscosity: 20CST (Below);
Working pressure: 0~0.7MPa;
Max. Pressure Resistance: 1.05MPa;
Operating temperature range: -5~+80º C;
Voltage Range: ± 10%;
Power Consumption: AC: 7VA/60HZ, 9VA/50HZ, DC: 6W AC: 5VA/50HZ, DC: 5.5W;
Material of body: Engineering Plastic;
Material of Oil Seal: NBR, EPDM or VITON.
Ningbo AirTOP Pneumatic Hydraulic Co., Ltd.(AirTOP) specializes in manufacturing pneumatic and hydraulic components, including pneumatic cylinders, solenoid valves, directional valves, mechanical valves, FRL units, pneumatic fittings, PU tubes, air guns, power chuck, hydraulic cylinders, standard jaw etc.
Our factory - Hongwei Pneumatic & Hydraulic Kit Factory (HLPC) was established in 1988.Over twenty years' manufacturing experience in pneumatic and hydraulic field laid solid foundation for excellent quality.ISO9001:2008 Quality System and CE Certifications ensure every component to be precise, accurate and durable.
AirTOP has imported advanced CNC machines from Germany and Japan and we also have die-casting machines, injection machines, advanced computer testing machines, ultrasonic washing machines etc.Seals are from American Parker, Japan and Germany, pursing excellent quality and developing various products for global market.
Today, AirTOP has developed a complete sales network and after-sales services and has steady customer groups in the international market.AirTOP pneumatic products are favored especially by customers in Europe, North and South America, the Middle East and Southeast Asia.
"Quality Reliable, Credit First, Customers Uppermost" is AirTOP's persistent and permanent pursuit.AirTOP will continuously provide our customers with the highest quality/price rate products and the best service, supporting our agents grow in this competitive world with the most favorable terms and making our end-users satisfied and assured by using our products.AirTOP sincerely hopes that we can keep up with the times of the development paces of pneumatic industry and world automation, continuously pursuing excellent quality and developing new products for our customers in the world automation industry.
