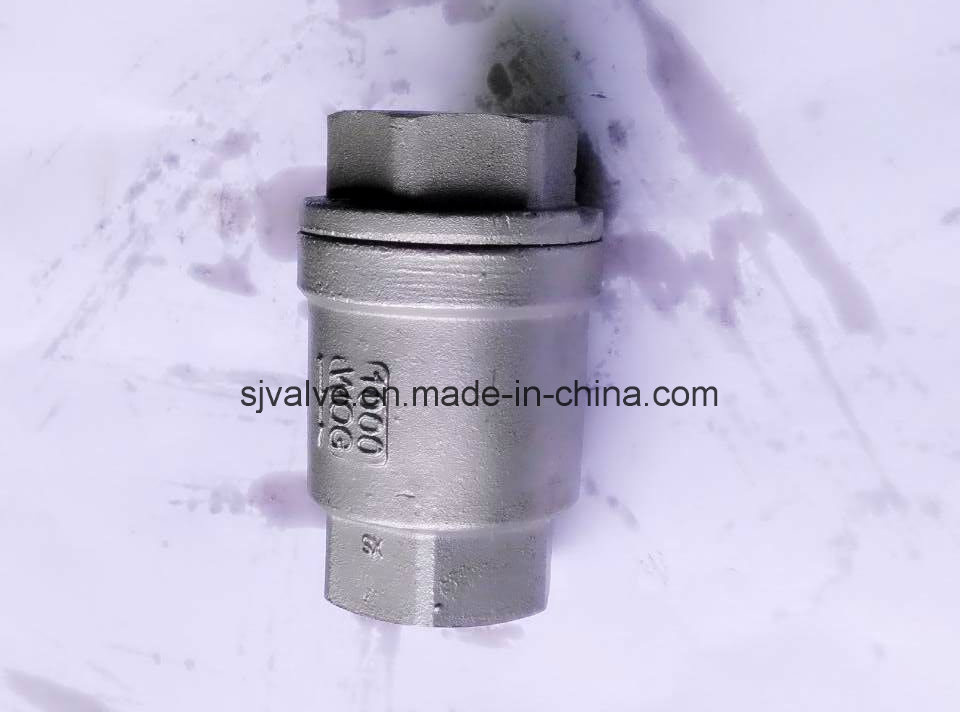

name | 2pc spring female thread check valve 1000WOG |
| Design | spring check |
| Material of construction | investment casting |
| Material | SS304/SS316/SS201/WCB |
| Working pressure | 1000PSI |
| Size range | 1/2"--4" |
| End Connection | BSP/BSPT/NPT/DIN2999/DIN259 Threaded |
| Mode of operation | Manual |
|
| Specification |
| Nominal pressure | PN1.6,2.5,4.0,6.4M.pa |
| Strength testing pressure | PT:2.4,3.8,6.0,9.6M.pa |
| Seat testing pressure(hight pressure) | 1.8,2.8,4.4,7.1Mpa |
| Applicable media | water oil gasNitric acid Acetic acid |
| Applicable temperature | -20ºCto200ºC |
| Product standard | ASME B16.34 |
| Wall thickness standard | ASME B16.34 GB12224 |
| Thread standard | ANSI B 1.20.1,BS 21/2779,DIN259/2999,ISO228 BSPT BSPP NPT |
| Inspection standard | API598 EN12266 |
| Product certification | PED 97/23/EC(CE2138) ISO900 |

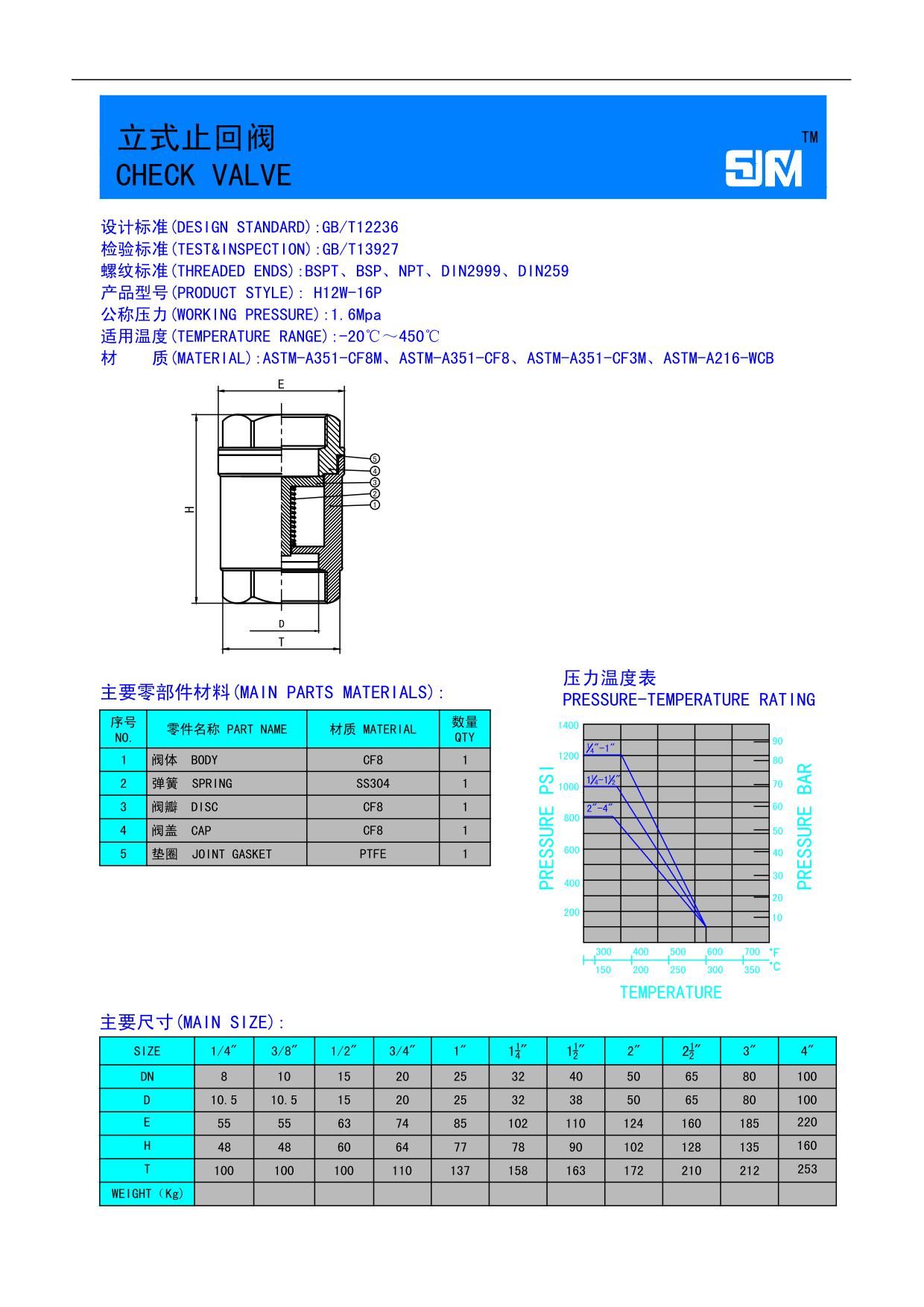

Material of product's parts |
| NO | DESCRIPTION | MATERIAL |
| 1 | BODY | CF8M | CF8 | WCB |
| 2 | BONNET | CF8M | CF8 | WCB |
| 3 | DISC | CF8M | CF8 | WCB |
| 4 | SEALRING | PTFE/RPTFE |
| 5 | PACKING | PTFE/RPTFE |
1,quality is superiorand price is reasonable
2,well done !perfect after service
3, monthly output: 400, 000.00 set/month
4, Payment term: L/C or T/T
5, Delivery time: 30-45 days after received the deposit.
6, Package detail: Inner CTN, ourside ply-wooden case
choose me
1, We are according to the requirements of customer to print logo
2, our products are well received both at home and abroad
3,Please be assured the quality is passed the CE certification
4,If you need we will meet all the demands
5. We are manufacturer
6,We will be answer within 24 hours, glad to contact with us if you have any problems, We are looking forward to cooperating with you.
Zhejiang WOD Valve Co., Ltd. Was founded in 2008. WOD company is a diversified manufacturer. It deals with research, design, manufacture, sales, import and export autonomy, self customs clearance
It is located in China Valve City---Wenzhou Economic and Technological Development Zone, Zhejiang Province, it is about 5 minutes away from Yongqiang Airport, and half an hour from Wenzhou Train Station. Ningbo Port and Shanghai Port are very close to our factory.
WOD Company mainly produces medium and low pressure valves, Such as ball valve, gate valve, globe valve, check valve, strainer, cam lock coupling, manhole cover, water equipment etc. The material has ASTM 304, 316, WCB, etc. Products' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. WOD series products are widely used in oil, gas, chemical, electric power, metallurgy, lifting, water supply, auto ship manufacturing oil-water road heating system control, food, pharmaceutical, daily chemical industry, municipal construction, mechanical equipment, etc.
WOD company has obtained CE, ISO9001 certifications, also been inspected and approved by SGS, TUV
Our production spirit and service concept is "Innovation, Serves attentively ". Welcoming customers from all over the world come to visit WOD company and attend technical exchange
